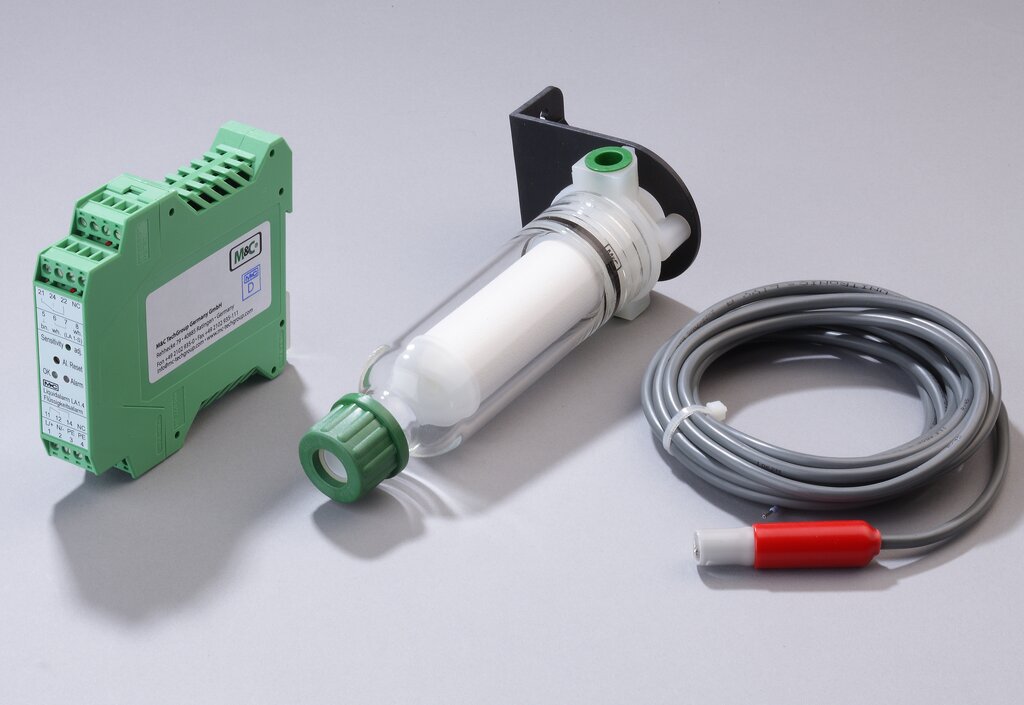

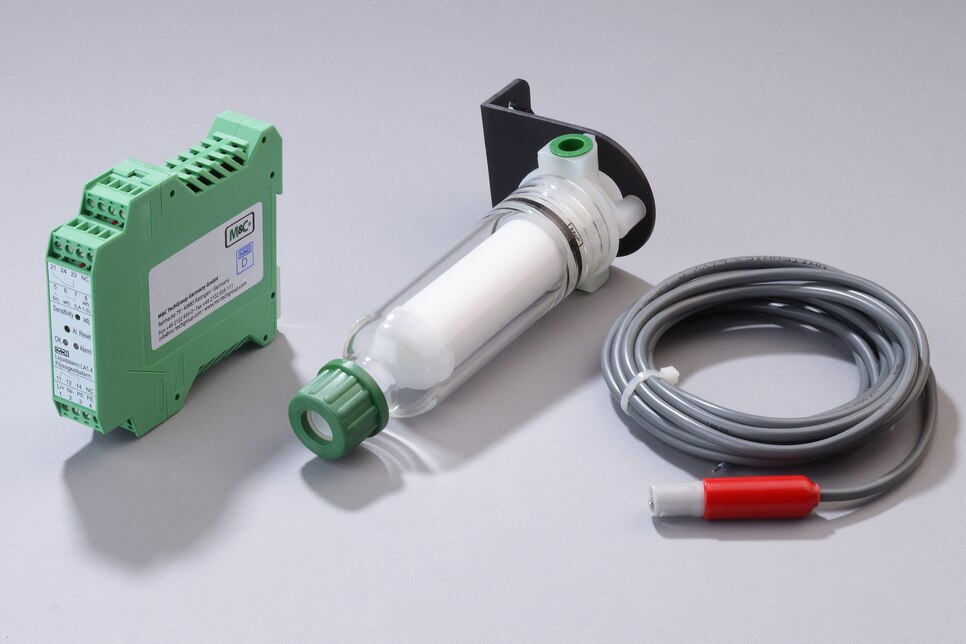

Universal Filter FP-2T incl. LA1S + Electronic Controller LA1.4

Part No.: 02F3001

Product features

  • Set consisting of filter with condensate outlet, liquid alarm sensor LA1S and electronic controller LA1.4
  • Filter head made of PVDF with 3 female G 1/4" threaded gas connections
  • Filter including wall-mounting bracket
  • Deep-acting filter element made of PTFE with a filter porosity of 2 µm
  • Condensate outlet with compression tube fitting for attaching liquid alarm sensor
  • Liquid alarm sensor LA1S for conductive media, line-break monitoring included
  • Connection of liquid alarm sensor: 4 m electrical cable to connect the electronic controller
  • Electronic controller LA1.4 in a rail‑mounting housing with LEDs for displaying operational and fault status
  • Power: 230 V
  • Sample gas and ambient temperature: max. +80 °C [+176 °F]
  • Material of sample-contacting parts: PTFE, PVDF, Viton®, glass, platinum

Product information & downloads

Data sheet
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    Material: PVDF, glass, with different filter materials and porosities, with and without condensate connection, also completely with liquid alarm for conductive media

  • Applications
    M&C universal filters reliably separate solids, in particular extremely fine particles, occurring in analytical technology in gas filtration, using very fine, deep-acting filter elements. Thanks to their universal design, the filters can also be used as separators (without a filter element), liquid filters or, with adsorption cartridges, as an adsorption filter. For ambient or medium temperatures of up to 180 °C, a stainless steel version FSS or the FT-H version can be offered.
  • Description
    Universal filter type FP‑2T/LA1.4, with liquid alarm sensor type LA1S for conductive media and electronic controller type LA1.4 in a rail‑mount enclosure, PTFE filter element, filter porosity: 2 µm, connection: G 1/4" female, material: PVDF, Viton®, glass, platinum, PTFE, power: 230 V/50 Hz
  • Product features
    Type Universal
    Housing material PVDF/glass
    Filter material PTFE
    Power supply 220‒240 V
