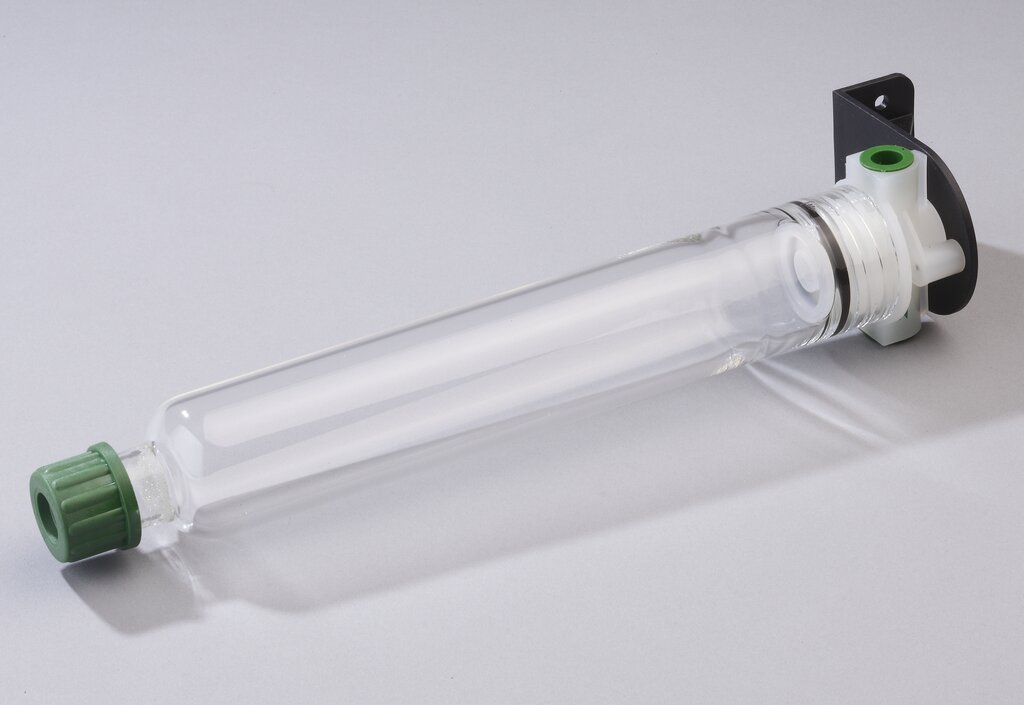

Universal Adsorption Filter FP-240-D/F

Part No.: 03F5600

Product features

  • Universal filter for holding adsorbents
  • With filter head made of PVDF and an approx. 200 mm long filter body
  • With pre-filter near the GL glass connection to hold the filling
  • Easy change of filling materials
  • Condition of filling material visible from outside
  • With wall-mounting bracket
  • Gas inlet in the filter body: GL 25-6 mm
  • Gas outlets in the filter head: 3 female threaded G 1/4" connections
  • Material of sample-contacting parts: PVDF, Viton®, glass, PTFE

Product information & downloads

Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Applications
    In analytical technology M&C FP-...-D/F and F...-AP universal filters are used for the adsorption of interfering components.
  • Product features
    Type Adsorption
    Housing material PVDF/glass
    Filter material Selectable
    Condensate outlet Yes
    Power supply Without

Options & spare parts
Universal Adsorption Filter FP-240-D/F

Here you get an overview of suitable options & spare parts

Product options
Spare parts

Spare parts
Universal Adsorption Filter FP-240-D/F

Options
Universal Adsorption Filter FP-240-D/F

Configure the product in 4 steps
