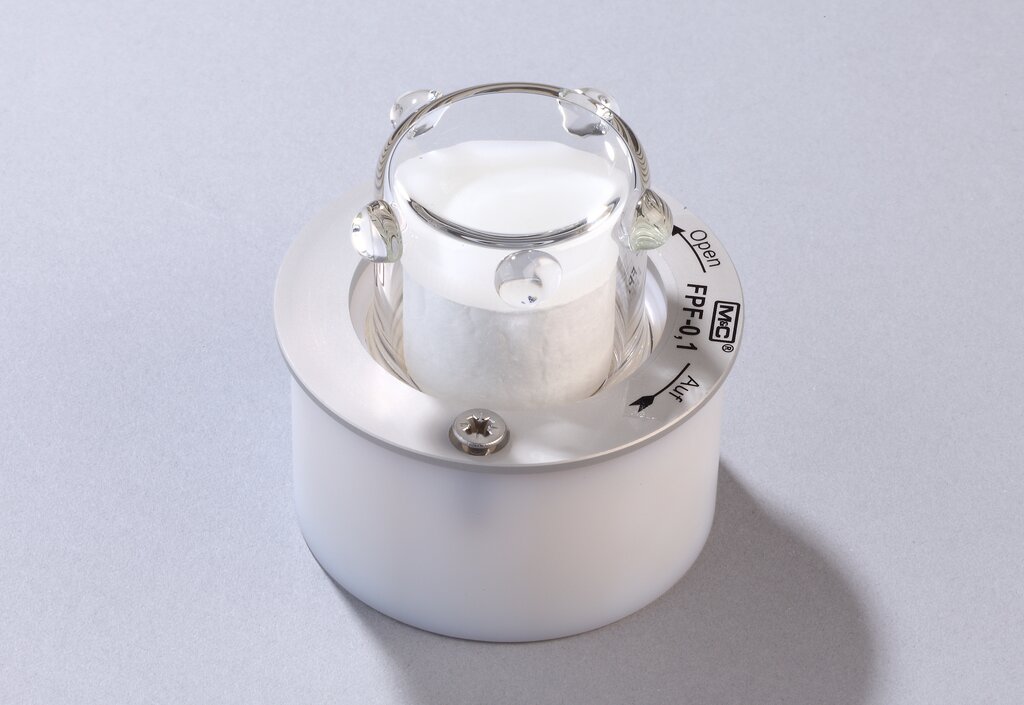

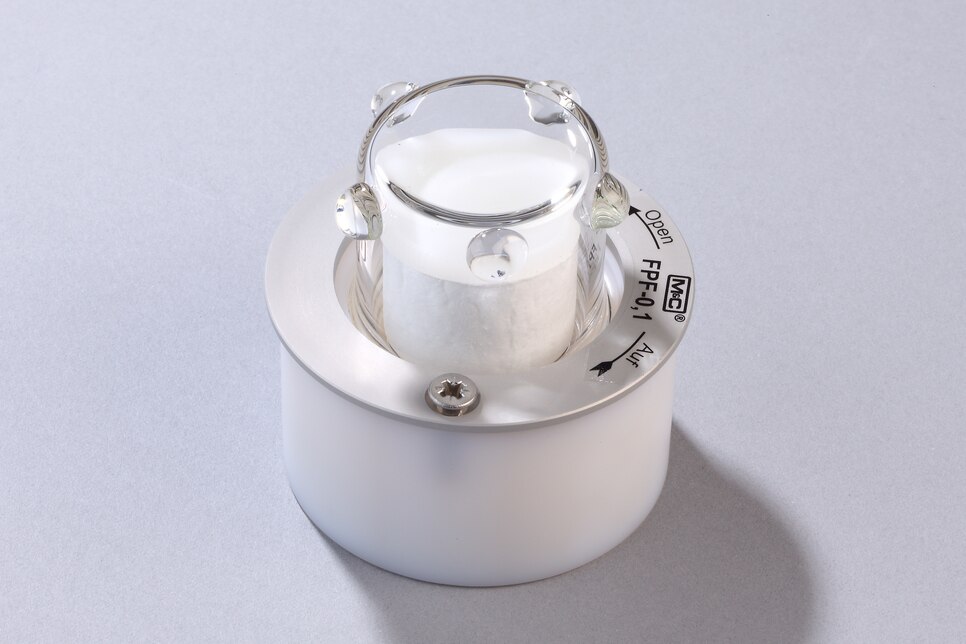

Front-Panel Mounting Filter FPF-0,1GF
Part No.: 04F1000
Product features
Flat filter with ultra-fine glass-fiber filter element for front-panel mounting
Filter porosity: 0.1 µm
With filter head made of PTFE
Straightforward filter element change without tools
Low dead volume
For universal use
Female threaded gas connections: G 1/8"
Sample gas and ambient temperature: max. +80 °C [+176 °F]
Material of sample-contacting parts: glass-fiber, PVDF, PTFE, glass, Viton®
The M&C front-panel mounted ultrafine filters reliably separate solids, in particular very fine particles, occurring in analytical technology in gas filtration, using very fine, deep-acting filter elements. The large filter surface of the cylindrical filter element guarantees reliable ultrafine filtration and a long service life with low pressure loss. The 19 front-plate mounting equipment requires flat-design devices for which the FPF-0,1GF ultrafine filter has primarily been developed."
