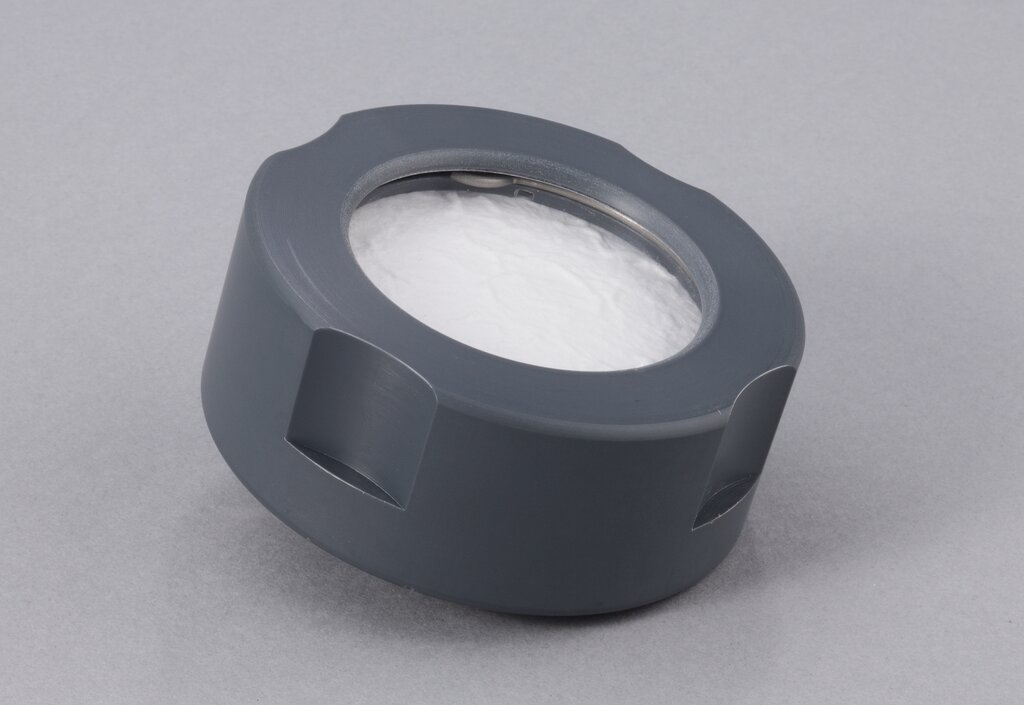

Front-Panel Mounting Filter FPF-2-0,3GF

Part No.: 04F2000

Product features

  • Flat filter with a round ultra-fine glass-fiber filter for front-panel mounting
  • Filter porosity: 0.3 µm
  • With liquid alarm sensor
  • Straightforward filter element change without tools
  • Low dead volume
  • For universal use
  • Female thread connections: G 1/8"
  • Sample gas and ambient temperature: max. +45 °C [+113 °F]
  • Material of sample-contacting parts: PVC, acrylic glass, Viton®

Product information & downloads

Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Applications
    The M&C front-panel mounted ultrafine filters reliably separate solids, in particular very fine particles, occurring in analytical technology in gas filtration, using very fine, deep-acting filter elements. The large filter surface of the cylindrical filter element guarantees reliable ultrafine filtration and a long service life with low pressure loss. The 19 front-plate mounting equipment requires flat-design devices for which the FPF-0,1GF ultrafine filter has primarily been developed."
  • Product features
    Type Front-panel mounting
    Housing material PVC/glass
    Filter material Fiber glass
    Condensate outlet No
    Power supply Without
