Part No.: 01K1100X

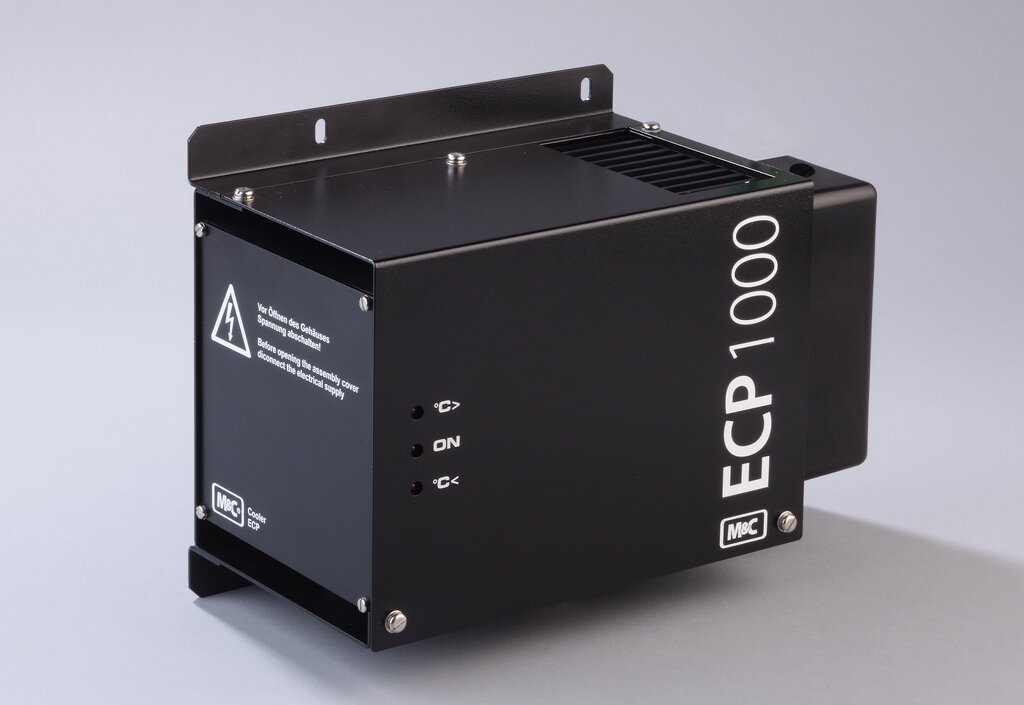

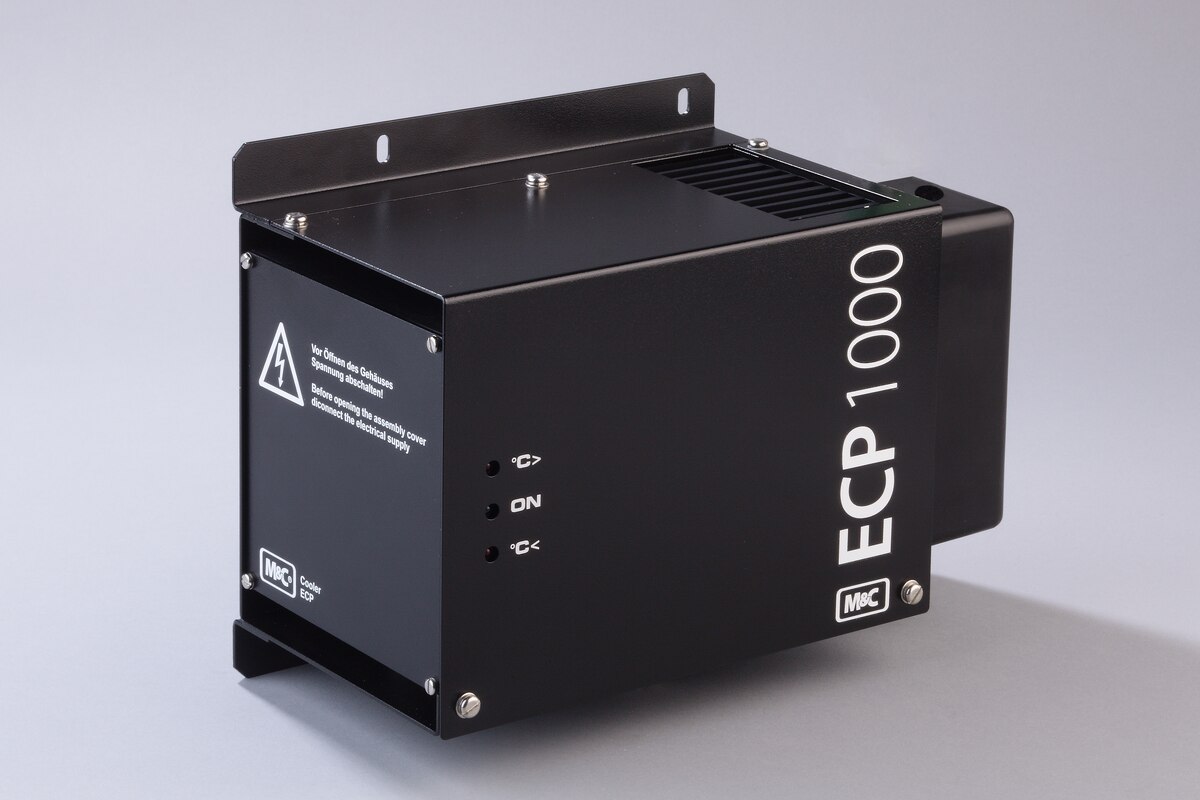

Peltier Gas Cooler ECP1000, Ambient Temp. 50 °C

Product features

  • Peltier gas cooler for 1 Jet-Stream heat exchanger with a gas flow rate of max. 150 Nl/h
  • Adjustable gas outlet dew point with a stability of < ±0.1 °C [±0.18 °F] at constant conditions
  • With a total cooling capacity of 50 kJ/h at +25 °C [+77 °F] ambient temperature
  • Ambient temperature up to +50 °C [+122 °F]
  • With status alarm contact
  • Compact and lightweight design
  • Power: 115/230 V switchable
  • Optionally: 1 Jet-Stream heat exchanger
Configure now
Product options
Spare parts
Request a quote

Spare parts
Peltier Gas Cooler ECP1000, Ambient Temp. 50 °C

Options
Peltier Gas Cooler ECP1000, Ambient Temp. 50 °C

Product information & downloads

Manual 2 MB
Data sheet 496 KB
CE Certificate 247 KB
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

One gas path, max. flow: 150 Nl/h, different materials of heat exchangers, power: 115/230 V, 60/50 Hz

The ECP 1000 gas cooler is used in gas analysis technology to lower the dew point of humid gases to avoid condensation in the analyzer. An extremly stable gas dew point prevents water vapor cross-sensitivity and volumetric errors.
Electric gas cooler type ECP1000/50 °C with Peltier element, electronically regulated to +5 °C, high/low‑temperature alarm with 2 changeover contacts, without heat exchanger, power: 230 V/50 Hz or 115 V/60 Hz to switch over
Explosion-proof No
Cooling Peltier
Temperature > 2 °C [> 28.4 °F]
Gas paths 1
Flow rate/gas path 150 Nl/h
Material Selectable
Power supply 110‒120 V 220‒240 V
