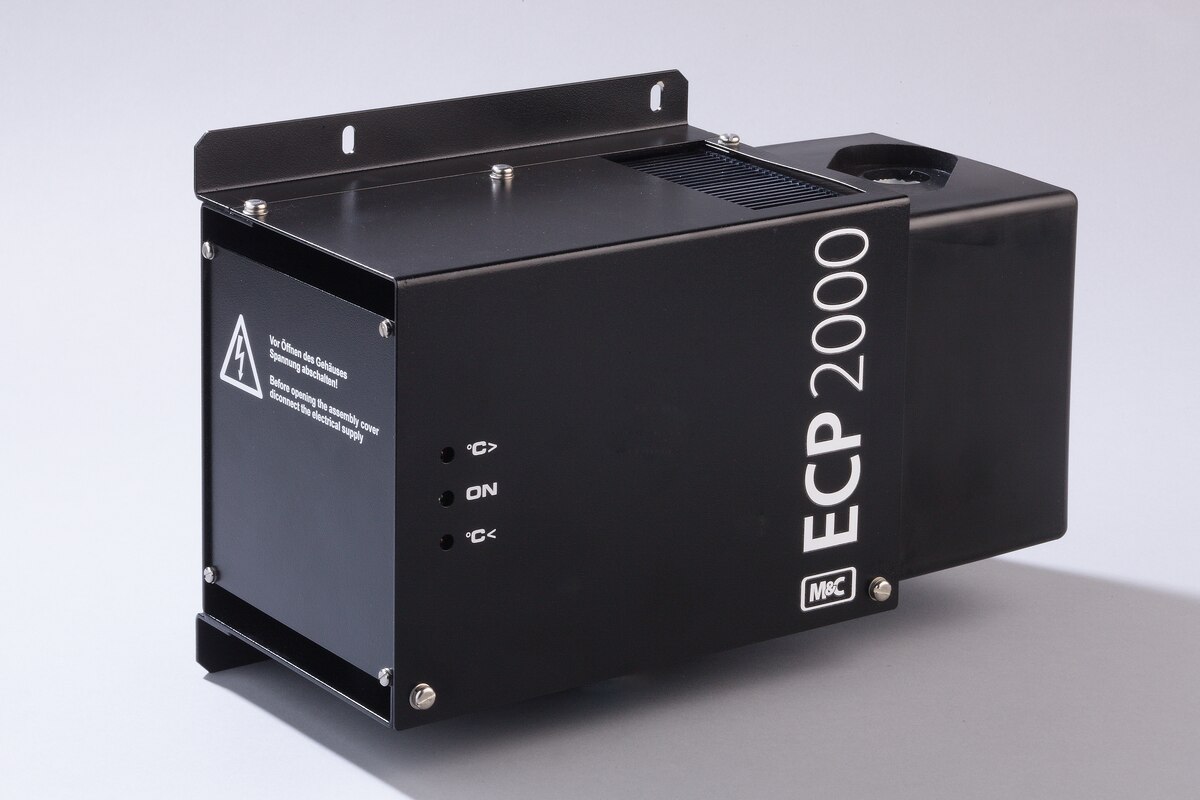

Peltier Gas Cooler ECP2000

Part No.: 01K2100X

Product features

  • Peltier gas cooler for 2 Jet-Stream heat exchangers with a gas flow rate of max. 2 x 150 Nl/h
  • Adjustable gas outlet dew point with a stability of < ±0.1 °C [±0.18 °F] at constant conditions
  • With a total cooling capacity of 90 kJ/h at +25 °C [+77 °F] ambient temperature
  • Ambient temperature up to +50 °C [+122 °F]
  • With status alarm contact
  • Compact and lightweight design
  • Power: 115/230 V switchable
  • Optionally: 2 Jet-Stream heat exchangers

Product information & downloads

Spare parts
Peltier Gas Cooler ECP2000

Fan ECP 1000, 2000, 3000, 12 V
Part No.: 93K0010

ECP 1000, 2000, 3000 fan

ECP1000G, heat exchanger
Part No.: 93K0100

Jet‑stream heat exchanger, type ECP1000G, material: Duran glass, connections: sample gas: GL18‑6/6mm, condensate: GL 25‑12 mm

ECP1000G, heat exchanger, 90°
Part No.: 93K0130

Jet‑stream heat exchanger type ECP‑1000G 90°, material: Duran glass, connections: sample gas GL 18‑6 mm, condensate GL 25‑12 mm

ECP1000SS, heat exchanger
Part No.: 93K0110

Jet‑stream heat exchanger, type ECP1000SS, material: stainless steel 1.4571, connections: sample gas: G 1/4" i, condensate G 3/8" i

ECP1000SS/NPT, heat exchanger
Part No.: 93K0111

Jet‑stream heat exchanger type ECP1000SS/NPT, material: stainless steel 316Ti, connections: sample gas: 1/4" NPT female, condensate: 3/8" NPT female

ECP1000PV, heat exchanger
Part No.: 93K0120

Jet‑stream heat exchanger, type ECP‑1000 PV, material: PVDF, connections: sample gas G 1/4" i, condensate G 3/8" i

Thermal conductivity paste, 5 g
Part No.: 90K0114

Thermal conductivity paste, ‑20 to +100 °C, silicone‑free, 5 g

Thermal conductivity paste, 50 g
Part No.: 90K0115

Thermal conductivity paste, ‑20 to +100 °C, silicone‑free, 50 g

Fine fuse 5x20, 1,6 A T
Part No.: 93K0540

Fine fuse 1,6 AT 5 x 20, (F1/F2), from 1995 ECP1000/ECP2000/ECP3000

Transistor BUZ11 ECP20, 1-3000
Part No.: 90K2020

Power transistor BUZ11 for cooler type ECP20, ECP1000‑3000

PT100, ECM ECP-1000x
Part No.: 93K0040X

PT100 temperature sensor for ECP1000‑3000 and ECM

Control electronic board ECP20/1-3000
Part No.: 93K0020

Control electronic board for ECP20, ECP1000‑3000 from serial no. 95xxxx

ECP1000-3000, power supply board
Part No.: 93K0530

Power supply board completely for ECP1000‑3000 (replacement for 93K0025)

Rectifier for ECP1000-3000/20
Part No.: 90K2010

Rectifier for cooler type ECP20, ECP1000‑3000

Peltier element ECP2000/3000
Part No.: 93K0520

Peltier element for ECP2000/3000, 6 x 6

Transformer for ECP1000-3000
Part No.: 93K0525

Transformer for ECP1000/2000/3000, 115/230 V, 115 VA

Alarm relay DSP1, 12 V for ECP
Part No.: 90K0145

ECP1/1000/20 alarm relay DSP1

Sealing ring, GL 18- 6 mm
Part No.: 91F1010

Sealing ring, GL18‑6 mm, material: PTFE

Sealing ring GL18-8 mm
Part No.: 91F1015

Sealing ring GL18‑8 mm, material: PTFE

Sealing ring GL 25-12 mm
Part No.: 90F0025

Sealing ring GL 25‑12 mm, material: PTFE

Spare union nut GL 18
Part No.: 91F1005

Spare union nut GL18

Spare union nut GL 18/14
Part No.: 91F1007

Spare union nut GL 18/14

Union nut GL 25
Part No.: 90F0020

Union nut GL 25

Union nut GL 25/18
Part No.: 90F0022

Union nut GL 25/18

Options
Peltier Gas Cooler ECP2000

ECP1000G, heat exchanger
Part No.: 93K0100

Jet‑stream heat exchanger, type ECP1000G, material: Duran glass, connections: sample gas: GL18‑6/6mm, condensate: GL 25‑12 mm

ECP1000G, heat exchanger, 90°
Part No.: 93K0130

Jet‑stream heat exchanger type ECP‑1000G 90°, material: Duran glass, connections: sample gas GL 18‑6 mm, condensate GL 25‑12 mm

ECP1000SS, heat exchanger
Part No.: 93K0110

Jet‑stream heat exchanger, type ECP1000SS, material: stainless steel 1.4571, connections: sample gas: G 1/4" i, condensate G 3/8" i

ECP1000SS/NPT, heat exchanger
Part No.: 93K0111

Jet‑stream heat exchanger type ECP1000SS/NPT, material: stainless steel 316Ti, connections: sample gas: 1/4" NPT female, condensate: 3/8" NPT female

ECP1000PV, heat exchanger
Part No.: 93K0120

Jet‑stream heat exchanger, type ECP‑1000 PV, material: PVDF, connections: sample gas G 1/4" i, condensate G 3/8" i

Connector/adapter PVDF GL 18 DN 4/6
Part No.: 09F9500

Product features

  • Straight GL adapter for flexible tube
  • GL connection: for use with GL 18 nut and GL 18 - 8 mm sealing ring
  • Connection for flexible tube: DN 4/6
  • Corrosion-resistant
  • High level of gas tightness
  • Material of sample-contacting parts: PVDF

Connector/adapter PVDF GL 18 DN 6/8
Part No.: 09F9510

Product features

  • Straight GL adapter for flexible tube
  • GL connection: for use with GL 18/14 nut with larger bore hole and GL 18 - 8 mm sealing ring
  • Connection for flexible tube: DN 6/8
  • Corrosion-resistant
  • High level of gas tightness
  • Material of sample-contacting parts: PVDF

Connector/adapter PVDF GL 25 DN 4/6
Part No.: 09F9520

Product features

  • Straight GL adapter for flexible tube
  • GL connection: for use with GL 25 nut and GL 25 - 12 mm sealing ring
  • Connection for flexible tube: DN 4/6
  • Corrosion-resistant
  • High level of gas tightness
  • Material of sample-contacting parts: PVDF

Connector/adaptor PVDF GL 25 - 6/8
Part No.: 09F9525

Product features

  • Straight GL adapter for flexible tube
  • GL connection: for use with GL 25 nut and GL 25 - 12 mm sealing ring
  • Connection for flexible tube: DN 6/8
  • Corrosion-resistant
  • High level of gas tightness
  • Material of sample-contacting parts: PVDF

Connector/adapter PVDF GL 25 DN 10/12
Part No.: 09F9530

Product features

  • Straight GL adapter for flexible tube
  • GL connection: for use with GL 25/18 nut with larger bore hole and GL 25 - 12 mm sealing ring
  • Connection for flexible tube: DN 10/12
  • Corrosion-resistant
  • High level of gas tightness
  • Material of sample-contacting parts: PVDF

Elbow connector/adapter, PV, GL 25 - 4/6
Part No.: 05V6035

Product features

  • GL elbow adapter for flexible tube, 2 pieces with GL expander ring
  • For operating pressures ≥ 1 bar to 5 bar
  • GL connection: for use with GL 25 nut and GL 25 - 10 mm sealing ring
  • Connection for flexible tube: DN 4/6
  • Corrosion-resistant
  • High level of gas tightness
  • Material of sample-contacting parts: PVDF

Elbow connector/adapter, PV, GL 25 DN 6/8
Part No.: 05V6030

Product features

  • GL elbow adapter for flexible tube, 2 pieces with GL expander ring
  • For operating pressures ≥ 1 bar to 5 bar
  • GL connection: for use with GL 25 nut and GL 25 - 10 mm sealing ring
  • Connection for flexible tube: DN 6/8
  • Corrosion-resistant
  • High level of gas tightness
  • Material of sample-contacting parts: PVDF
