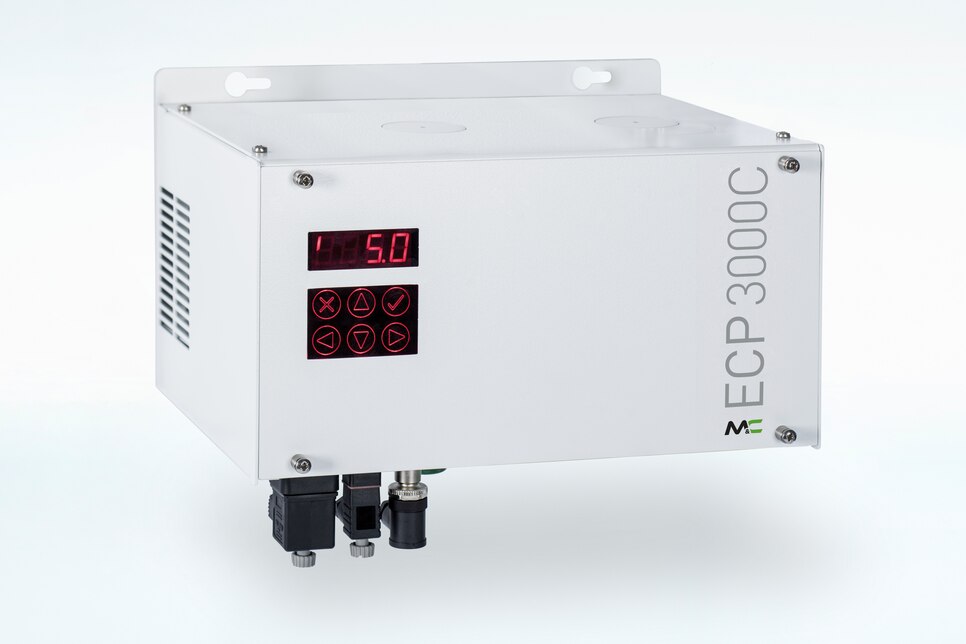

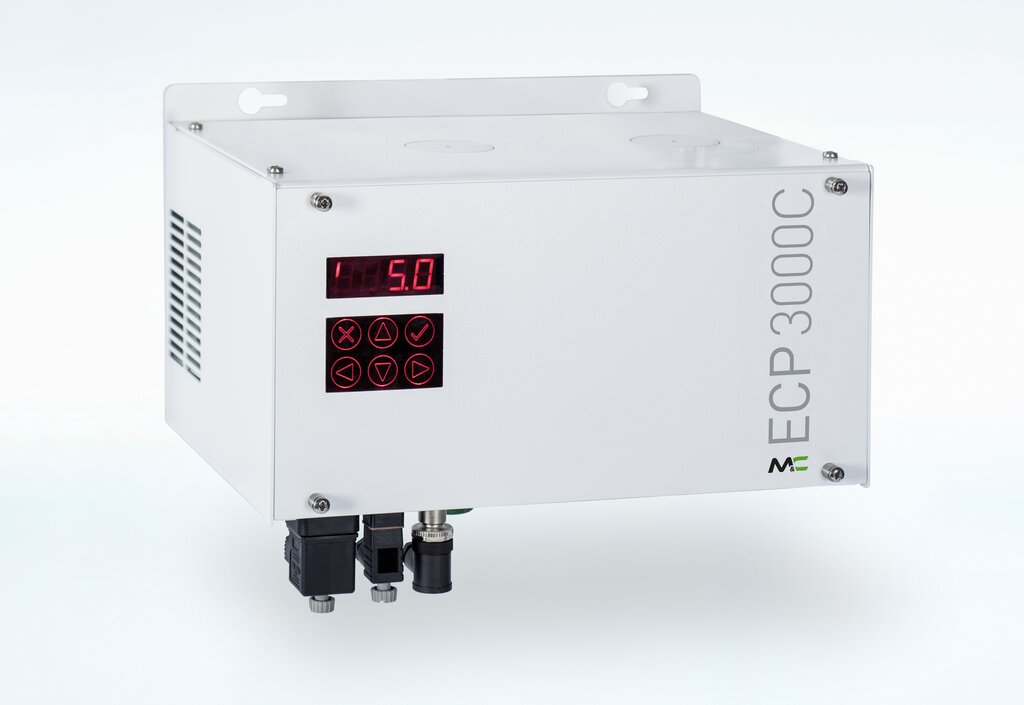

Peltier Gas Cooler ECP3000C

Part No.: 01K3400X

Product features

  • Peltier gas cooler for 1 Jet-Stream heat exchanger with a gas flow rate of max. 350 Nl/h
  • Can be used up to an ambient temperaure of 50 °C [+122 °F] as standard
  • Adjustable gas outlet dew point with a stability of < ±0.1 °C [±0.18 °F] at constant conditions
  • Control setpoint selectable between absolute and differential temperature value mode
  • With a total cooling capacity of 110 kJ/h at +25 °C [+77 °F] ambient temperature
  • Universally usable with broadband power supply
  • Configurable, potential-free alarm output
  • Integrated evaluation for liquid alarm sensors LA1 and LA1S
  • Optionally: 1 Jet-Stream heat exchanger, automatic or manual condensate removal, configurable mA output (no shielding necessary)

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    One stream, max. flow 350 Nl/hr, different materials of heat exchangers, power 115-230 V AC/50-60 Hz

  • Applications
    The ECP 3000C gas cooler is used in gas analysis to lower the dew point of humid to avoid condensation in the analyser. An extremly stable gas dew point avoids water vapour crosssensitivity and volumetric errors.
  • Description
    Electric gas cooler type ECP3000C with display and capacitive control panel, for ambient temperatures up to +50 °C, with Peltier element, electronically regulated between +2 and +15 °C (pre‑set to +5 °C), adjustable high/low‑temperature alarm with 1 potential‑free relay contact, integrated LA evaluation, without heat exchanger, power: 115 to 230 V AC/50 to 60 Hz pluggable
  • Product features
    Explosion-proof No
    Cooling Peltier
    Temperature > 2 °C [> 28.4 °F]
    Gas paths 1
    Flow rate/gas path > 150 Nl/h
    Material Selectable
    Power supply 110‒120 V 220‒240 V
