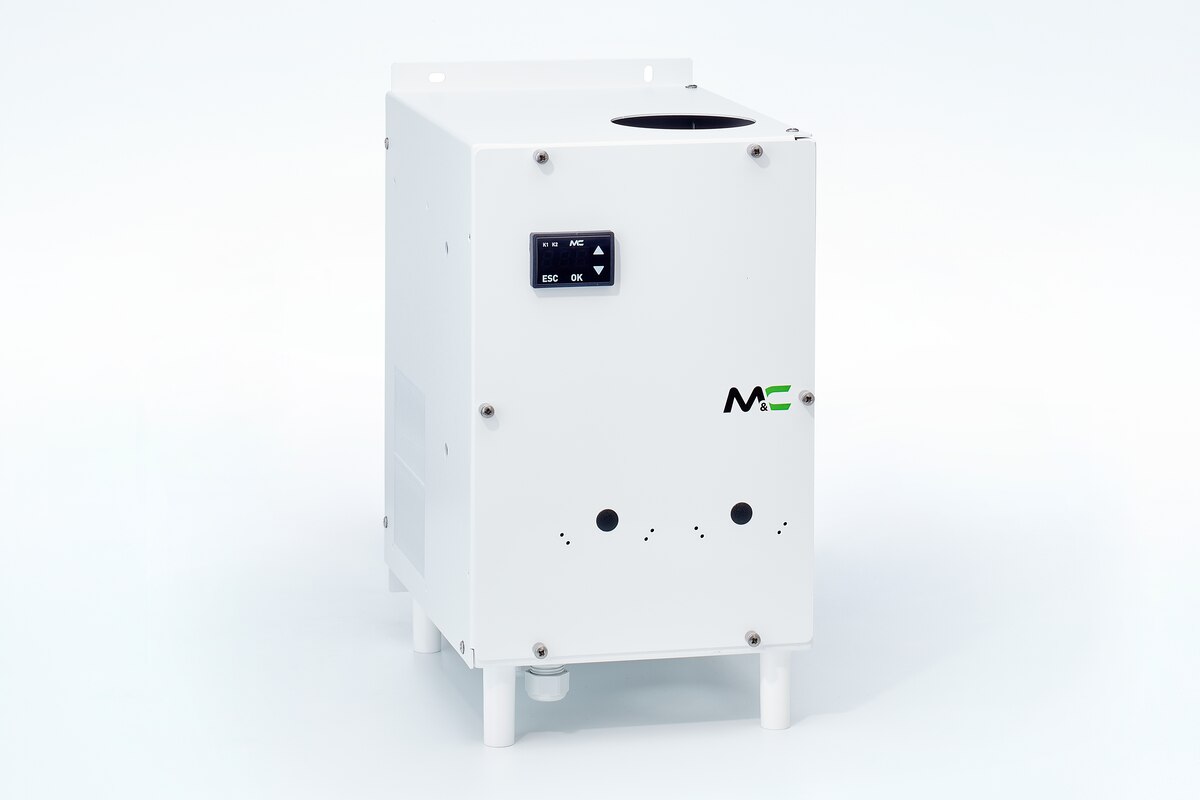

Compressor Gas Cooler ECL/2

Part No.: 02K4000X

Product features

  • Compressor gas cooler for 2 Jet-Stream heat exchangers with a gas flow rate of max. 2 x 250 Nl/h or 1 x 500 Nl/h
  • Can be used as one or two-channel unit
  • Can be upgraded to a complete sample gas conditioning system
  • Adjustable gas outlet dew point with a stability of < ±0.25 °C [±0.45 °F] at constant conditions
  • With a total cooling capacity of 144 kJ/h at +10 to 50 °C [+50 to 122 °F] ambient temperature
  • Ambient temperature up to +45 °C [+113 °F]
  • With configurable status alarm contact
  • In a wall-mounting housing
  • Power: 230 V
  • Optionally: 2 Jet-Stream heat exchangers, peristaltic pumps SR25.2, different gas and condensate connections depending on heat exchanger types, pre-cooling stage(s), mounting plate, filter(s), liquid alarm sensor(s), diaphragm pump(s)

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    One or two gas paths, max. flow: 1 x 500 Nl/h or 2 x 250 Nl/h, different materials of heat exchangers, power: 230 V/50 Hz or 115 V/60 Hz - Without heat exchangers! Selection in Options" -"

  • Applications
    The M&C gas coolers EC-L are used in gas analysis technology to lower the dew point of humid gases in order to prevent condensation in the analyzer(s). By setting an extremely stable and low gas outlet dew point, water vapor cross-sensitivity and volumetric errors are minimized.
  • Description
    Compressor gas cooler type EC‑L/2 in a wall‑mount enclosure, prepared for two heat exchangers 250 Nl/h each, high/low‑temperature alarm window, as well as sample gas dew point adjustable at the integrated electronic controller, factory‑set at +5 °C, with 1 contact output, temperature sensor with digital display: ‑10 °C/+50 °C, integrated evaluation for liquid alarm sensor LA1S, 1 contact output for status alarm, 1 contact output for pump control, power: 230 V/50 Hz
  • Product features
    Explosion-proof No
    Cooling Compressor
    Temperature > 2 °C [> 28.4 °F]
    Gas paths 2
    Flow rate/gas path > 150 Nl/h
    Material Selectable
    Power supply 220‒240 V
