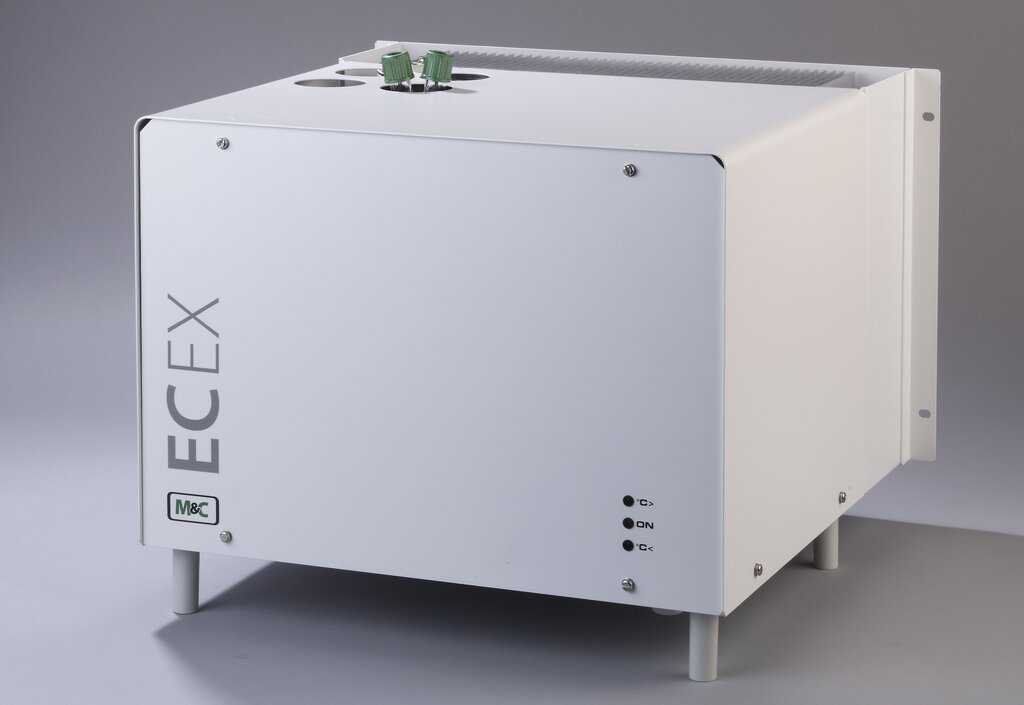

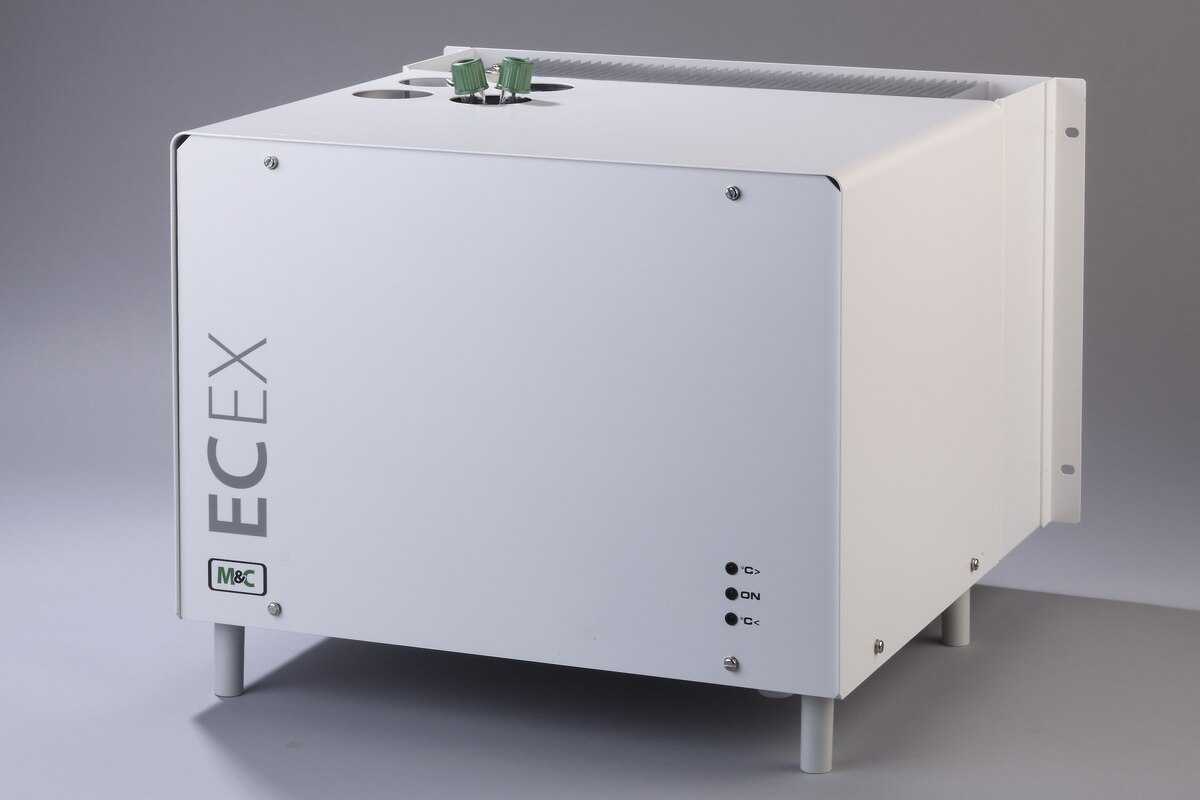

Compressor Gas Cooler ECEX-1G

Part No.: 02K5000

Product features

  • Compressor gas cooler with 1 Jet-Stream heat exchanger made of Duran® glass
  • With a gas flow rate of max. 1 x 250 Nl/h
  • Explosion-proof version according to ATEX for zone 1
  • Housing designed for up to 4 Jet-Stream heat exchangers
  • Adjustable gas outlet dew point with a stability of < ±0.25 °C [±0.45 °F] at constant conditions
  • With a total cooling capacity of max. 520 kJ/h at +25 °C [+77 °F] ambient temperature
  • Ambient temperature up to +45 °C [+113 °F]
  • With status alarm contact
  • In a 19" rack or wall-mounting housing
  • Power: 230 V
  • Optionally: Jet-Stream heat exchangers, automatic or manual condensate removal, different gas and condensate connections

Certifications

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

1

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    For Ex zone 1, max. four gas paths, max. flow: 250 Nl/h each, different materials of heat exchangers, power: 230 V/50 Hz or 115 V/60 Hz

  • Applications
    The M&C gas coolers type EC are used in gas analysis applications to lower the dew point of humid gases in order to prevent condensation in the analyzer. By setting an extremely stable gas outlet dew point, water vapor cross-sensitivity and volumetric errors are avoided.
  • Description
    Compressor gas cooler type EC‑Ex‑1G, explosion‑proof version for Ex zone 1 with protection class according to ATEX: II 2 G EX pxb db eb [ib] IIC T4 Gb, EXAM NR.: 17 ATEX E 080,IECEx BVS 18.0021, in a wall‑mount enclosure or, on request, as 19" rack housing, housing depth: 450 mm, electronically regulated to +5 °C, high and low‑temperature alarm with 1 changeover contact, jet‑stream heat exchangers made of Duran glass for 1 x 250 Nl/h (max. 4 pcs.), connections: sample gas: GL 18‑6 mm, condensate: GL 25‑12 mm, power: 230 V/50‑60 Hz

Options & spare parts
Compressor Gas Cooler ECEX-1G

Here you get an overview of suitable options & spare parts

Product options
Spare parts

Spare parts
Compressor Gas Cooler ECEX-1G

EC-G, heat exchanger
Part No.: 02K9100

Jet‑stream heat exchanger type EC‑G, material: Duran® glass, connections: sample gas: 2 x GL 18‑6 mm, condensate: 1 x GL 25‑12 mm

EC-G, 90° connection, HE
Part No.: 02K9150

Jet‑stream heat exchanger type EC‑G/90°, with 90° angle at the gas connectors, material: Duran® glass, connections: sample gas: 2 x GL 18‑6 mm, condensate: 1 x GL 25‑12 mm

EC-SS, HE
Part No.: 02K9200

Jet‑stream heat exchanger type EC‑SS, material: SS 316 Ti, connections: sample gas: 2 x G 1/4" f, condensate: 1 x G 3/8" f

EC-SS/NPT, HE
Part No.: 02K9250

Jet‑stream heat exchanger type EC‑SS/NPT, material: SS 316 Ti, connections: sample gas: 2 x 1/4" NPT, condensate: 1 x 3/8" NPT

EC-PV, heat exchanger
Part No.: 02K9300

Jet‑stream heat exchanger type EC‑PV, material: PVDF, connections: sample gas: 2 x G 1/4" f, condensate: 1 x G 3/8" f

Sealing ring GL18-8 mm
Part No.: 91F1015

Sealing ring GL18‑8 mm, material: PTFE

Sealing ring GL 25-12 mm
Part No.: 90F0025

Sealing ring GL 25‑12 mm, material: PTFE

Spare union nut GL 18
Part No.: 91F1005

Spare union nut GL18

Spare union nut GL 18/14
Part No.: 91F1007

Spare union nut GL 18/14

Union nut GL 25
Part No.: 90F0020

Union nut GL 25

Union nut GL 25/18
Part No.: 90F0022

Union nut GL 25/18

ECEx temperature sensor R51
Part No.: 90K5010

Temperature sensor R51 for control of cooler type EC‑Ex

ECEx temperature contact
Part No.: 90K5015

Temperature contact S1 for cooler type EC‑Ex

Fuse, 5x20, 63 mA, ECEX F1
Part No.: 90K5026

EC‑EX fuse F1, 63 mA, 5 x 20 F 19194

LED display unit
Part No.: 90K1010

EC‑EX‑LED display unit with connecting cable

ECEx cooling unit, complete, 230 V
Part No.: 90K5035

Cooling unit type EC‑Ex, complete with compressor, vaporizer and condenser, power: 230 V/50 Hz

ECEx cooling unit, complete, 115 V
Part No.: 90K5040

Cooling unit type EC‑Ex, complete with compressor, vaporizer and condenser, power: 115 V/50‑60 Hz

Options
Compressor Gas Cooler ECEX-1G

EC-G, heat exchanger
Part No.: 02K9100

Jet‑stream heat exchanger type EC‑G, material: Duran® glass, connections: sample gas: 2 x GL 18‑6 mm, condensate: 1 x GL 25‑12 mm

EC-G, 90° connection, HE
Part No.: 02K9150

Jet‑stream heat exchanger type EC‑G/90°, with 90° angle at the gas connectors, material: Duran® glass, connections: sample gas: 2 x GL 18‑6 mm, condensate: 1 x GL 25‑12 mm

EC-SS, HE
Part No.: 02K9200

Jet‑stream heat exchanger type EC‑SS, material: SS 316 Ti, connections: sample gas: 2 x G 1/4" f, condensate: 1 x G 3/8" f

EC-SS/NPT, HE
Part No.: 02K9250

Jet‑stream heat exchanger type EC‑SS/NPT, material: SS 316 Ti, connections: sample gas: 2 x 1/4" NPT, condensate: 1 x 3/8" NPT

EC-PV, heat exchanger
Part No.: 02K9300

Jet‑stream heat exchanger type EC‑PV, material: PVDF, connections: sample gas: 2 x G 1/4" f, condensate: 1 x G 3/8" f

ECEx, temperature indicator, option
Part No.: 02K9523

Option: temperature indicator in the front of the cooler type EC‑Ex, range: 0 to 50 °C

Connector/adapter PVDF GL 18 DN 4/6
Part No.: 09F9500

Product features

  • Straight GL adapter for flexible tube
  • GL connection: for use with GL 18 nut and GL 18 - 8 mm sealing ring
  • Connection for flexible tube: DN 4/6
  • Corrosion-resistant
  • High level of gas tightness
  • Material of sample-contacting parts: PVDF

Connector/adapter PVDF GL 18 DN 6/8
Part No.: 09F9510

Product features

  • Straight GL adapter for flexible tube
  • GL connection: for use with GL 18/14 nut with larger bore hole and GL 18 - 8 mm sealing ring
  • Connection for flexible tube: DN 6/8
  • Corrosion-resistant
  • High level of gas tightness
  • Material of sample-contacting parts: PVDF

Connector/adapter PVDF GL 25 DN 4/6
Part No.: 09F9520

Product features

  • Straight GL adapter for flexible tube
  • GL connection: for use with GL 25 nut and GL 25 - 12 mm sealing ring
  • Connection for flexible tube: DN 4/6
  • Corrosion-resistant
  • High level of gas tightness
  • Material of sample-contacting parts: PVDF

Connector/adaptor PVDF GL 25 - 6/8
Part No.: 09F9525

Product features

  • Straight GL adapter for flexible tube
  • GL connection: for use with GL 25 nut and GL 25 - 12 mm sealing ring
  • Connection for flexible tube: DN 6/8
  • Corrosion-resistant
  • High level of gas tightness
  • Material of sample-contacting parts: PVDF

Connector/adapter PVDF GL 25 DN 10/12
Part No.: 09F9530

Product features

  • Straight GL adapter for flexible tube
  • GL connection: for use with GL 25/18 nut with larger bore hole and GL 25 - 12 mm sealing ring
  • Connection for flexible tube: DN 10/12
  • Corrosion-resistant
  • High level of gas tightness
  • Material of sample-contacting parts: PVDF

Elbow connector/adapter, PV, GL 25 - 4/6
Part No.: 05V6035

Product features

  • GL elbow adapter for flexible tube, 2 pieces with GL expander ring
  • For operating pressures ≥ 1 bar to 5 bar
  • GL connection: for use with GL 25 nut and GL 25 - 10 mm sealing ring
  • Connection for flexible tube: DN 4/6
  • Corrosion-resistant
  • High level of gas tightness
  • Material of sample-contacting parts: PVDF

Elbow connector/adapter, PV, GL 25 DN 6/8
Part No.: 05V6030

Product features

  • GL elbow adapter for flexible tube, 2 pieces with GL expander ring
  • For operating pressures ≥ 1 bar to 5 bar
  • GL connection: for use with GL 25 nut and GL 25 - 10 mm sealing ring
  • Connection for flexible tube: DN 6/8
  • Corrosion-resistant
  • High level of gas tightness
  • Material of sample-contacting parts: PVDF

EC-D/Ex, universal unit, 230 V, option
Part No.: 02K9550

Option: universal unit type EC‑D/Ex as 19" rack with 3 HE version for mounting under the ECEX cooler with 1 ea. peristaltic pump type SR25.1Ex (max. 4 pcs.) for automatic condensate removal, completely connected to the cooler with tubing in Novoprene/PVDF, condensate outlet: DN 4/6, power: 230 V/50 Hz, separate power supply required

EC-D/Ex, universal unit, 115 V, option
Part No.: 02K9550A

Option: universal unit type EC‑D/Ex as 19" rack with 3 HE version for mounting under the ECEX cooler with 1 ea. peristaltic pump type SR25.1Ex (max. 4 pcs.) for automatic condensate removal, completely connected to the cooler with tubing in Novoprene/PVDF, condensate outlet: DN 4/6, power: 115 V/60 Hz, separate power supply required
