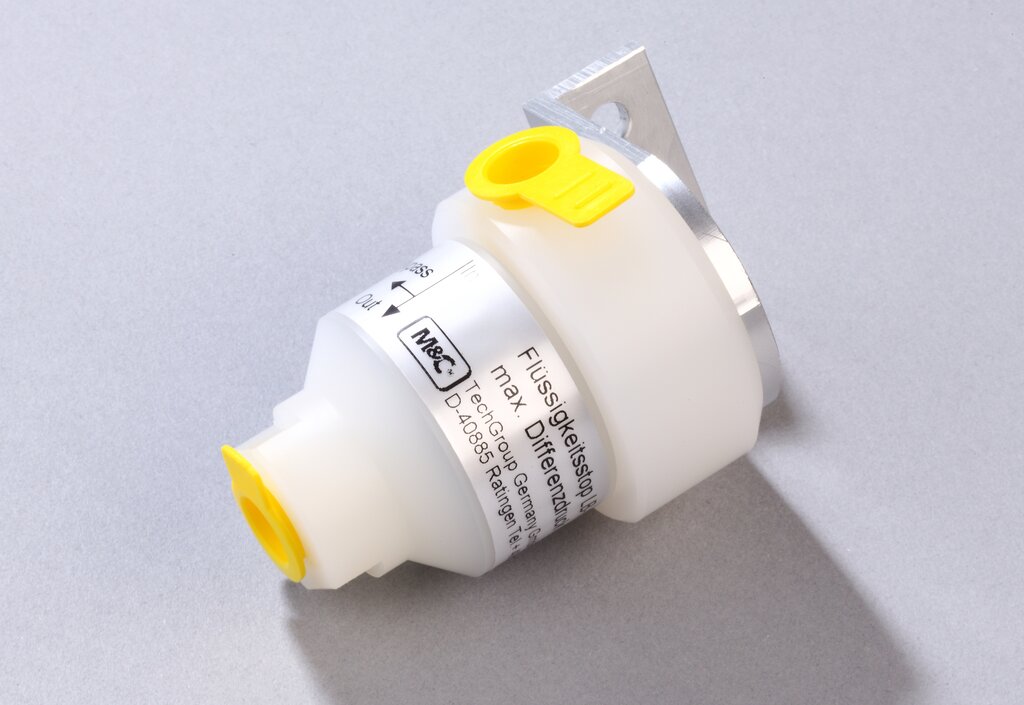

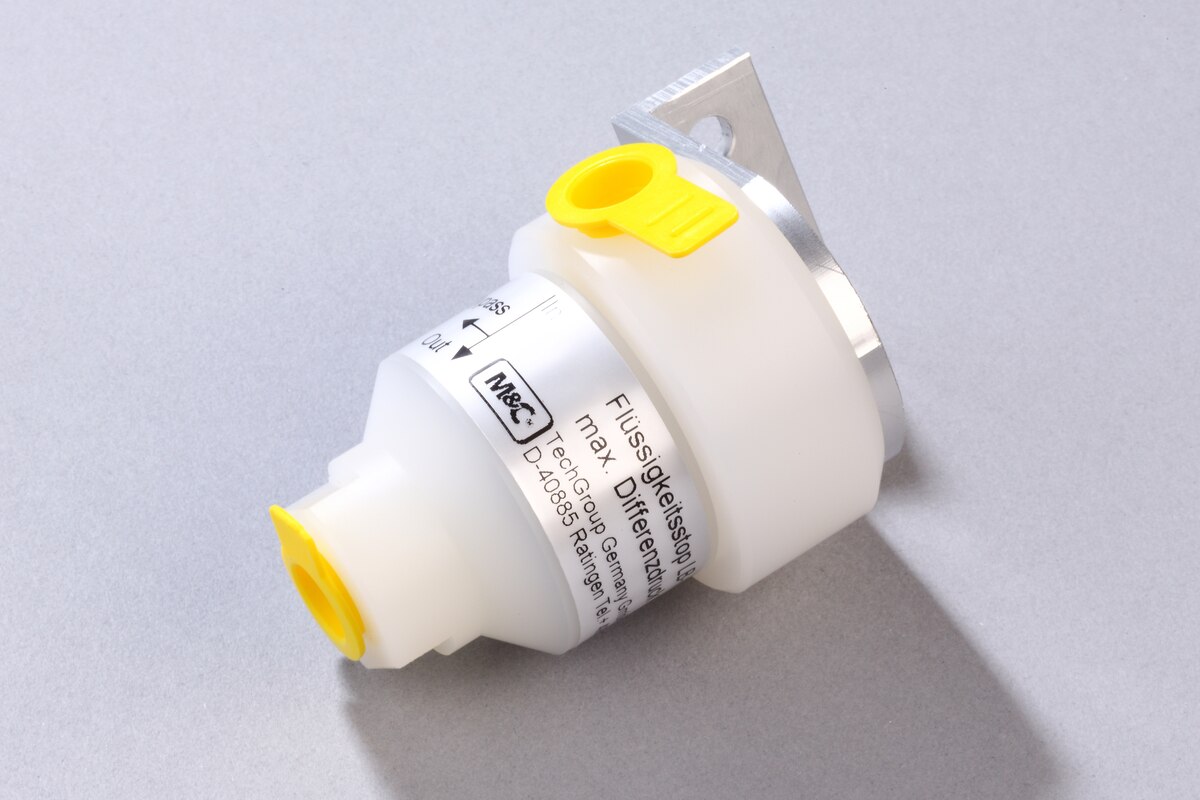

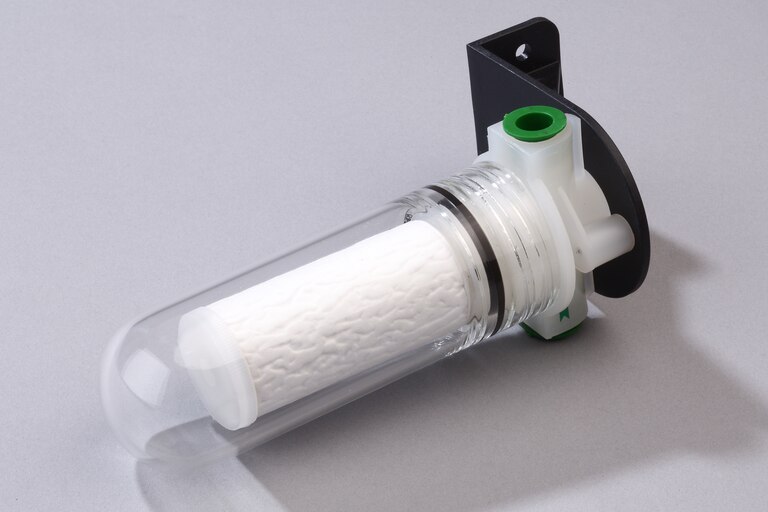

Liquid Stop LB-1/PV

Part No.: 03F4005

Product features

Safe protection against liquid ingress
Reliable separation of condensate
Gas pressure: 0.3–2 bar abs., ∆P max. 0.5 bar
Temperature sample gas: max. +80 °C [+176 °C]
Easy change of the hydrophobic protective membrane
Including wall-mounting bracket
Material of sample-contacting parts: PVDF, FKM, PTFE, Polyester, glass

Product information & downloads

Manual

Data sheet

Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

planned operating altitude above sea level in [m]

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1 Hose/tube diameter in [mm]

2 Tube length in [m]

3 Flow rate in [Nl/h] Standard flow rate Nl/h
Volume flow under following
Defined conditions:

Temperature = 273.15 K (0 °C)
Pressure = 1,01325016 bar (760 mm HG)
Air density = 1,294 kg/m³ (dry air)

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

H₂O dew point [°C]

H₂O volume proportion [vol%]

H₂O weight proportion per standard cubic meter gas [in g/Nm³] Standard flow rate Nl/h
Volume flow under following
Defined conditions:

Temperature = 273.15 K (0 °C)
Pressure = 1,01325016 bar (760 mm HG)
Air density = 1,294 kg/m³ (dry air)

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

[at] technical atmosphere

[atm] physical atmosphere

[bar] bar

[kPa] = kN/m²] kilopascal

[psi = lb/in²] psi

[ft H₂O] foot of water (4 °C)

[inch H₂O] inch of water (4 °C)

[inch Hg] inch of mercury (0 °C)

[Torr = mm Hg] mm of mercury (0 °C)

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

[°C] °Celsius

[°F] °Fahrenheit

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

[mm] millimeter

[cm] centimeter

[m] meter

[km] kilometer

[mi] mile

[ft] foot

[in] inch

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

[cm²] square centimeter

[m²] square meter

[km²] square kilometer

[mi²] square mile

[ft²] square foot

[in²] square inch

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

[cm³] cubic centimeter

[dm³] cubic decimeter

[m³] cubic meter

[in³] cubic inch

[ft³] cubic foot

[gal] US gallon

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

[g] gram

[kg] kilogram

[oz] ounce

[lb] pound

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

[J] joule = watt-second [Ws]

[kJ] kilojoule

[kWh] kilowatt-hour

[kcal_th] thermochemical kilocalorie

[Btu] British thermal unit

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

[m³/s] cubic meter per second

[l/s] liter per second

[l/min] liter per minute

[l/h] liter per hour

[m³/h] cubic meter per hour

[ft³/min] cubic foot per minute

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

[m/s] meter per second

[km/h] kilometer per hour

[ft/s] foot per second

[mile/h] mile per hour

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

[kJ/h] kilojoule per hour

[W] watt

Overview

For protecting gas analyzers against liquids, material: PVDF
Applications
The M&C liquid stop LB-1... is suitable for protecting analyzers against the inrush of liquids from the upstream sample gas conditioning system. Severe damages of the analyzer can thereby be avoided. The most effective position of the liquid stop LB-1... is downstream the gas conditioning unit, directly in front of the flow meter of the analyzer or gas chromatograph.
Description
Liquid stop type LB‑1/PV with bypass function, connection: 1/8" NPT female, material: PVDF, PTFE, Viton®
