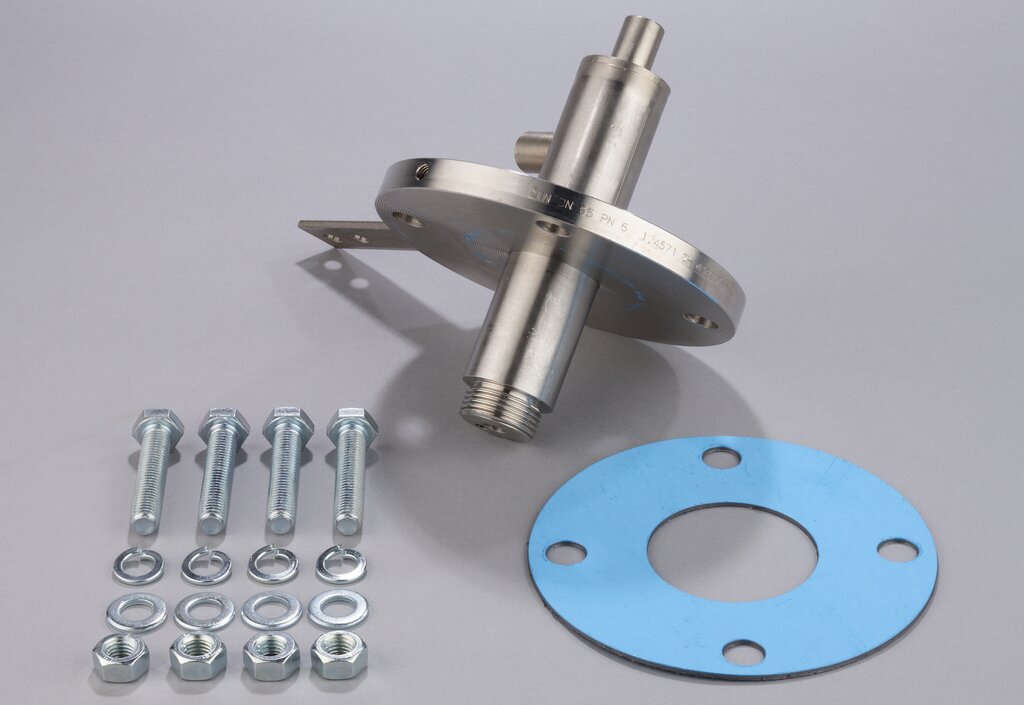

Gas Sample Probe SP10

Part No.: 01S1000

Product features

  • Gas sample probe for processes with high dust levels
  • Consisting of an adapter tube with flange and screwed-on pre-filter
  • With stainless steel pre-filter
  • Fast response time
  • Easy installation and low maintenance
  • Material of sample-contacting parts: stainless steel, Novapress®
  • Optional: pre-filters with or without volume displacer and extension tubes in various lengths and materials, protection plate for pre-filter

Product information & downloads

Manual
Data sheet
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Applications
    The M&C gas sample probes version SP 10 are to be installed for continuous sampling of highly dust-loaded gases, large flow sampling as well as for general gas sampling. Due to its compact design, it requires only limited space.
  • Description
    Gas sample probe type SP10 with an in‑situ stainless steel filter V10, outer diameter: 46 mm, filter porosity: 2 µm, probe length: 270 mm, mounting flange DN 65 PN 6B, material: SS 316L and 316Ti
  • Product features
    Explosion-proof No
    Heating No
    Temperature 200 °C [392 °F]
    Shutoff/blowback No
    Calibration No
    Portable No
    Power supply Without
    Material Stainless steel
