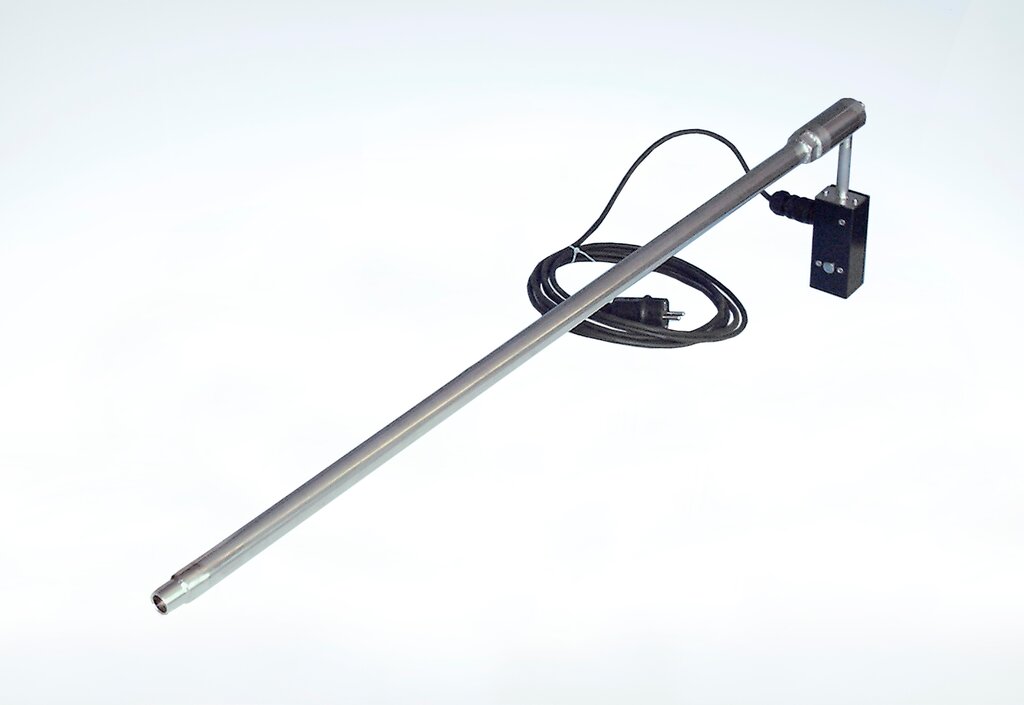

Sample Tube SP34-H, heated

Part No.: 40S9115

Product features

  • Completely heated double-jacket tube for gas sampling
  • For portable gas sample probe PSP4000
  • Easy mounting
  • With female G 3/8" thread at the tip of the sample tube for a pre.filter or an extension tube
  • Length: 1 m [≈ 3.3 ft]  w/o female G 3/8" thread
  • With capillary thermostat and thermostat controller
  • Sampling temperature: max. +400 °C [+752 °F]
  • Operating temperature of the heater: max. +180 °C [+356 °F]
  • Power: 230 V
  • Material of sample-contacting parts: stainless steel
  • Optionally: extension tube, pre-filter

Product information & downloads

Manual
Data sheet
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview
    stainless steel, heated from 100 to 180 °C, process temperature: max. 200 °C, in order to avoid condensation between sample point and probe head, optionally: 115 V/60 Hz
  • Applications
    The electrically heated M&C sample probe tube SP34-H is used in extractive sampling systems to avoid cooling and condensation of the sample in the in-situ tube from the sample point to the heated sample probe PSP4000-H.
  • Description
    Heated sample tube SP34‑H for probe PSP4000, double‑jacket tube with 25 mm diameter, length: 1 m, with female G 3/8" connection incl. sealing and tube fitting for connecting an additional sample tube, electrically heated from 100 to 180 °C, adjustable by an integrated termostat, factory‑set at 180 °C, material: SS 316Ti, power: 230 V/50 Hz, 400 W, operating temperature: max. 200 °C
  • Product features
    Material Stainless steel
    Explosion-proof No
    Heating Yes
    Portable Yes
    Power supply 220‒240 V
