Part No.: 05V1045

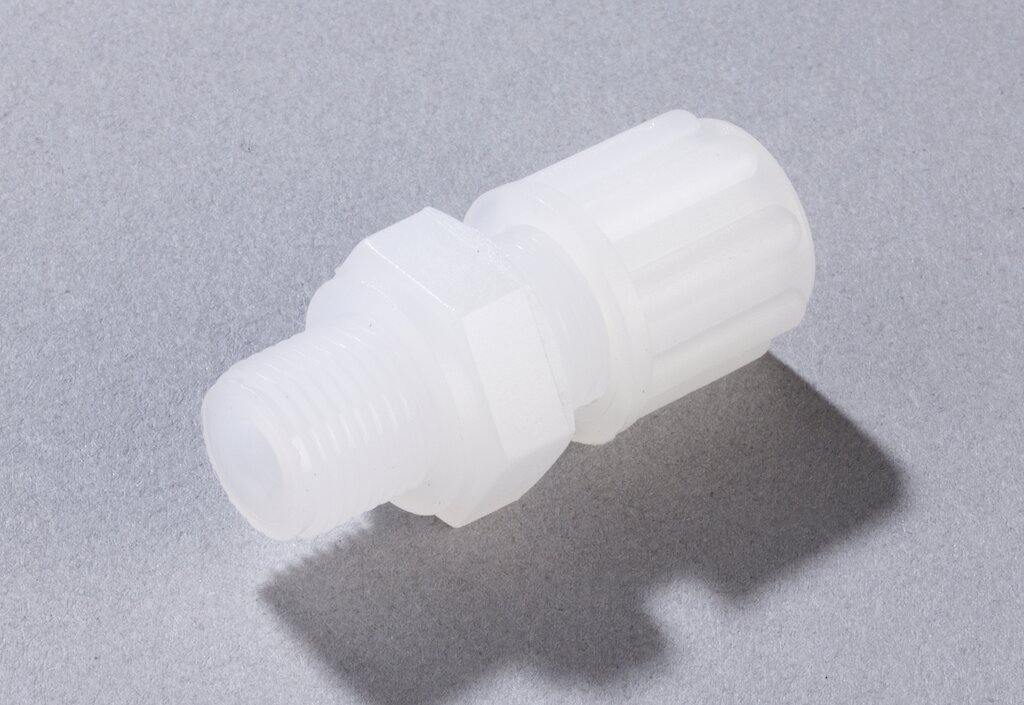

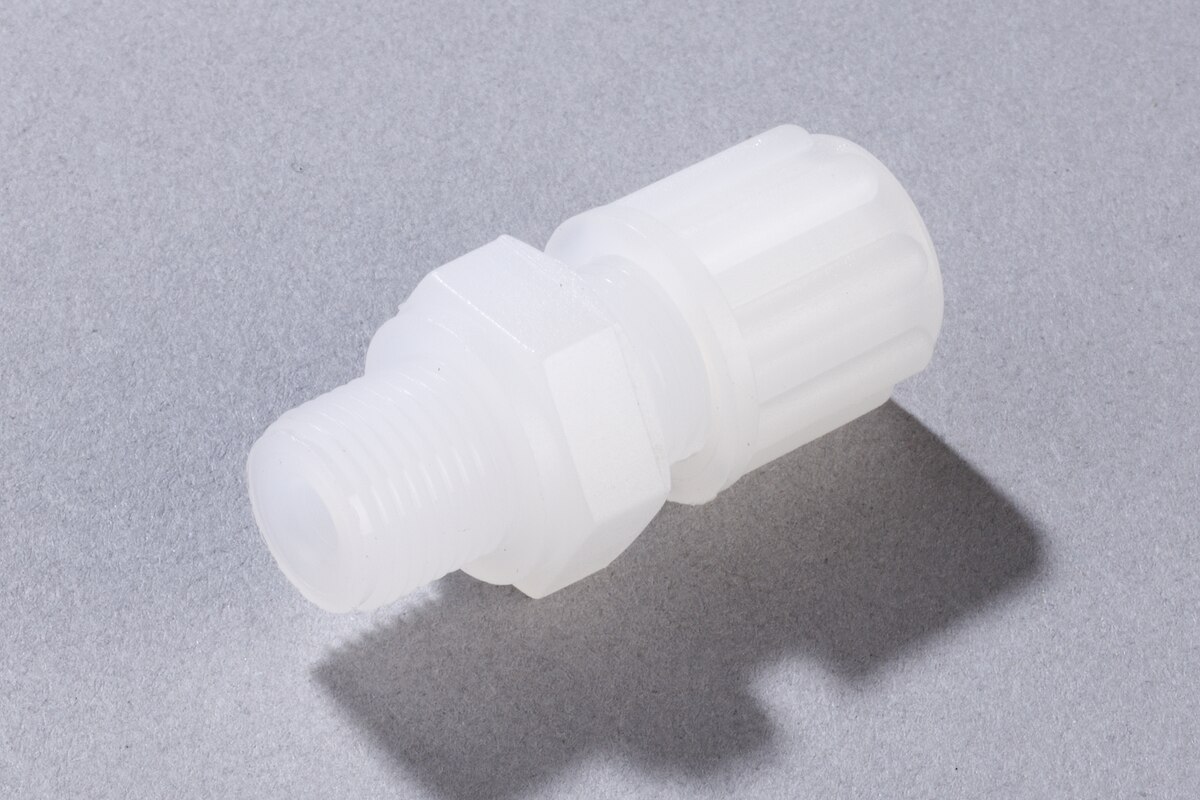

Straight Male Connector GE PVDF, DN4/6 - G1/8"

Product features

Straight male connector for flexible tube
Male thread connection: G 1/8"
Connection for flexible tube: DN 4/6
Corrosion-resistant
High level of gas tightness
Material of sample-contacting parts: PVDF

Request a quote

Product information & downloads

Data sheet 302 KB
