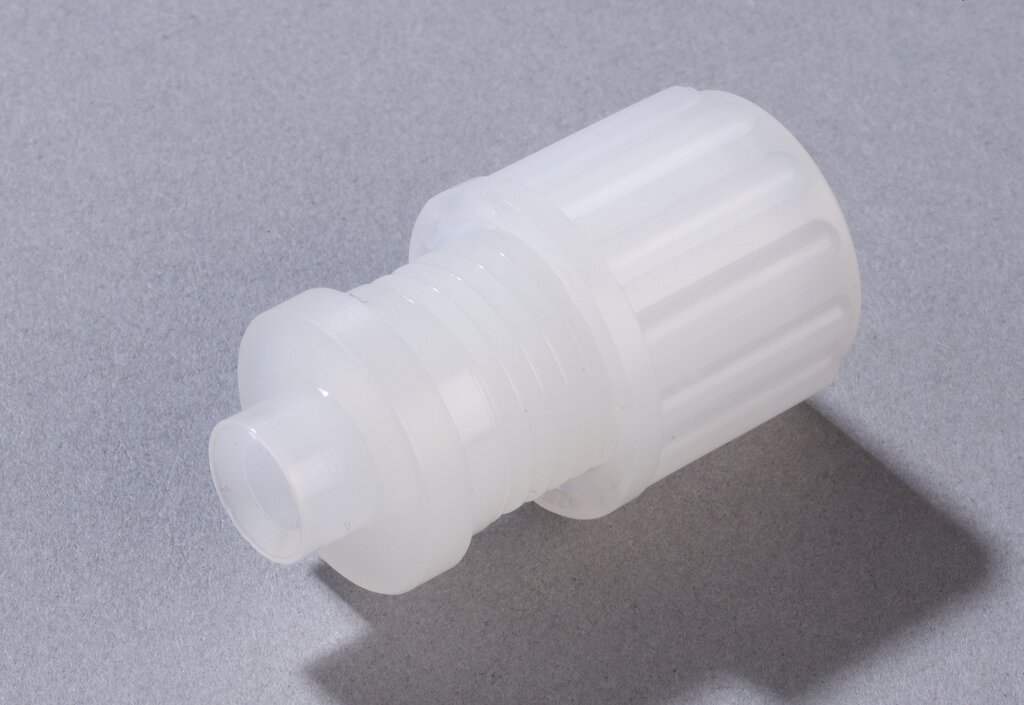

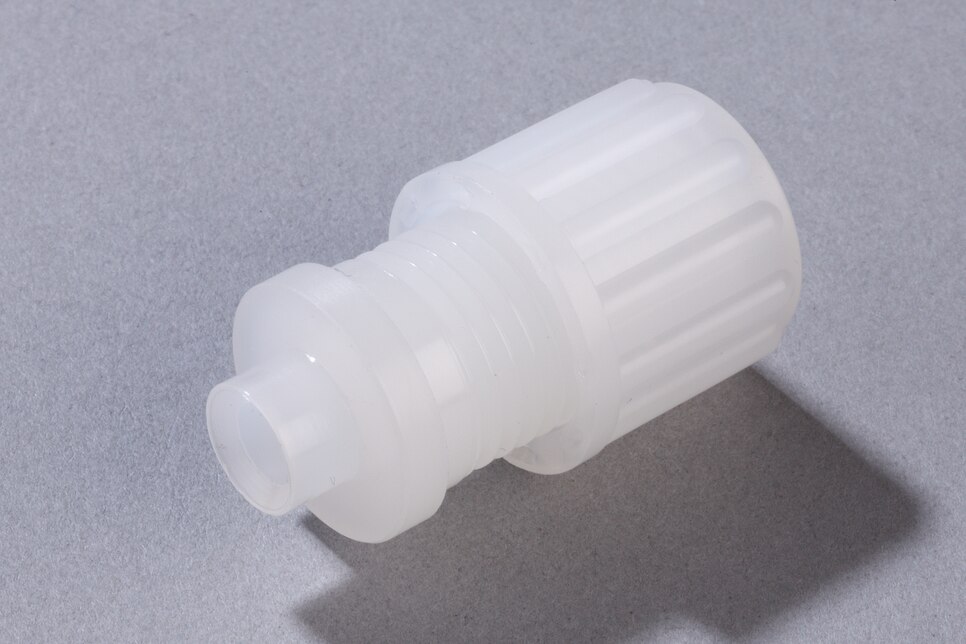

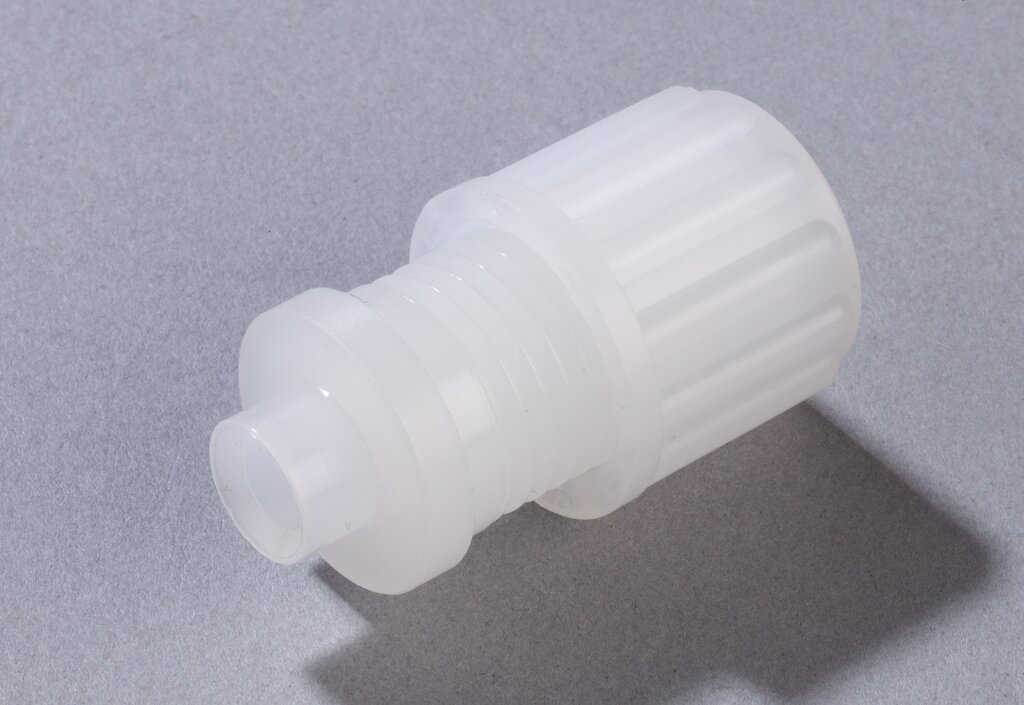

Straight GL Adapter, GL18 - DN6/8

Part No.: 09F9510

Product features

  • Straight GL adapter for flexible tube
  • GL connection: for use with GL 18/14 nut with larger bore hole and GL 18 - 8 mm sealing ring
  • Connection for flexible tube: DN 6/8
  • Corrosion-resistant
  • High level of gas tightness
  • Material of sample-contacting parts: PVDF

Product information & downloads

Data sheet
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Applications
    M&C ‘’GL’’ glass connectors which are normally fitted with sealing rings may ONLY be used to connect RIGID tubes made of polyethylene or polypropylene etc. For FLEXIBLE tubes out of PVC, FPM or PTFE, a connecting adapter MUST be used. With high operating pressures (> 1 bar), connecting adapters for RIGID tubes MUST be used. When ordering connecting adapters for a NEW DEVICE, it is NOT NECESSARY to place a separate order for sealing rings and compression nuts, as the devices are designed to meet specific requirements.
  • Description
    Connector/adapter, GL 18 DN 6/8, material: PVDF
  • Product features
    Type Straight GL adapter
    Material PVDF
    Connection GL14-25
    Heating No
