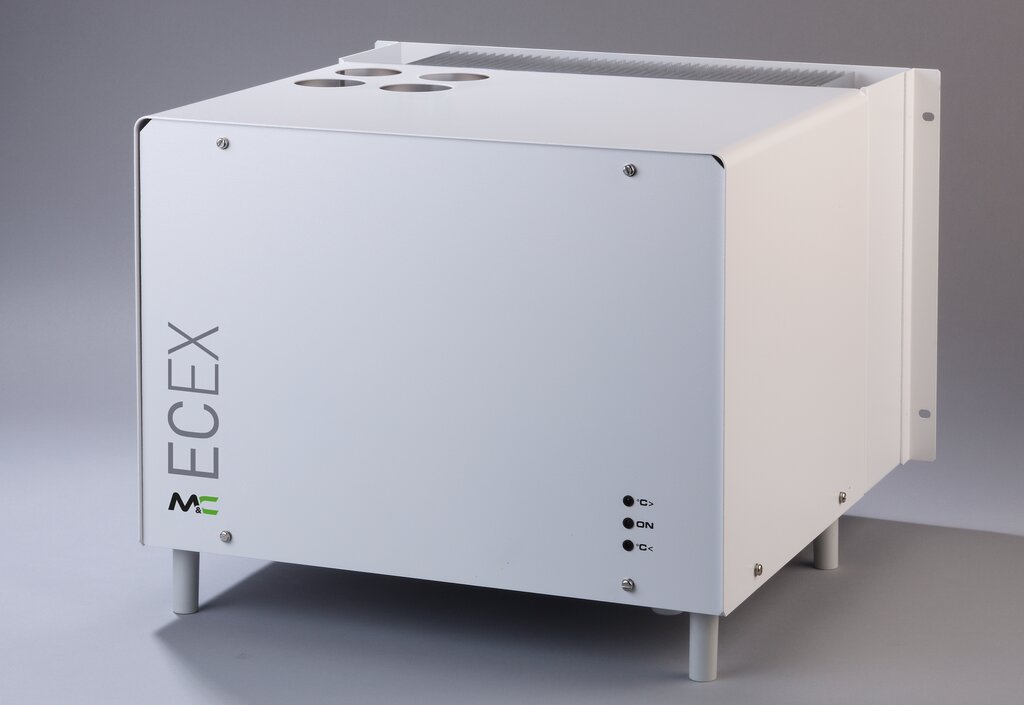

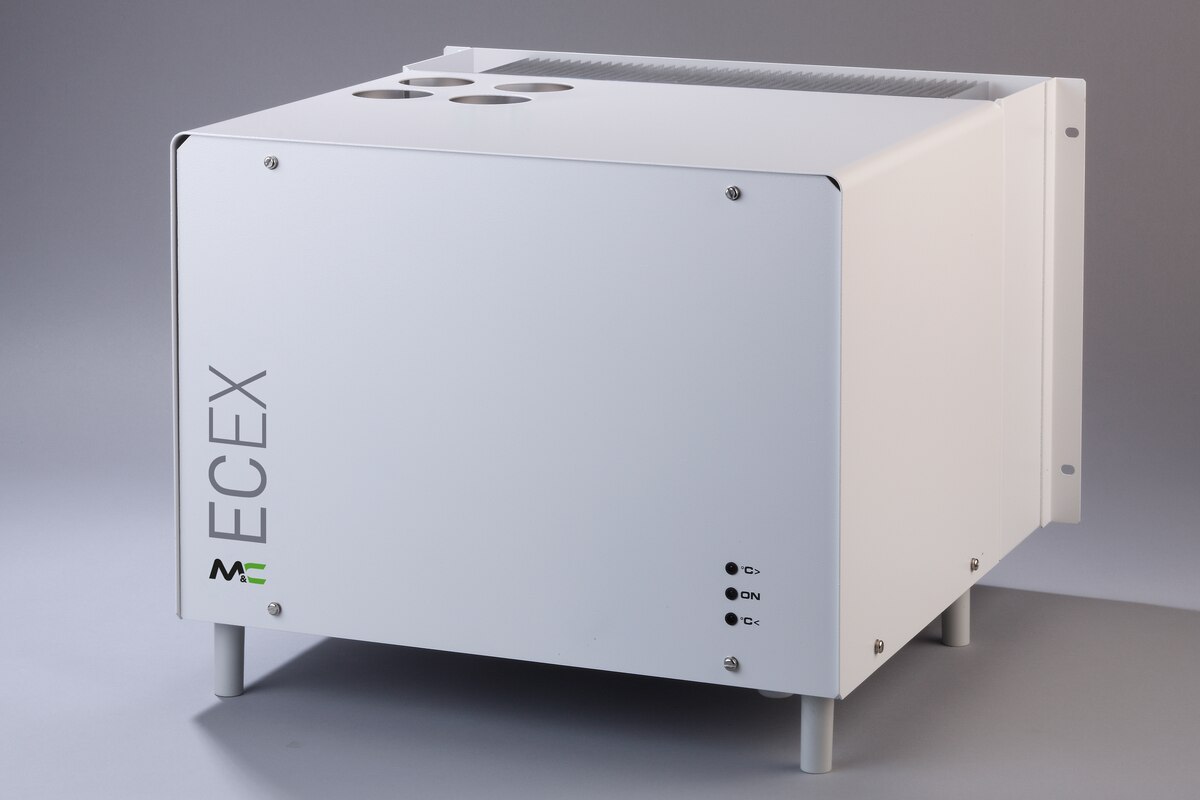

EC-Ex w/o HE, 230 V

Part No.: 02K5000X

Product features

• Compressor gas cooler for up to 4 Jet-Stream heat exchangers with a gas flow rate of max. 4 x 250 Nl/h
• Explosion-proof version according to ATEX for zone 1
• Adjustable gas outlet dew point with a stability of < ±0.25 °C [±0.45 °F] at constant conditions
• With a total cooling capacity of max. 520 kJ/h at +25 °C [+77 °F] ambient temperature
• Ambient temperature up to +45 °C [+113 °F]
• With status alarm contact
• In a 19" rack or wall-mounting housing
• Power: 230 V
• Optionally: Jet-Stream heat exchangers, automatic or manual condensate removal, different gas and condensate connections
