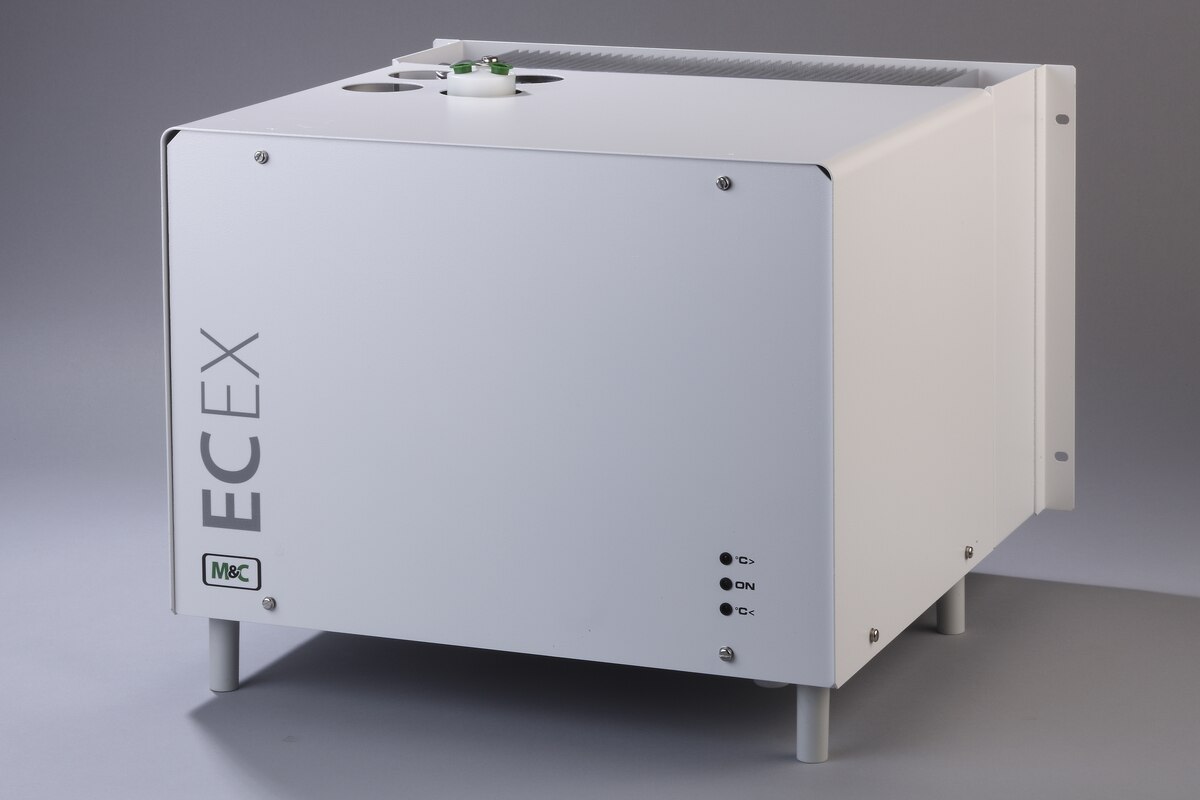

Compressor Gas Cooler ECEX-1PV

Part No.: 02K5020A

Product features

  • Compressor gas cooler with 1 Jet-Stream heat exchanger made of PVDF
  • With a gas flow rate of max. 1 x 250 Nl/h
  • Explosion-proof version according to ATEX for zone 1
  • Housing designed for up to 4 Jet-Stream heat exchangers
  • Adjustable gas outlet dew point with a stability of < ±0.25 °C [±0.45 °F] at constant conditions
  • With a total cooling capacity of max. 520 kJ/h at +25 °C [+77 °F] ambient temperature
  • Ambient temperature up to +45 °C [+113 °F]
  • With status alarm contact
  • In a 19" rack or wall-mounting housing
  • Power: 115 V
  • Optionally: Jet-Stream heat exchangers, automatic or manual condensate removal
