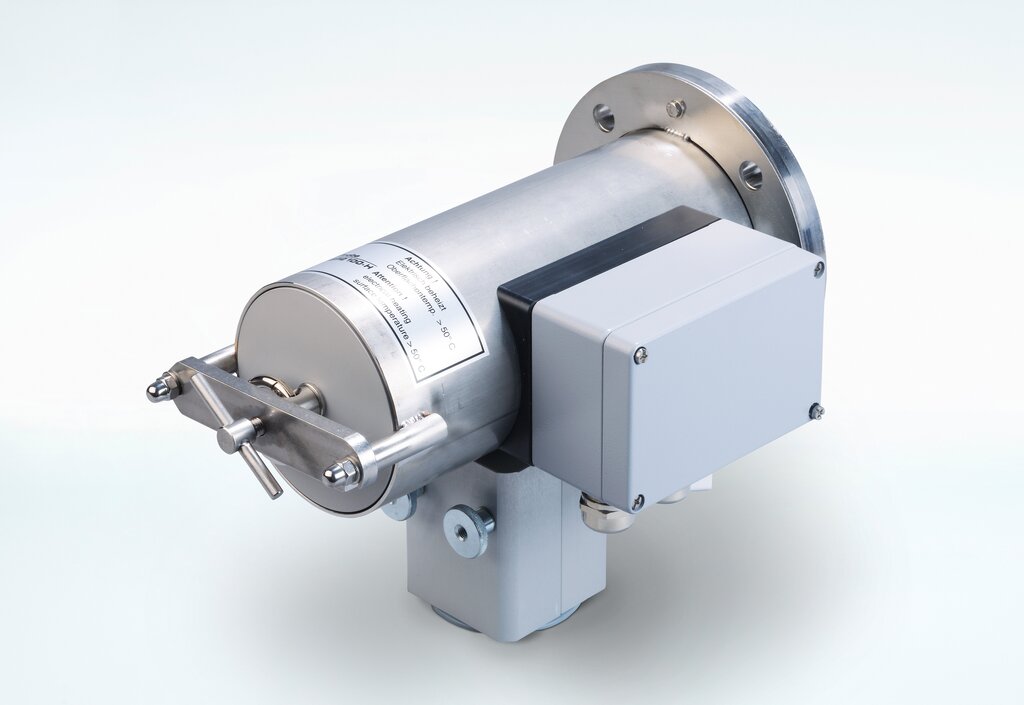

Gas Sample Probe SP2100-H

Part No.: 10S1000

Product features

  • Gas sample probe with self-regulating heater
  • Including stainless steel sample tube in 1 m [≈ 3.3 ft] length, other sample tubes available
  • Filter housing and mounting flange can be heated up to max. 180 °C [356 °F]
  • With low-temperature alarm contact: < 160 °C [320 °F], NO
  • With ceramic filter element, other materials available
  • Small dead volume and fast response time
  • Easy installation and low maintenance
  • Power: 110–240 V
  • Material of sample-contacting parts: stainless steel, FKM, ceramic
  • Optionally: pre-filter, flange for test gas connection

Product information & downloads

Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (° C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the corresponding field. All other fields will immediately show the converted value.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Description
    Gas sample probe type SP2100‑H with external ceramic filter element type S‑2K150, filter porosity: 2 µm, electrical heating of the external filter to 180 °C with self‑regulating heating elements, low‑temperature alarm with potential‑free contact output responding at ‑20 °C below Tset, completely thermally insulated, power: 110‑240 V/50‑60 Hz, 200 W, mounting flange DN 65 PN 6B, with G 3/4" f connection, material: stainless steel, ceramic, Viton®, including 1 m sample tube out of SS 316Ti

Configure the product in 4 steps
