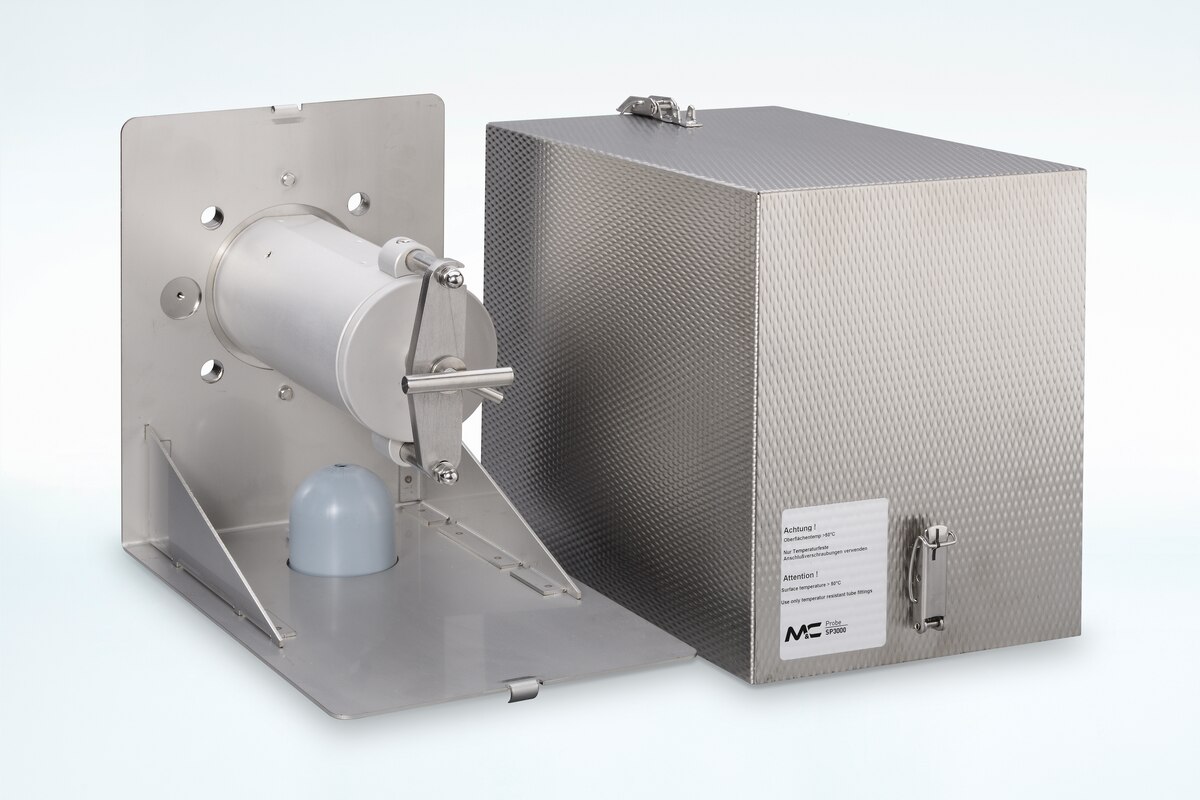

Gas Sample Probe SP3000/Ex, Zone 20/21

Part No.: 20S5500

Product features

  • Gas sample probe for sampling from zones with explosive dust
  • Approval according to ATEX for sampling from dust Ex zones 20, 21 and 22
  • Approval according to ATEX for mounting in Ex zones 1, 2 or 21, 22
  • Stainless steel filter element
  • Sealing material for filter housing lid and flange: graphite
  • Adaption to nearly all process conditions due to its compact and modular design
  • Easy installation and low maintenance
  • Low dead volume
  • Material of sample-contacting parts: stainless steel, graphite
  • Selection of pre-filters which are mandatory for the valid Ex approval (pre-filter not included)
  • Optionally: self-regulating heater, back-purge unit, 2-way or 2/3-way ball valve in the probe inlet, pneumatic actuator for a ball valve, second sample gas outlet, extension tube for pre-filter

Certifications

Product information & downloads

Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (° C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the corresponding field. All other fields will immediately show the converted value.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Description
    Sample probe type SP3000/Ex incl. weather protection shield with insulation, explosion‑proof version for mounting in Ex‑zone 1/2 and 21/22 sampling from Ex‑zone 20/21/22 with protection class according to ATEX, Ex II 1 D / 2 GD EXAM BVS 04 ATEX H 045 X, filter element type S‑3SS150 made of stainless steel, filter porosity: 3 µm, filter element seal out of graphite and cover seal out of graphite, flange DN 65 PN 6, ex‑approval only with pre‑filter series V12/V20 with integrated volume displacer (not included in the standard version)
