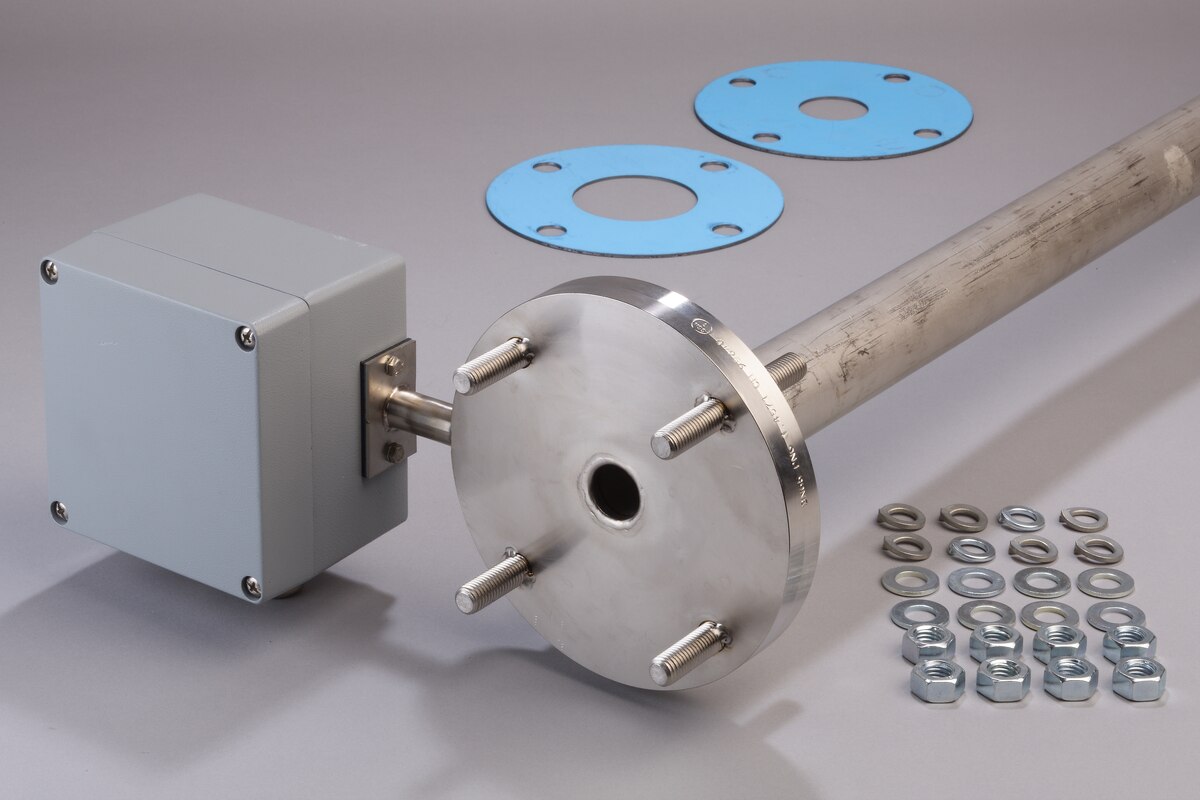

Sample Tube SP35/H2

Part No.: 20S9322

Product features

  • Compact heated double-jacket tube to prevent cold spots at the gas sampling point
  • With mounting flange including 4 welded-in threaded bolts
  • With female G 3/4" thread at the tip of the sample tube for a pre-filter or an extension tube
  • Length: 175 mm [≈ 0.6 ft] w/o mounting flange and w/o female G 3/4" thread
  • Sampling temperature: max. +550 °C [+1022 °F]
  • Operating temperature of the heater: max. +200 °C [+392 °F]
  • Temperature sensor: PT100 2‑wire
  • Power: 230 V
  • Material of sample-contacting parts: stainless steel, Novapress®
  • Optionally: 115 V, external temperature controller, extension tube, pre-filter
