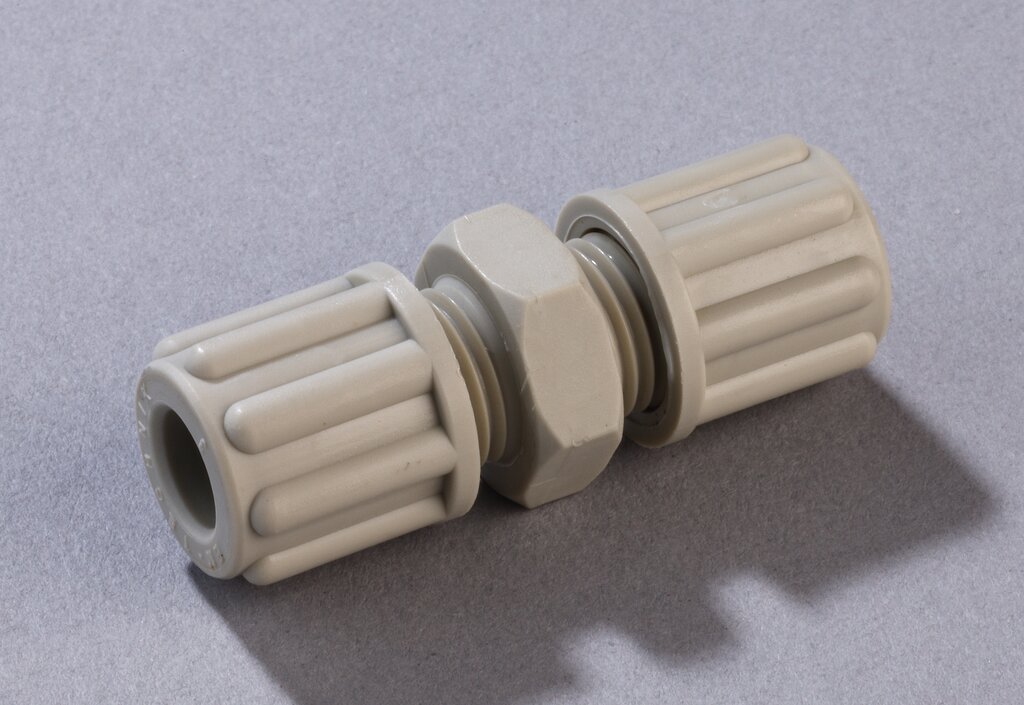

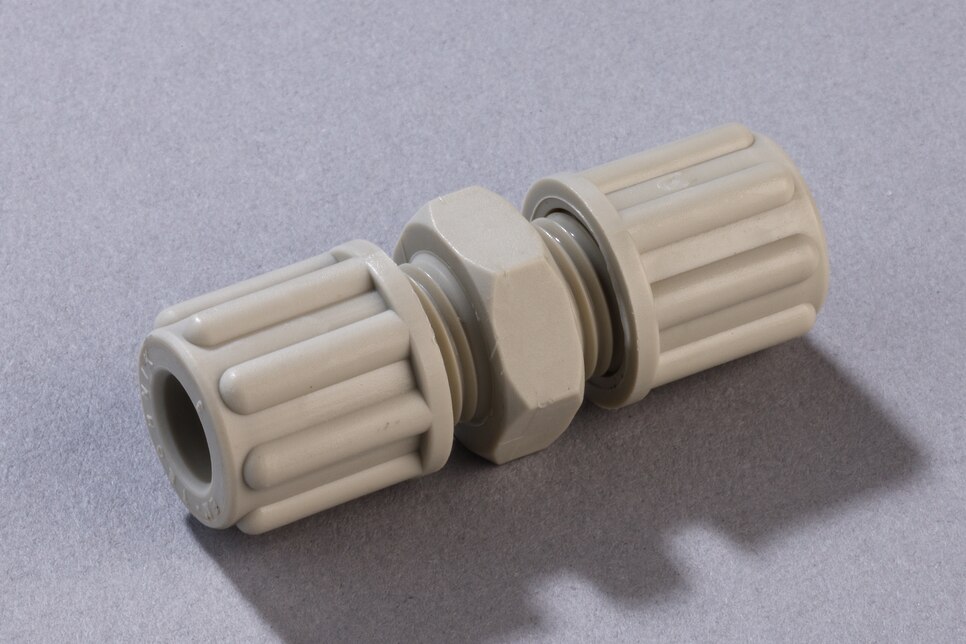

Straight Union VS PP, DN4/6

Part No.: 05V3030

Product features

  • Straight union for flexible tubes
  • Connections for flexible tubes: DN 4/6
  • Corrosion-resistant
  • High level of gas tightness
  • Material of sample-contacting parts: PP
