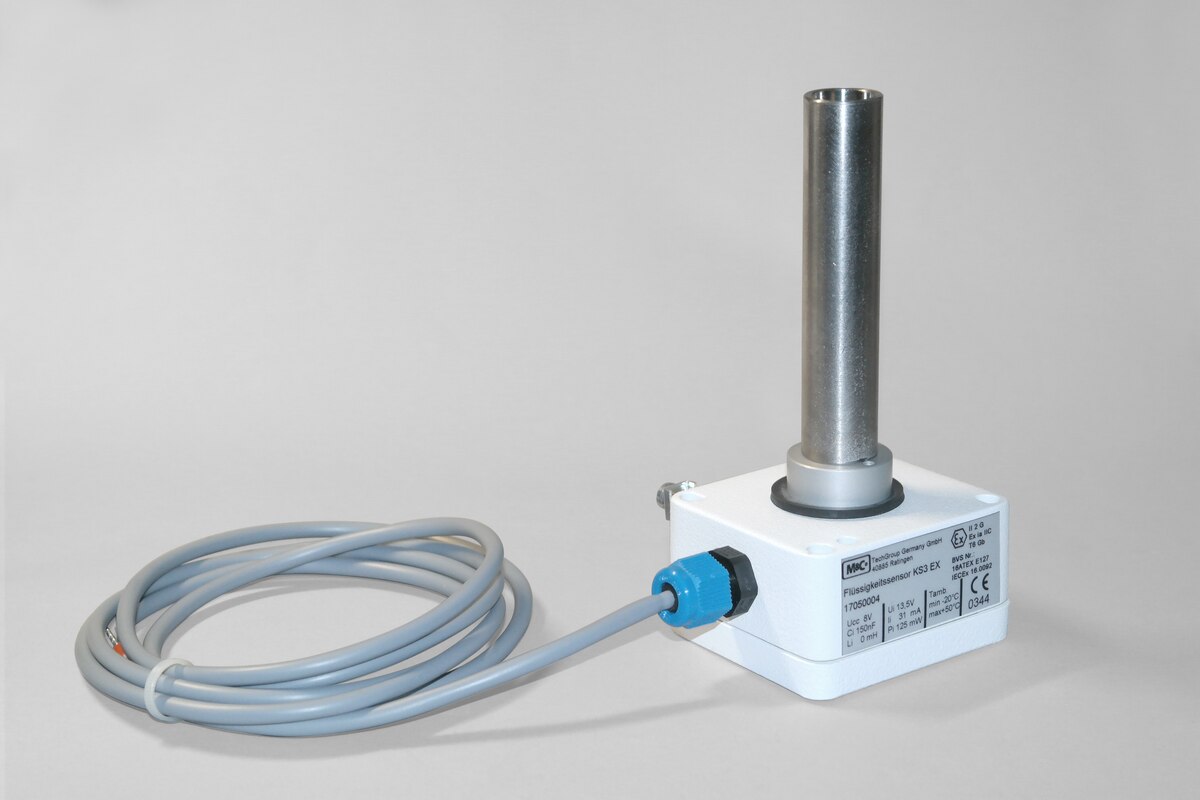

Liquid Alarm Sensor KS3 EX SS PEEK

Part No.: 03E4280

Product features

  • Liquid sensor for conductive and non-conductive media
  • Explosion proof version according to ATEX for zone 1
  • Can be integrated in M&C stainless steel universal filters with 1/2" NPT condensate connection
  • Connection: ø 18 mm
  • Operating pressure: max. 11 bar abs.
  • With 1.5 m electrical connecting cable
  • Material of sample-contacting parts: PEEK, stainless steel, Chemraz®

Certifications

Product information & downloads

Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (° C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the corresponding field. All other fields will immediately show the converted value.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Description
    Liquid sensor type KS3/SS .Ex for non‑conductive media, explosion‑proof version for Ex‑Zone 1 with protection class according to ATEX II 2G Ex ia IIC T6 Gb BVS 16 ATEX E 127 IECEx BVS 16.0092, diameter: 18 mm, operating pressure: 11 bar, material: PEEK, Chemraz®, SS 316 Ti, for installation in the filter pot type F‑120SS‑D NPT1/2" (90F0137N) or CLF‑SS NPT1/2" (C50009)
