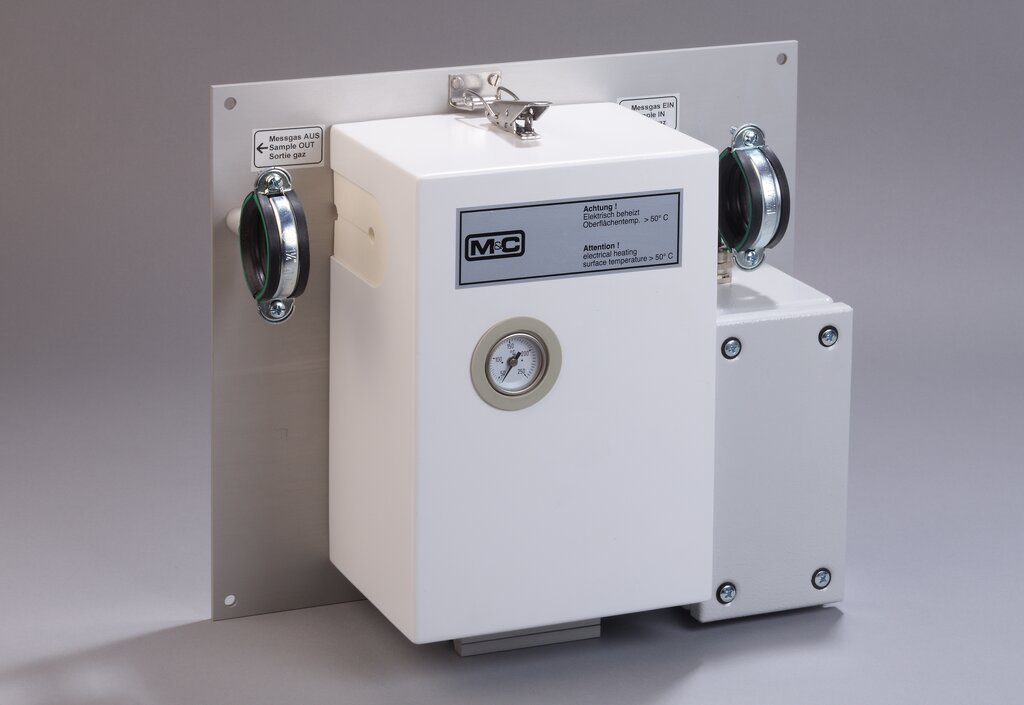

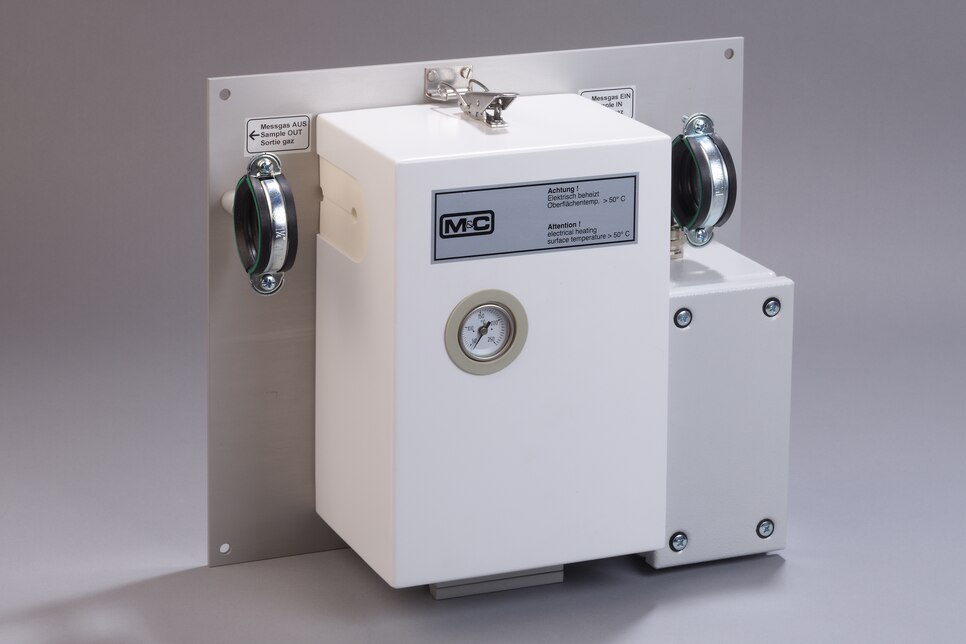

Universal Filter FT-3G-H2, heated

Part No.: 01F3006

Product features

  • Electrically heated universal filter with integrated thermostat
  • Heated up to max. +180 °C [+356 °F]
  • Filter head made of carbon-reinforced PTFE
  • Deep-acting glass filter element with a filter porosity of 3 μm
  • Control thermostat with high-temperature limiter and low-temperature alarm contact
  • With thermally insulated protective housing
  • On a heat-decoupled mounting plate for wall mounting
  • With heated connection fittings to prevent cold bridges
  • 2 gas connections: female threaded G 1/4"
  • Power: 230 V
  • Material of sample-contacting parts: glass, carbon-reinforced PTFE, Viton®

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Applications
    The M&C electrically heated universal filter is used for the separation of solid contaminants in analytical technology up to max. 180 °C operating temperature. Filter elements with high filter porosity and great in-depth effect are used for efficient filtration of ultrafine particles.
  • Description
    Universal filter type FT‑3G‑H2, heated to max. 180 °C, heating section divided into 2 parts with heated inlets, mounted on a base plate with heat‑insulated cover, incl. temperature controller, adjustable from 0 to 180 °C, with high‑temperature limiter and low‑temperature alarm (each 30 °C to temperature setpoint\fs16 ), thermometer, filter head made of carbon‑fiber PTFE, with in‑depth glass filter element, filter porosity: 3 µm, connection: G 1/4" female, material: PTFE, glass, Viton®, power: 230 V/50 Hz
  • Product features
    Type Universal heated
    Housing material PTFE/glass
    Filter material Glass
    Condensate outlet No
    Power supply 220‒240 V
