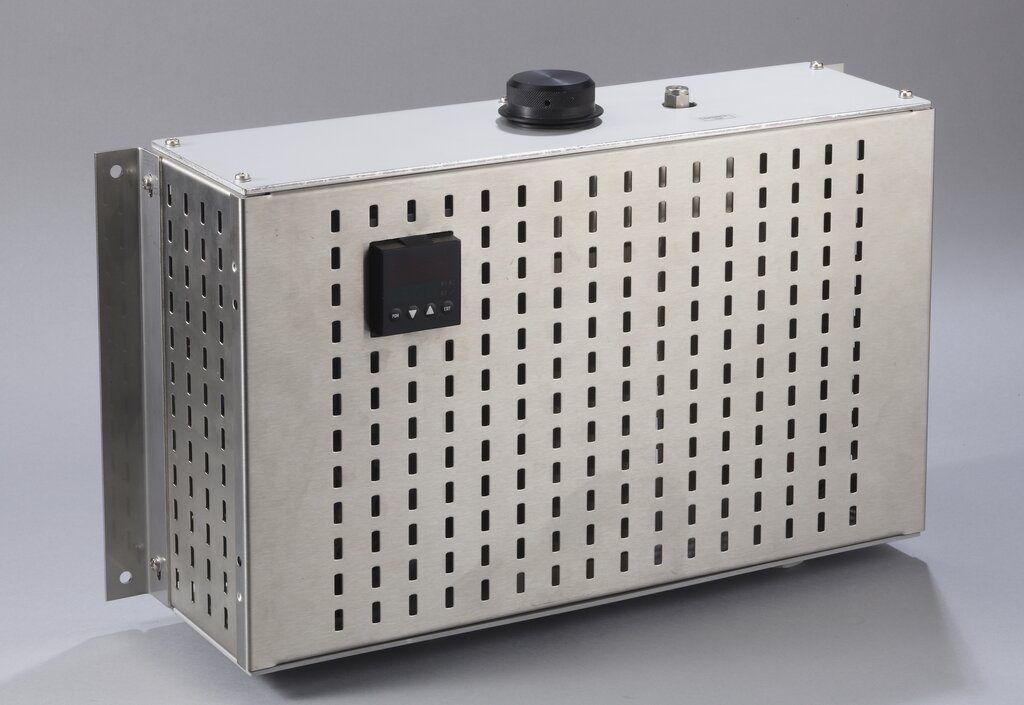

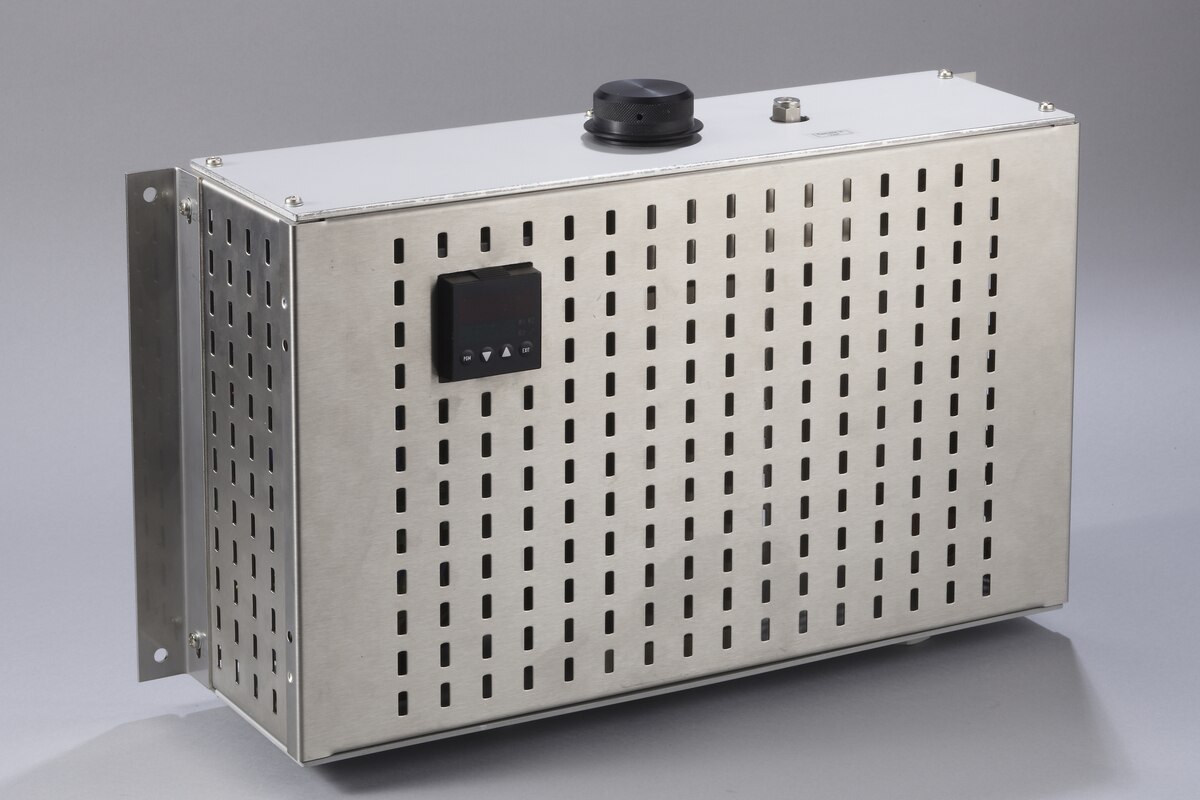

Gas Converter CG-2H-W

Part No.: 50A1900

Product features

  • NO2 converter in a wall-mounting housing
  • With heated gas inlet and outlet
  • High-flow capacity
  • Long service life
  • Catalyst cartridge easy to change without any tools
  • Operating temperature adjustable up to +680 °C [+ 1256 °F]
  • Power: 230 V
  • Material of sample-contacting parts: stainless steel, Viton®, PVDF, PTFE

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    Without bypass valves for bypassing the catalyst cartridge, power: 115 V/60 Hz or 230 V/50 Hz

  • Applications
    In many countries, clean-air regulations require a continuous measurement of nitrogen oxides NOx, as the sum of nitrogen dioxide NO2 and nitrogen monoxide NO, for combustion processes as soon as the share of NO2 exceeds 5 % of the total NOx emission. Due to the conversion to NO, the use of a standard NO analyzer is possible.
  • Description
    Gas converter type CG‑2H‑W for wall mounting, with heated sample gas inlet, without bypass valve, thermally insulated compact tube furnace, electrically heated with thermocouple Ni‑CrNi and electronic temperature controller, adjustable from 50 to 680 °C, with high and low‑temperature alarm, gas inlet: 6 mm SS or on request 8 mm SS, gas outlet: 6 mm SS, material: SS 316Ti, Viton®, PVDF, PTFE, power: 230 V/50 Hz, 610 VA without catalyst cartridge
  • Product features
    Heating Yes
    Solenoid valve No
    Power supply 220‒240 V
