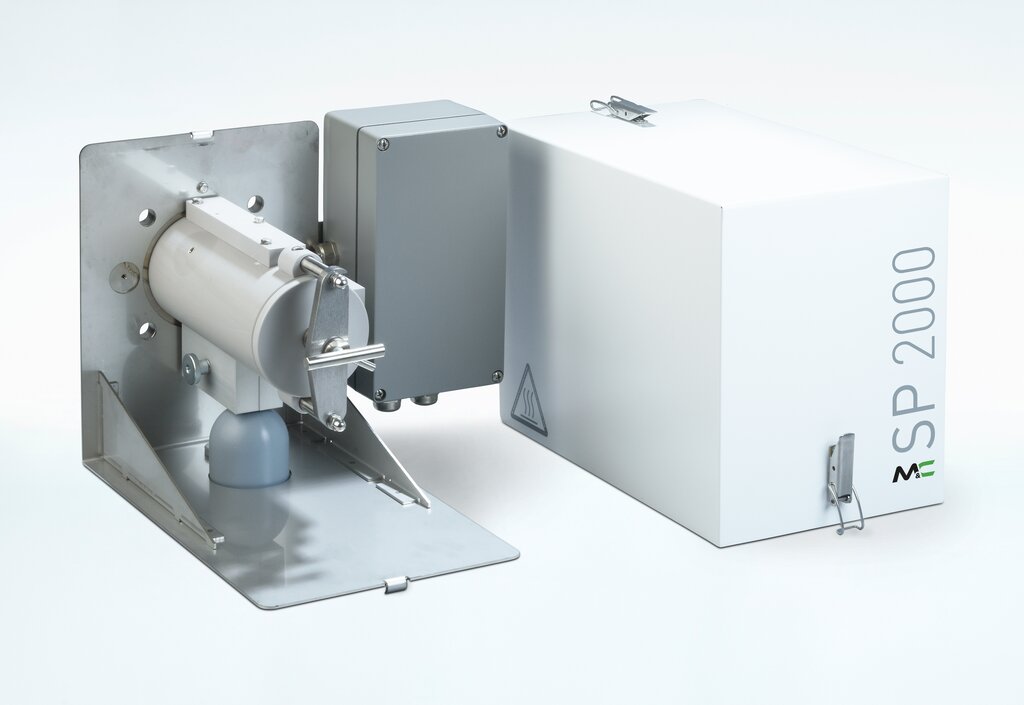

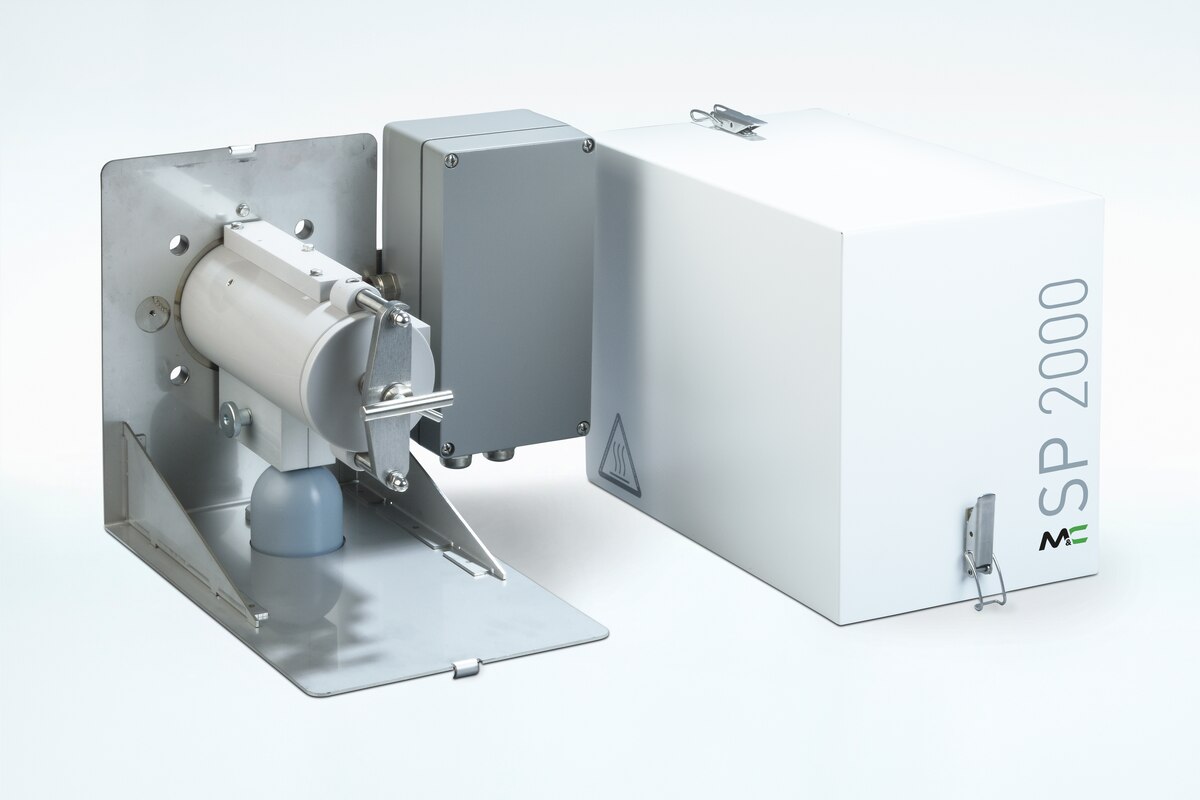

Gas Sample Probe SP2000-H

Part No.: 20S2000

Product features

  • Heated gas sample probe with filter housing and mounting flange made of stainless steel
  • Including weather protective cover
  • Filter housing and mounting flange can be heated up to max. 180 °C [356 °F]
  • With ceramic filter element, other filter materials are optional
  • Adaption to nearly all process conditions due to its compact and modular design
  • Easy installation and low maintenance
  • Low dead volume
  • Power: 230 V
  • Material of sample-contacting parts: stainless steel, FKM, Novapress®, ceramic
  • Basic version with a large variety of available options

Product information & downloads

Spare parts
Gas Sample Probe SP2000-H

Filter element S-2K150
Part No.: 90S0020

Filter element type S‑2K150, length: 150 mm, material: ceramics, filter porosity: 2 µm

Filter element F-0,1GF150
Part No.: 90F0125

Filter element type F‑0,1GF150, length: 150 mm, material: glass fiber, filter porosity: 0.1 µm

Special spun glass for probes with /FW
Part No.: 93S2083

Special spun‑glass high‑temperature resistant for probes with /FW insert, contents: 1000 g

SP2000-H/FW, spun-glass receptacle
Part No.: 93S2096

Spun‑glass receptacle FW with demister, stainless steel, without filling

Gasket 30, Viton
Part No.: 93S0045

Gasket (30) for filter element, material: Viton

Adapter ring F-0,1GF, probe, PTFE
Part No.: 93S0051

Adapter ring for probe filter element F‑0,1GF150, material: PTFE

Gasket 30, graphite
Part No.: 93S0055

Gasket (30) for filter element, material: graphite

O-Ring, Viton, 39,00x3,50
Part No.: 93S0020

O‑ring (39) for SP2000 and CLF, material: Viton®

O-Ring, Viton, 55,00x3,50
Part No.: 93S0025

O‑ring (55) for SP2000, material: Viton®

Sealing ring (39), SP2000/7AT, PTFE
Part No.: 93S0035

Sealing spiral o‑ring (39) for SP2000/7AT, material: PTFE

Gasket 69, graphite
Part No.: 93S0030

Gasket (69) for SP2000‑H320, material: graphite

Flange gasket, Novapress, 3" ANSI
Part No.: 93S2350

Flange gasket 3" ANSI

Flange seal DN65 PN6 (67), graphite
Part No.: 90S2084

Flange seal DN 65 PN 6, graphite (67)

Sealing ring (55), SP2000/7aT, PTFE
Part No.: 93S0040

Sealing spiral o‑ring (55) for SP2000/7aT, material: PTFE

Flange gasket DN 65 PN 6 (67), Novapress
Part No.: 90S2077

Flange gasket DN 65 PN 6B (67), material: Novapress

Flange gasket set DN 65 (67), nova
Part No.: 90S2075

Flange gasket set for DN 65 PN 6B consisting of gasket (67) and a set of screws M12 x 60

SP2000-H Thermostat 0-180 °C
Part No.: 93S0010

Thermostat (0‑180°C), with high temperature limiter and low temperature alarm for probe series SP

SP2000-H, thermostat, 0-320 °C
Part No.: 93S0011

Thermostat (0 to 320 °C) with high temperature limiter and low temperature alarm for probe series SP

Heat sink compound, 100 g
Part No.: 93S0018

Temperature‑resistant heat sink compound, 100 g tube

Heating cartridge, SP2000-H, 230 V/800 W
Part No.: 93S0015

Heating cartridge for SP2000‑H, length: 160 mm, 230 V/800 W

Heating cartridge, SP2000-H 115 V/800 W
Part No.: 93S0017

Heating cartridge for SP2000‑H, length: 160 mm, 115 V AC/800 W

SP2000-H/PT100 (spare)
Part No.: 93S0059

PT100 sensor for SP2000H, SP3200

Thermocouple, Fe-CuNi type J
Part No.: 93S0060

Spare thermocouple Fe‑CuNi for SP‑/H320

Thermocouple, NiCr-Ni, type K
Part No.: 93S0061

Spare thermocouple NiCr‑Ni for SP

SP2000-H/Alu body for heating cartridge
Part No.: 93S0019

Aluminium body for heating cartridge SP2000H

SP2000, press screw M8
Part No.: 93S0085

Press screw M8 for filter housing lid, SP2000/2100‑H

SP2000, clamp LK115
Part No.: 93S2125

Clamp LK 115 for filter housing lid SP2000H

Mounting clip 1 1/4"
Part No.: 93S0065

Mounting clip 1 1/4" for heated sample line and SP2000‑H

Filter housing lid, SP2000
Part No.: 93S2085

Filter housing lid completely for SP2000‑H with Viton O‑ring, filter holder and press screw up to serial‑No.10282

Filter housing lid, SP2000/7aT
Part No.: 93S2087

Filter housing lid completely for SP2000/7aT, with PTFE gasket lid seal, filter holder and pressure screw, up to Serial No. 10283

Filter housing lid, SP2000-H/FW
Part No.: 93S2080

Filter housing lid completely for SP2000‑H/FW, spun‑glass receptacle without filling, with Viton O‑rings and flat gasket made of Novapress, up to Serial No. 10283

Filter housing lid, SP2000-H320/FW
Part No.: 93S2081

Filter housing lid, completely for SP2000‑H320/FW, with graphite sealing, spun‑glass receptacle without filling, up to Serial No. 10283

Filter housing lid, SP2000-H320
Part No.: 93S2086

Filter housing lid completely for SP2000./320 with graphite flat gasket, filter holder and pressure screw, up to serial no. 10283

SP2000, filter screw M 6
Part No.: 93S2084

Filter screw M 6 for SP2000, material: SS 316 Ti

SP2000-H, hand screw M6
Part No.: 93S0090

Hand screw M6 for SP2000 connection protection

SP2000-H/R or/C, blowback valve
Part No.: 93S0100

Spare blowback/calibration gas valve for probe type SP2XXX and SP3XXX with integrated filter, working pressure: 0.7 bar, connection: 1/4" NPT DN 4/6, material: SS316, Viton®

SP2000-H, weather protection shield
Part No.: 93S0070

Spare weather protection shield for SP2000‑H and SP2000‑H/DIL

SP2000H320C, weather protection shield
Part No.: 93S0075

Weather protection shield for SP2000‑H320 and SP2000‑H320/DIL

Support sleeve 4 mm, SS 316Ti
Part No.: 02B1010

Support sleeve 4 mm OD for PTFE tube DN 4/6, material: SS 316 Ti

Support sleeve 6 mm, SS 316Ti
Part No.: 02B1020

Support sleeve 6 mm OD for PTFE tube DN 6/8, material: SS 316 Ti

SP2000-H, silicone cap, sample out
Part No.: 93S0073

Silicone cap, SP2000H/210, sample out, material: Silicone grey

SP2000 ring w. screw adapter for lid
Part No.: 93S0086

Ring with screw adapter for filter housing lid SP2000/2100‑H

SP2000-H, toggle fastener, NEW 04/04
Part No.: 93S0081

Toggle fastener completely for filter housing lid SP2000‑H, from 4/04

Filter housing lid N, SP2000-H/FW
Part No.: 93S1980

Filter housing lid complete for SP2000‑H/FW, spun‑glass receptacle without filling, with Viton O‑rings and flat gasket made of Novapress 3/4", from Serial No.10283

Filter housing lid N, SP2000-H320/FW
Part No.: 93S1981

Filter housing lid completely for SP2000‑H320/FW, with graphite sealing, spun‑glass receptacle without filling, from Serial No. 10283

Filter housing lid N, SP2000
Part No.: 93S1985

Filter housing lid completely with viton‑o‑ring, filterholder and press screw, from S.‑No. 10283

Filter housing lid N, SP2000-H320
Part No.: 93S1986

Filter housing lid completely for SP2000‑H320 with graphite gasket, filter and pressure screw, Serial No.10283

Filter housing lid N, SP2000/7aT
Part No.: 93S1987

Filter housing lid, completely for SP2000./7aT, with PTFE gasket lid seal filter element clamp, from Serial No.10283

Filter housing lid N, SP2000H/SS304
Part No.: 93S1992

Filter housing lid completely for SP2000H/SS304, with Viton O‑ring, filter holder and press screw, from Serial No. 10283

Filter housing lid N, SP2000-H320/SS304
Part No.: 93S1993

Filter housing lid completely for SP2000‑H320/SS304, with graphite flat gasket, filter holder and pressure screw, from Serial No. 10283

Clamp clip NEW, SP2000, 04/04
Part No.: 93S0083

Clamp clip NEW, 04/04, SP2000

SP2000H320/R-1/4" blowback valve
Part No.: 93S0102

Blowback/calibration gas valve for SP2000H320/R with integrated filter, working pressure: 0.7 bar, connection: Swagelok for tube 1/4" o.d., material: SS316, Viton

SP2000H320/R, 6 mm blowback valve
Part No.: 93S0101

Blowback/calibration gas valve for SP2000H320/R with integrated filter, working pressure: 0.7 bar, connection: Swagelok for tube 6 mm o.d., material: SS 316, Viton, blowback valve SP2000H320/R tube 6 mm o.d.

Options
Gas Sample Probe SP2000-H

SP2000-H/SP2xxx-H, 115 V, option
Part No.: 20S9030

Option: probe series SP2000/2xxx‑H with power supply: 115 V/60 Hz (except for Ex probes)

SP2000/7aT, PTFE-O-R, option
Part No.: 20S9010

Option: probe type SP2000/7aT, filter housing cover with special PTFE sealing rings instead of O‑rings out of Viton® and filter element sealing out of PTFE

SP2000/2x, 2nd outlet, option
Part No.: 20S9015

Option: probe type SP2000/2x, 2nd sample gas outlet, connection: 1/4" NPT female

SP2000-H/R & 2500-H/R, option
Part No.: 20S9045

Option: probe type SP2000‑H/2500‑H/R with gas valve for backpurging or calibration gas with integrated filter, opening pressure: 0.7 bar, connection: tube 6 mm, material: SS 316Ti, Viton®

SP2400-H/R-Ti, option
Part No.: 20S9048

Option: probe SP2400/R‑Ti, backpurging/calibration gas valve with integrated protection filter out of Hastelloy C®, opening pressure: 0.7 bar, max. 500 Nl/h, connection 1/4" NPT f, material: titanium, Viton®, Hastelloy C®

SP2000/GVW1, option
Part No.: 20S9058

Option: probe SP2000/GVW1, gas pre‑heater GVW1 out of stainless steel, for mounting on the probe, the connection to backpurging /R valve is optionally available

SP2000/GVW, mounting price, option
Part No.: 20S9062

Option: probe SP2000/GVW, connection of the gas pre‑heater to valve /R and gas inlet with 6‑mm tube, at the probe SP2200‑H/C/I/BB, the pre‑heater is connected with the blowback valve /BB, material: SS 316Ti

SP2000/GVW2, SS316
Part No.: 20S9060

Gas pre‑heater twin type for mounting on the probe SP2000/GVW2, dwg‑no. 2246‑2.06.0, material: SS 316Ti

SP2000/GF150, 0.1 µm GF, option
Part No.: 20S9020

Option: probe SP2000/GF150, special filter element adapter and ultra‑fine glass‑fiber filter element 0.1 GF150, filter porosity: 0.1 µm, filter element sealing: PTFE glass‑fiber reinforced

SP2000-H/FW, spun glass, option
Part No.: 20S9047

Option: probe SP2000‑H/FW with special filter housing cover including Viton® O‑rings and screw‑on spun‑glass receptacle with Novapress gasket, incl. spun‑glass filling, for diesel generators or similar sooty applications

SP2000-H320/FW, spun glass, option
Part No.: 20S9046

Option: probe SP2000‑H320/FW with special filter housing cover with graphite gaskets and screw‑on spun‑glass receptacle, incl. spun‑glass filling, for diesel generators or similar sooty applications

SP2000-H320/C, FeCuNi, option
Part No.: 20S9022

Option: probe SP2000‑H320/C, special version with electrically heated external filter from 0 to 320 °C with thermocouple FeCuNi, filter element seal and cover seal out of graphite, calibration gas connection: 6 mm tube with plug, sample outlet: 6 mm tube (a temperature controller to be mounted externally is not included in the standard scope of delivery)

SP2000-H320/C, thermostat, option
Part No.: 20S9021

Option: probe SP2000‑H320/C, special version with electrically heated external filter from 0 to 320 °C, with thermostat, filter element seal and cover seal out of graphite, calibration gas connection: 6 mm tube with blind plug, sample outlet: 6 mm tube

SP2000-H/PT100, instead of thermostat
Part No.: 20S9025

Version for probe SP2000‑H/PT100 with PT100 sensor instead of thermostat, without temperature controller

SP2000/Fe-CuNi instead of thermostat
Part No.: 20S9027

Version probe SP2000/FeCuNi, J‑type with thermocouple instead of capillary thermostat without temperature controller

SP2000/NiCr-Ni instead of thermostat
Part No.: 20S9028

Version for probe SP2000/Ni‑CrNi with thermocouple type K instead of capillary thermostat without temperature controller

SP2000-H/SP30, 2nd PT100, option
Part No.: 20S9026

Option: additional PT100 sensor for heated probes and sample tubes (without temperature controller)

SP2000-H/D, option
Part No.: 20S9033

Option: SP2000‑H/D, steam‑heated instead of capillary thermostat, without controller and valves

SP2000/HP 25 bar, option
Part No.: 20S9017

Option: probe type SP2000/HP incl. 2‑way ball‑valve, max. pressure: 25 bar, flange: DN 50 PN 25

SP2000/FL DN/ANSI flange up to 3", option
Part No.: 20S9004

Option: adapter flange for probe series SP2000, DN ../PN.. or ANSI ../..lbs, material: SS 316Ti

SP2000/SO1 mounting fitting
Part No.: 20S9005

Threaded mounting fitting for probe SP2000/So 1. R 2"a ‑ DIN 2999/1 or upon request 2" NPT m* with connection thread G 3/4" f/G 3/4" m incl. sealing ring 3/4", material: stainless steel 1.4571

SP2000-H/VA, 2-way ball valve, option
Part No.: 20S9050

Option: probe SP2000‑H/VA, integrated 2‑way‑ball valve for shut‑off at sample inlet, heatable up to max. 180 °C, external operation by rotary handle, material: SS 316, PTFE

SP2000-H/VA320, 2-way ball valve, option
Part No.: 20S9053

Option: probe SP2000/VA320 with integrated 2‑way ball‑valve at the gas inlet, heatable up to 320 °C, operation by rotary handle, material: SS 316, Inconel®, Grafoil 17‑4 pH

SP2000-H/3VA, 3-way ball valve, option
Part No.: 20S9325

Option: for probe SP2000/3VA, integrated 3‑way ball valve with T‑function at sample inlet, heatable up to 180 °C, external operation per rotary handle with 3 positions, with pre‑heated coil made of stainless steel for blowback/calibration gas, connection: tube 6 mm, material: SS 316, PTFE, please indicate the function when ordering (blowback or calibration)

SP2000/MS1, option
Part No.: 20S9055

Option: probe SP2000/MS1 pneumatic drive MS1 with spring reverse, for ball valves /VA + /3VA, function: 2‑way ball‑valve /VA closed without pressure (NC) or * on request open (NO) 3‑way ball‑valve /3VA closed without pressure (NC) or * on request open (NO) and blowback (B) to the process or * calibration gas (C), please specify when ordering

SP2000-H/3VA320, 3-way ball valve, option
Part No.: 20S9330

Option: probe SP2000/3VA320, integrated 3‑way ball valve with T‑function at sample inlet, heatable up to 320 °C, external operation per rotary handle with 3 positions, with pre‑heated coil made of stainless steel for blowback‑/calibration gas, connection: tube 6 mm, material: SS 316, Inconel®, Grafoil® 17‑4 pH, please indicate blowback or calibration function when ordering

SP2000/MS1/position, option
Part No.: 20S9054

Option: probe SP2000/MS1(3)/PI 2 inductive slot sensors for position detection, EX II 1G Ex ia IIC T6 Ga, Namur version, evaluation with 2 switch amplifiers KFA6EX1 or equivalent switch amplifiers, protection class IP65, a mbient temperature: ‑25 to +70 °C, cable gland M 20

SP2000, controller 234B/ZR/00, option
Part No.: 20S9370

Option: probe SP2000/.VA/MS or SP2200/C/I/BB, control type 234B/ZR/00 integrated in the solenoid unit for automatically timed blowback with electronic two‑stage cycler (pause time max. 300 h) and cycle timer for pulsed blowback, status signal contact delayed after blowback, mounted in a GFRP housing, power: 230 V/50 Hz (24 V DC on request)

SP2000/EA, electrical actuator, 230 V
Part No.: 20S9342

Electrical actuator SP2000/EA230 for probe with integrated ball valve/VA (3 VA), for 2 operating states (90°) (incl. feedback) via integrated terminals for external control, power: 230 V/50 Hz

SP2000/EA, electrical actuator, 24 V DC
Part No.: 20S9342D

Electrical actuator SP2000/EA24 for probe with integrated ball valve/VA (3VA) for 2 operating states (90°) (incl. feedback) via integrated terminals for external control, power: 24 V DC

SP2000/EA, 2 add. pot.-free contacts
Part No.: 20S9343

Two additional potential‑free contacts for indicating status OPEN/CLOSED for electrical actuator type/EA

Filter element F-0,05SIC150
Part No.: 90F0555

Filter element type F‑0,05SIC, length: 150 mm, material: ceramic, filter porosity: 0.05 µm

SP3000/I, shut-off valve, option
Part No.: 20S9009

Option: probe type SP3000/I with pneumatic bellows shut‑off valve SP2000H/I, completely mounted at the sample outlet of the probe, material: SS 316Ti, PEEK

SP2000/C, calibration valve, option
Part No.: 20S9011

Option: probe type SP2000/C with valve for calibration gas with integrated filter, opening pressure: 0.7 bar, connection: tube 6 mm, material: SS 316Ti, Viton®

SP3000/BB, blowback valve, option
Part No.: 20S9008

Option: probe type SP3000/BB with blowback valve and integrated filter, opening pressure: 0.7 bar, connection: tube 8 mm, material: SS 316Ti, Viton®

SP3000/BB-F, blowback valve, option
Part No.: 20S9006

Option: probe type SP3000/2020/BB‑F with blowback valve and integrated filter, opening pressure: 0.7 bar, connection: tube 8 mm, material: SS 316Ti, Viton®

SP2000/MS3, pneum. drive 320°, option
Part No.: 20S9056

Option: probe SP2000/VA/MS3, pneumatic drive MS for ball valve VA, 320 °C, actuating pressure: 6 bar, closed without pressure NC or on request open without pressure NO, please specify when ordering

SP2000-H/SP2xxx-H, 380 V, Option
Part No.: 20S9430

Option: probe series SP2000/2xxx‑H with power supply 380 V/50 Hz (except for Ex probes)

SP2000-H320/R, option
Part No.: 20S9044

Option: probe type SP2000‑H320/R backpurging/calibration gas valve, opening pressure: 0.7 bar, connection: tube 6 mm, material: SS 316Ti, Viton®

Configure the product in 4 steps
