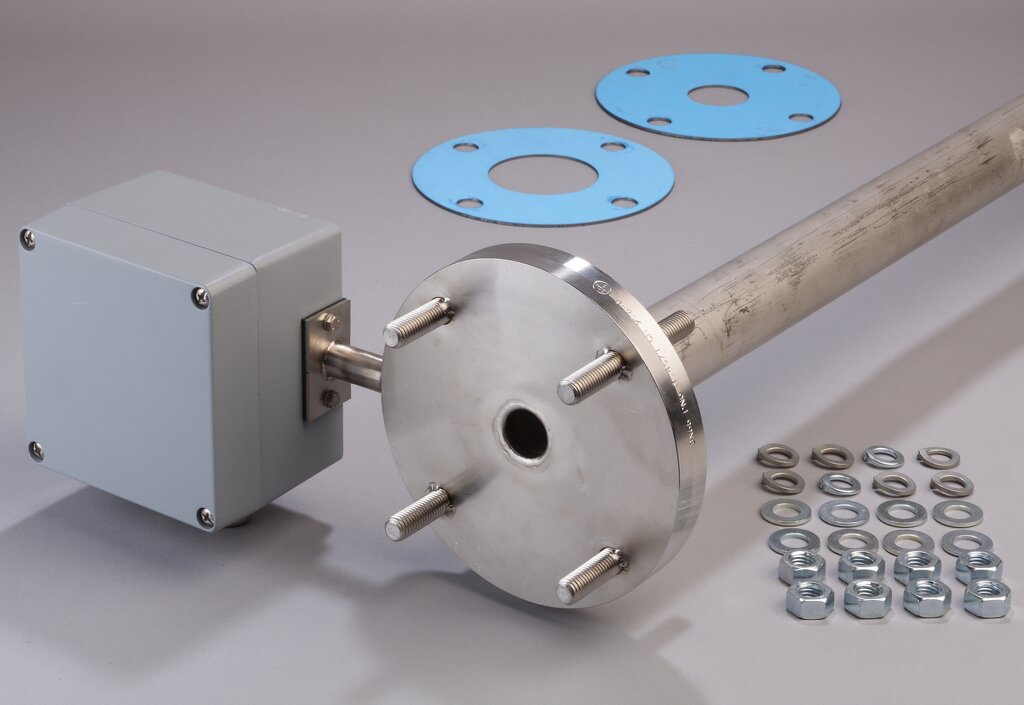

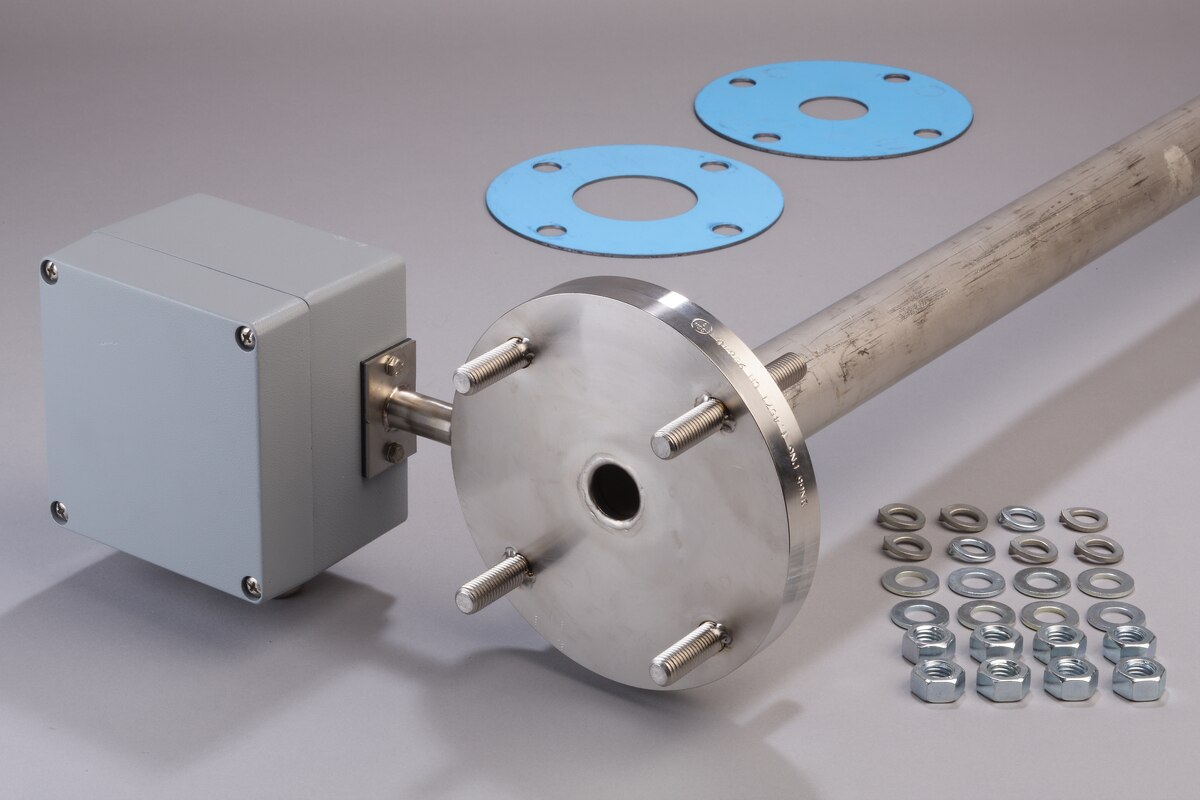

Sample Tube SP30-H2

Part No.: 02S9025P

Product features

  • Completely heated double-jacket tube for gas sampling
  • With mounting flange including 4 welded-in threaded bolts
  • With female G 3/4" thread at the tip of the sample tube for a pre-filter or an extension tube
  • Length: 1 m [≈ 3.3 ft] w/o mounting flange and w/o female G 3/4" thread
  • Sampling temperature: max. +550 °C [+1022 °F]
  • Operating temperature of the heater: max. +200 °C [+392 °F]
  • Temperature sensor: PT100 2‑wire
  • Power: 230 V/115 V switchable
  • Material of sample-contacting parts: stainless steel, Novapress®
  • Optionally: external temperature controller, extension tube, heated or non-heated pre-filter

Product information & downloads

Manual
Data sheet
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    Stainless steel, power: 230/115 V, 50/60 Hz, in different lengths, up to 200 °C resp. max. 550 °C process temperature, in order to avoid condensation between the sample point and probe head

  • Applications
    The electrically heated M&C sample probe tube SP30-H... is used in sampling systems to avoid cooling and condensation of the sample in the in-situ tube from the sample point to the heated sample probe SP2000-H. To avoid a premature damage by cooling and condensation in dust-loaded processes that tend to fall below the dew point in the sampling area during operation or when the plant is at a standstill, we recommend using the electrically heated tube type SP30-H1.1-V with the heated in-situ pre-filter V20-2/30.
  • Description
    Heated sample tube SP30‑H2, electrical heating of the double‑jacket tube from 0 to 200 °C, temperature sensor Pt100, mounting flange DN 65 PN B, including 4 welded‑in threaded bolts, flange seal and fixing nuts, female threaded G 3/4" connection for the installation of the sample tube or pre‑filter, length: 1 m, operating temperature: max. 200 °C, material: SS 904 L, power: 115 V/230 V, 50/60 Hz, power: 800 W, external temperature controller not included in the standard scope of delivery
