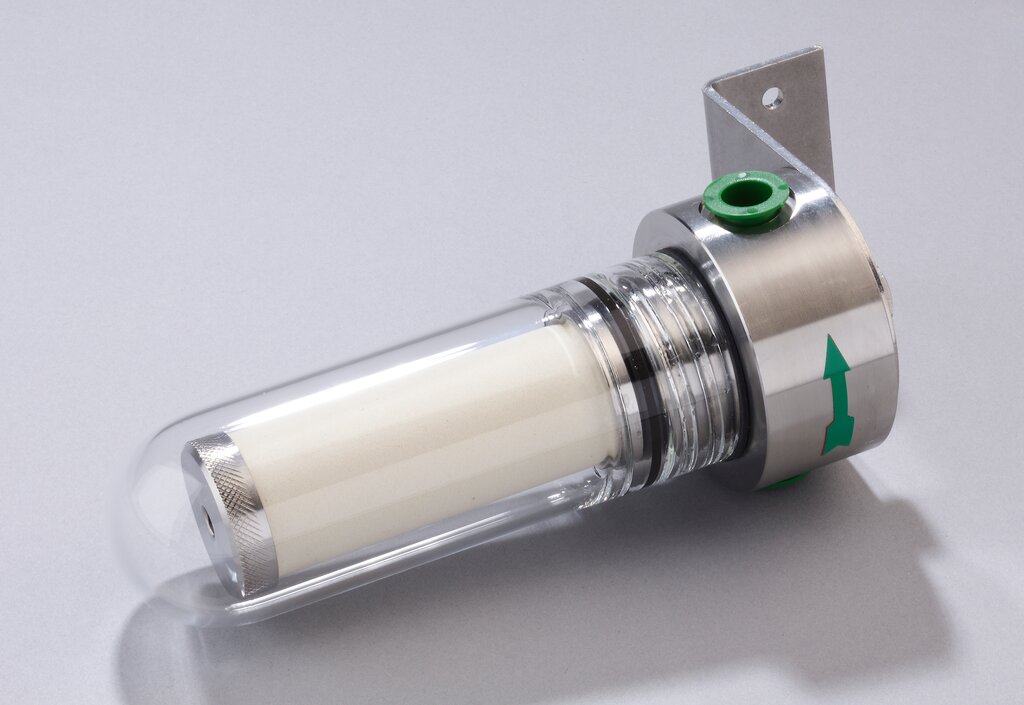

Universal Filter FS-2K

Part No.: 01F5000

Product features

  • Modular designed filter with filter head made of stainless steel
  • Deep-acting ceramic filter element with a filter porosity of 2 µm
  • High separation efficiency at low differential pressure
  • With wall-mounting bracket
  • Straightforward filter element change without tools
  • Low dead volume
  • 3 female threaded gas connections: G 1/4"
  • Sample gas and ambient temperature: max. +180 °C [+356 °F]
  • Material of sample-contacting parts: ceramic, stainless steel, Viton®, glass



Product information & downloads

Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    Material: stainless steel, glass, filter elements in different materials and porosities, with or without condensate connection, also with liquid alarm sensor

  • Applications
    M&C universal filters reliably separate solids, in particular extremely fine particles, occurring in analytical technology in gas filtration, using very fine, deep-acting filter elements. Thanks to their universal design, the filters can also be used as separators (without a filter element), liquid filters or, with adsorption cartridges, as an adsorption filter. For ambient or medium temperatures of up to 180 °C, a stainless steel version FSS or the FT-H version can be offered.
  • Description
    Universal filter type FS‑2K with filter head and filter holder made of stainless steel and in‑depth ceramic filter element, filter porosity: 2 µm, connection: G 1/4" female, material: stainless steel 316 Ti, Viton®, glass, ceramic
  • Product features
    Type Universal
    Housing material Stainless steel/glass
    Filter material Ceramic
    Condensate outlet No
    Power supply Without
