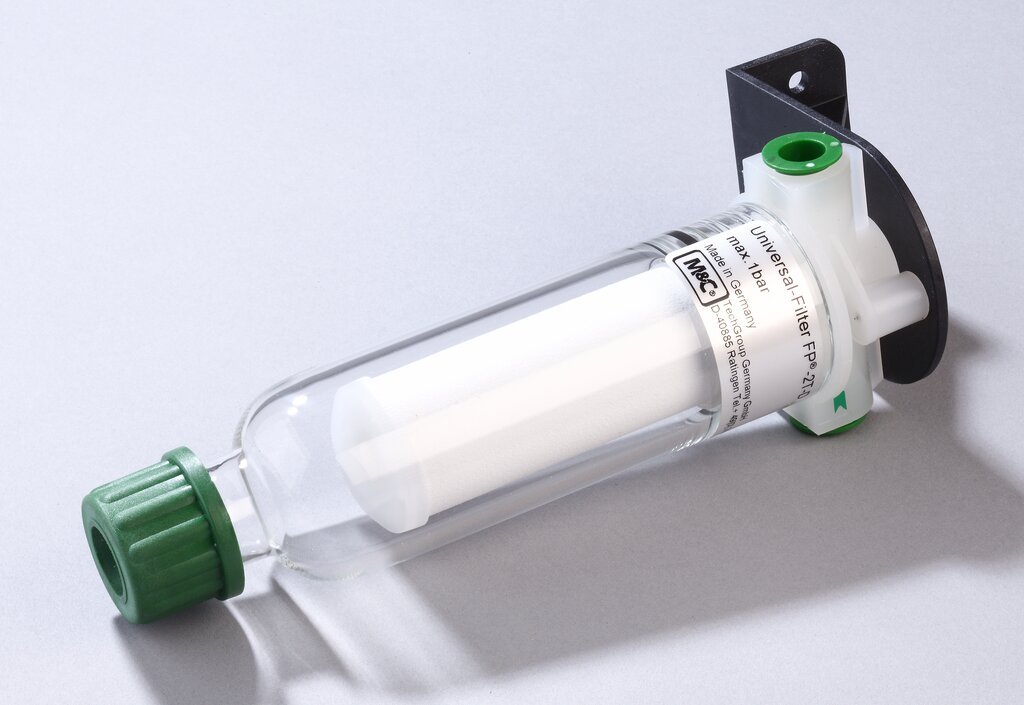

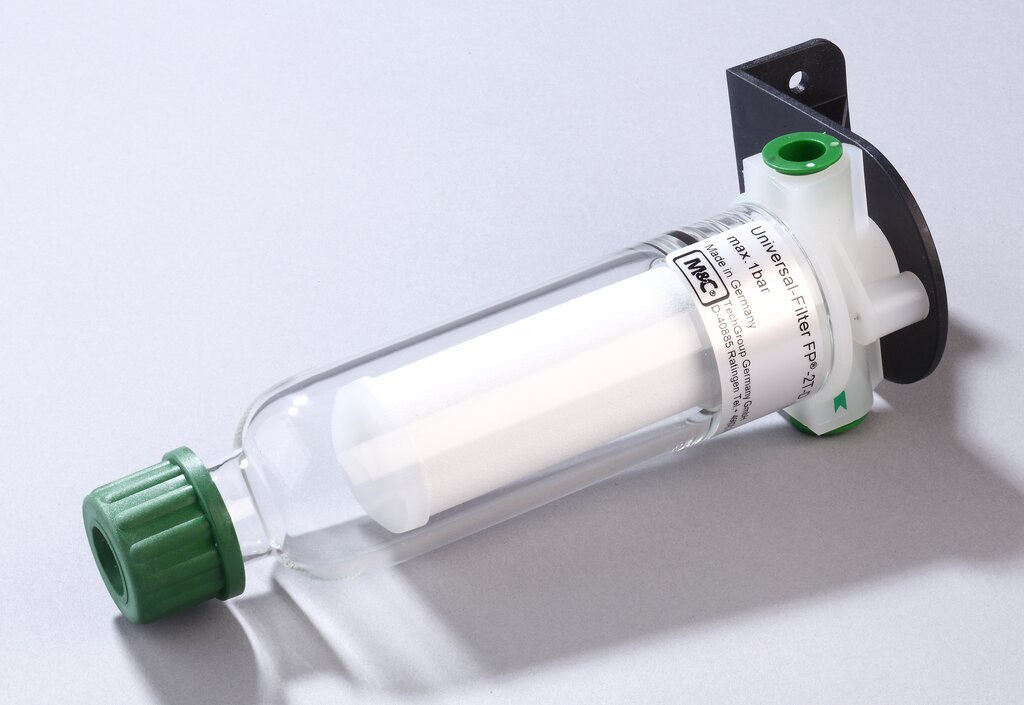

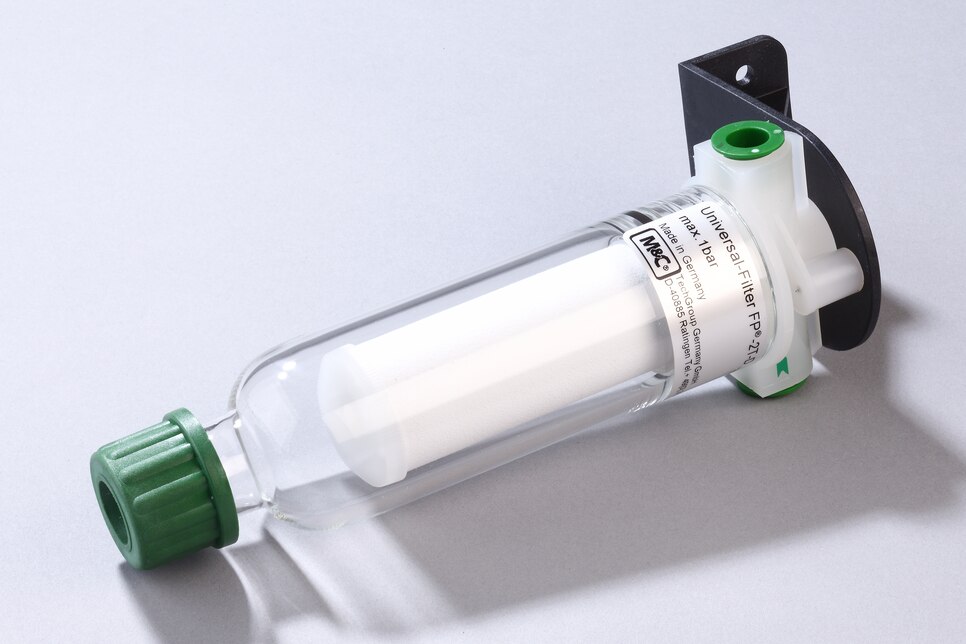

Universal Filter FP-2T-D

Part No.: 02F1000

Product features

  • Modular designed filter with condensate outlet
  • With filter head made of PVDF
  • Deep-acting PTFE filter element with a filter porosity of 2 µm
  • With wall-mounting bracket
  • Straightforward filter element change without tools
  • Low dead volume
  • For universal use
  • 3 female threaded gas connections: G 1/4"
  • Condensate outlet with compression tube fitting: GL 25 nut with GL 25 - 12 mm sealing ring
  • Sample gas and ambient temperature: max. +80 °C [+176 °F]
  • Material of sample-contacting parts: PTFE, PVDF, Viton®, glass

Product information & downloads

Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    Material: PVDF, glass, with different filter materials and porosities, with and without condensate connection, also completely with liquid alarm for conductive media

  • Applications
    M&C universal filters reliably separate solids, in particular extremely fine particles, occurring in analytical technology in gas filtration, using very fine, deep-acting filter elements. Thanks to their universal design, the filters can also be used as separators (without a filter element), liquid filters or, with adsorption cartridges, as an adsorption filter. For ambient or medium temperatures of up to 180 °C, a stainless steel version FSS or the FT-H version can be offered.
  • Product features
    Type Universal
    Housing material PVDF/glass
    Filter material PTFE
    Condensate outlet Yes
    Power supply Without

Options & spare parts
Universal Filter FP-2T-D

Here you get an overview of suitable options & spare parts

Product options
Spare parts

Spare parts
Universal Filter FP-2T-D

Options
Universal Filter FP-2T-D

Configure the product in 4 steps

Was frequently viewed

Oblique view of Peristaltic Pump SR25.2-W

Peristaltic Pump SR25.2-W

01P1307

  • Type
    • Pump
  • Explosion-proof
    • No
  • Flow rate
    • ≤ 300 ml/h
  • Material
    • Novoprene

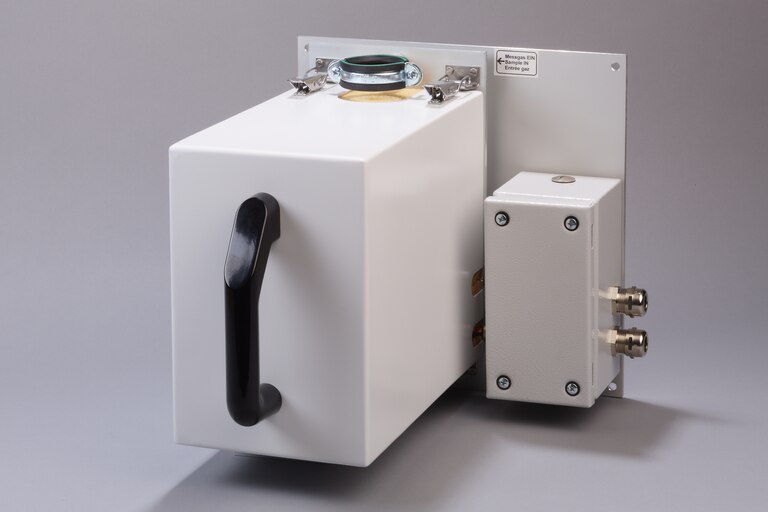

Oblique view of Filter FSS-3SS/H350

Filter FSS-3SS/H350

01F3030A

  • Type
    • Universal,
    • heated
  • Housing material
    • Stainless steel
  • Filter material
    • Stainless steel
  • Condensate outlet
    • No
  • Power supply
    • 110‒120 V

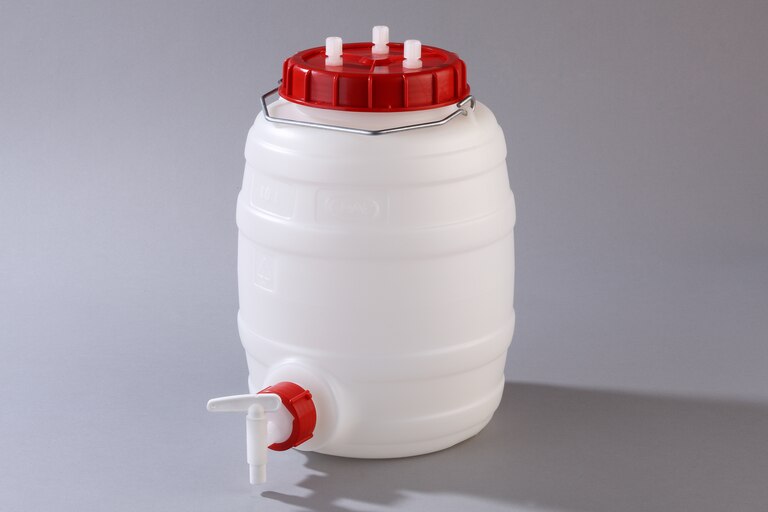

Oblique view of Condensate Vessel TK13
