Part No.: 09K4310

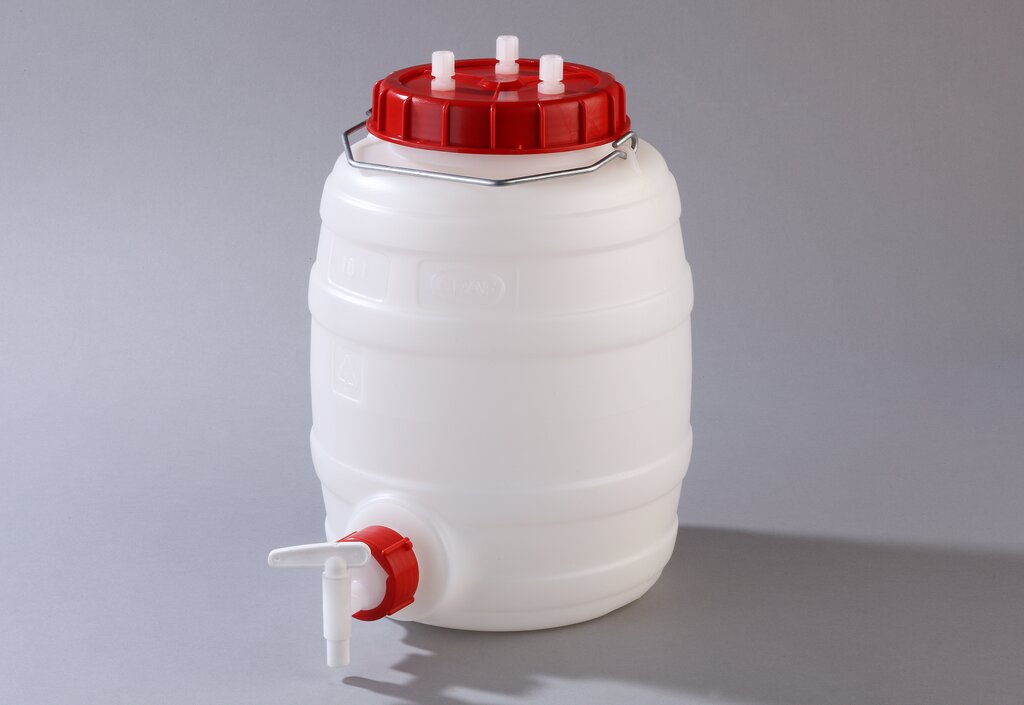

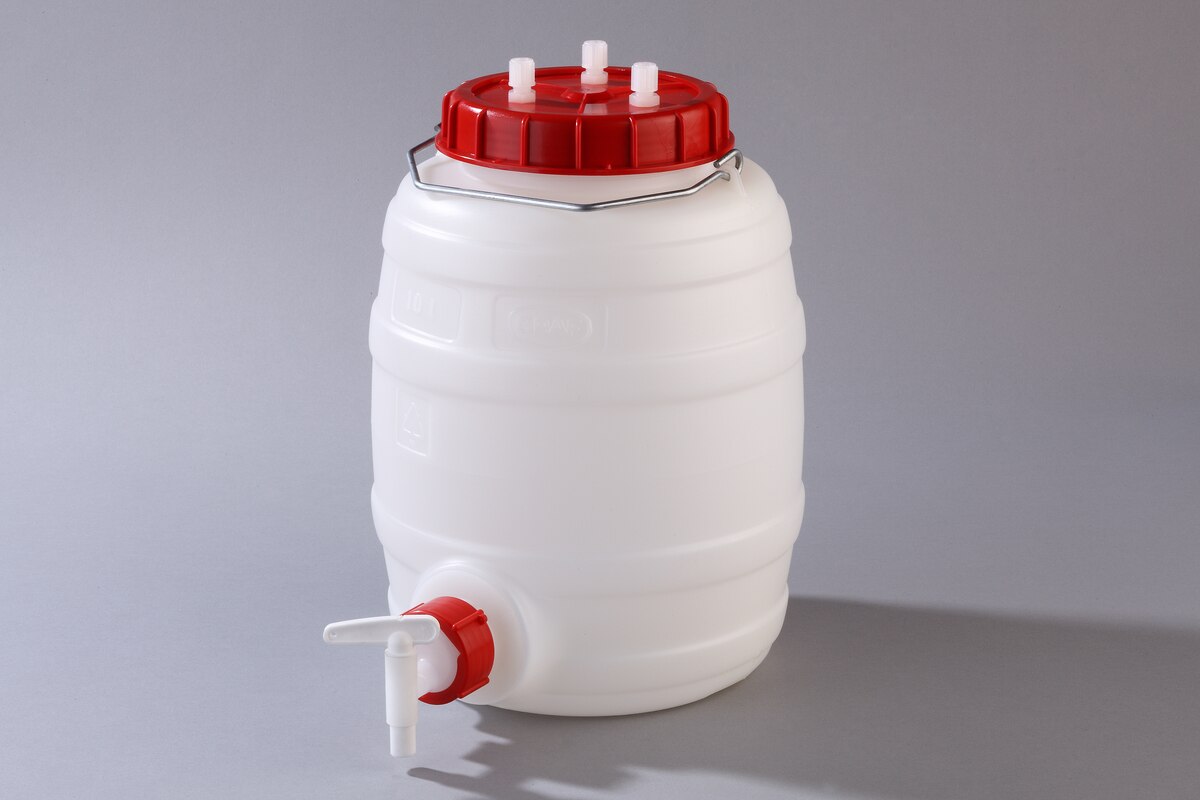

Condensate Vessel TK13

Product features

Condensate vessel with manual tap
Connections: 3 x DN 4/6 mm for condensate inlet and ventilation
Including carrying handle
Capacity: approx. 10 liter
Highly corrosion-resistant
Material of sample-contacting parts: PE, rubber, PVDF

Configure now

Request a quote

Product information & downloads

Data sheet 456 KB
