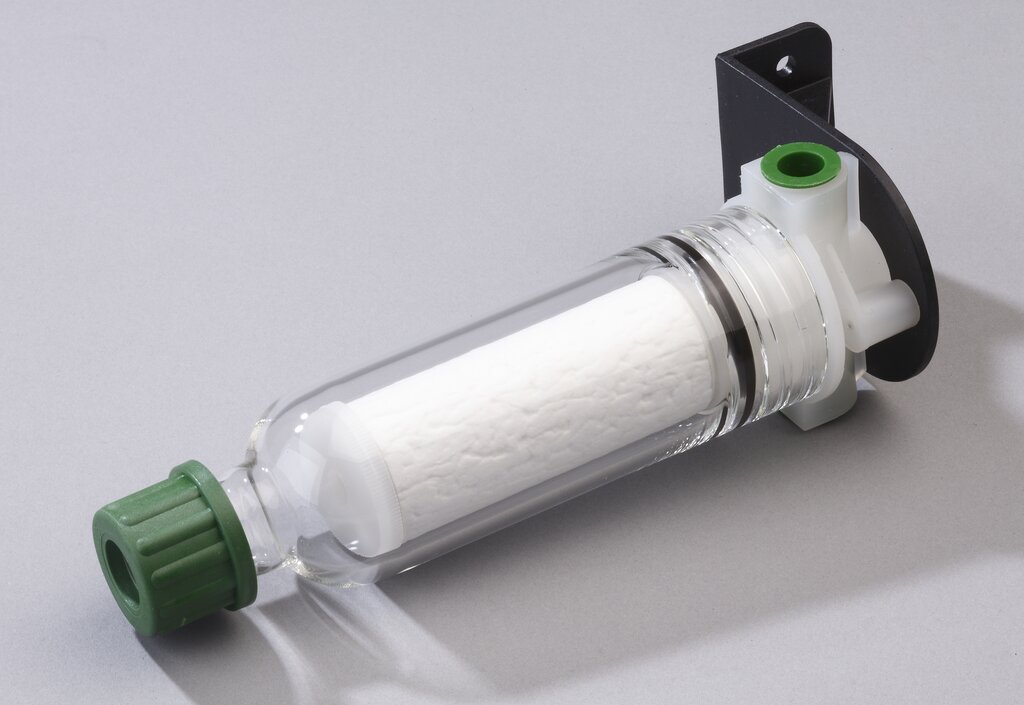

Universal Filter FP-2GF-D

Part No.: 02F1490

Product features

  • Modular designed filter with condensate outlet
  • With filter head made of PVDF
  • Glass-fiber filter element with a filter porosity of 2 µm
  • Suitable for high dust levels
  • With wall-mounting bracket
  • Straightforward filter element change without tools
  • Low dead volume
  • 3 female threaded gas connections: G 1/4"
  • Condensate outlet with compression tube fitting: GL 25 nut with GL 25 - 12 mm sealing ring
  • Sample gas and ambient temperature: max. +80 °C [+176 °F]
  • Material of sample-contacting parts: glass-fiber, PVDF, Viton®, glass, PTFE
