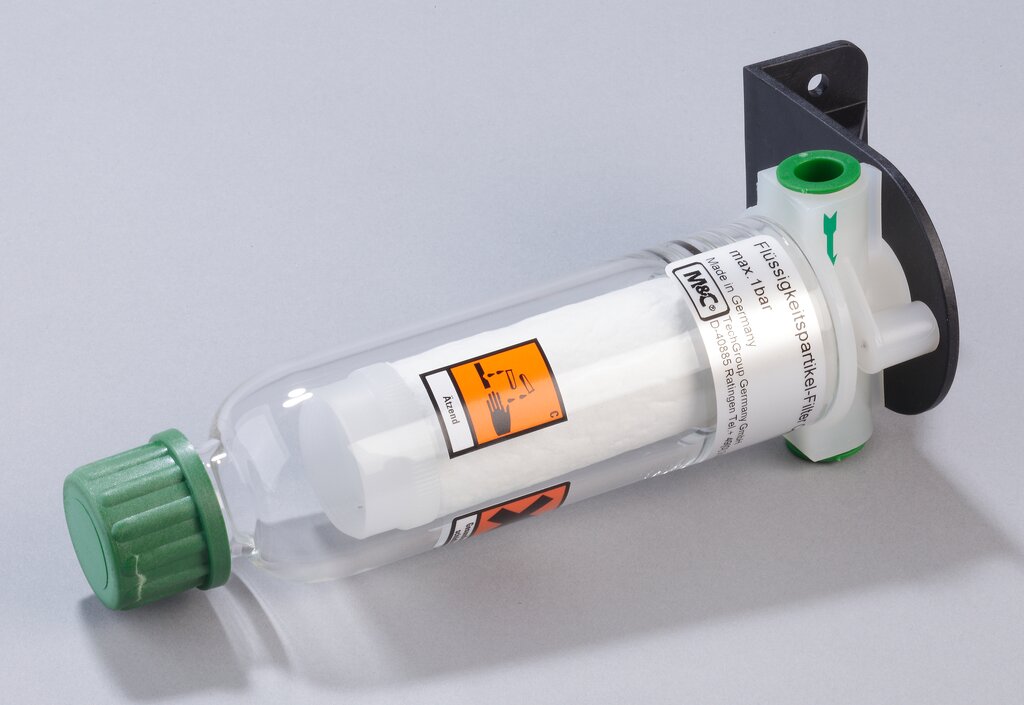

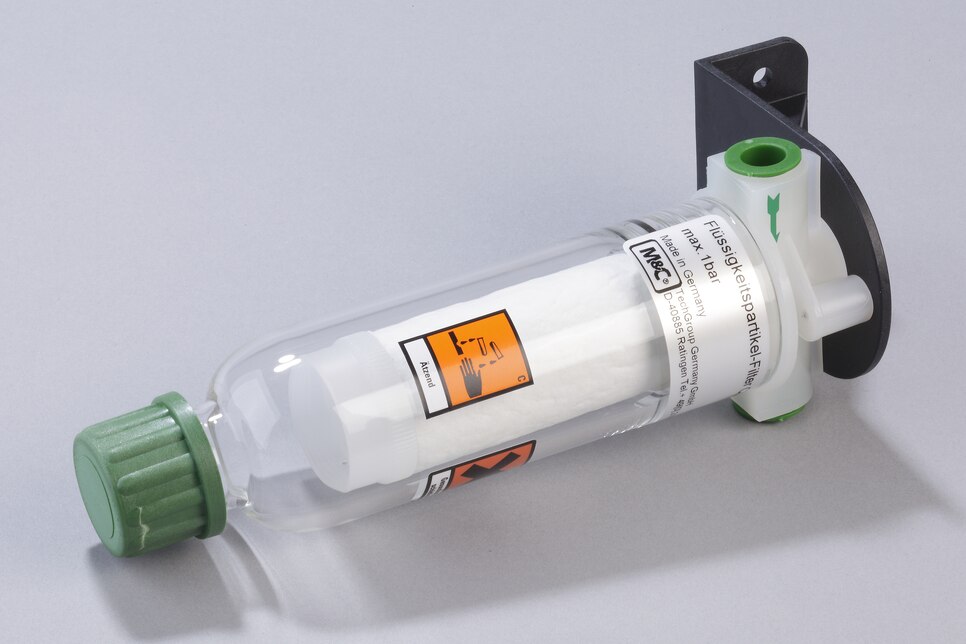

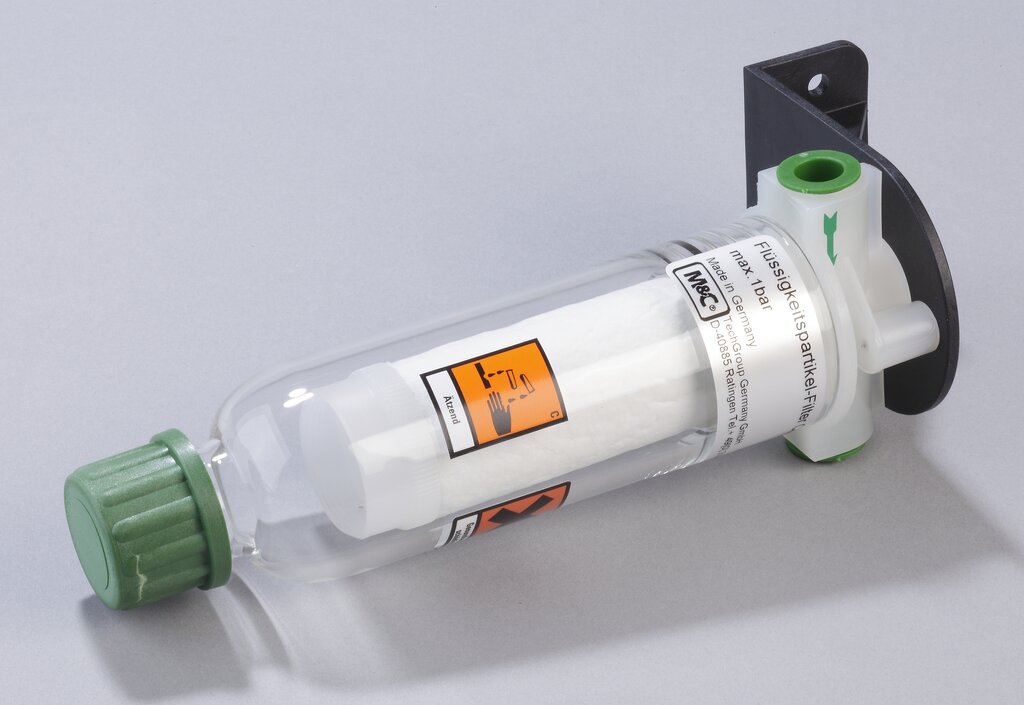

Liquid Particle Filter CLF-5

Part No.: 03F3000

Product features

  • Liquid particle filter for the separation of aerosols
  • High retention rate of 99.9999 % for particles > 0.1 μm
  • With filter head made of PVDF
  • Two-layer filter element made of glass-fiber
  • Flow rate: max. 300 Nl/h
  • Easy change of filter element
  • With wall-mounting bracket
  • 2 gas connections: female threaded G 1/4"
  • Condensate outlet: GL 25 with cap
  • Material of sample-contacting parts: glass-fiber, PVDF, Viton®, glass

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    For separating liquid particles, material: PVDF, glass

  • Applications
    The M&C liquid particle filter CLF-5, CLF-5/W are suitable for the filtration of fluid particles of all types and are recommended for sample gases with an acid dew point above 100 °C. Examples are measurements in flue gas of heavy oil and black coal combustions. The filter separates the aerosols (very fine fluid particles) which still pass the gas cooler. The most effective position of the CLF filter is downstream the sample conditioning, directly in front of the flow meter of the analyzer. For additional system protection, we provide the version CLF-5/W with integrated hydrophobic diaphragm, working as a liquid stop.
  • Description
    Liquid particle filter type CLF‑5 for the separation of microscopically small liquid gas droplets, glass‑fiber filter element with a retention rate of 99.9999 % for particles > 0.1 µm, flow rate: max. 300 Nl/h, pressure: max. 2 bar abs., sample gas temperature: max. 80 °C, connections: sample gas IN/OUT: G 1/4" f, condensate OUT: GL 25, material: PVDF, glass, Viton®
  • Product features
    Type Aerosol (liquid particle)
    Housing material PVDF/glass
    Filter material Fiber glass
    Condensate outlet Yes
    Power supply Without
