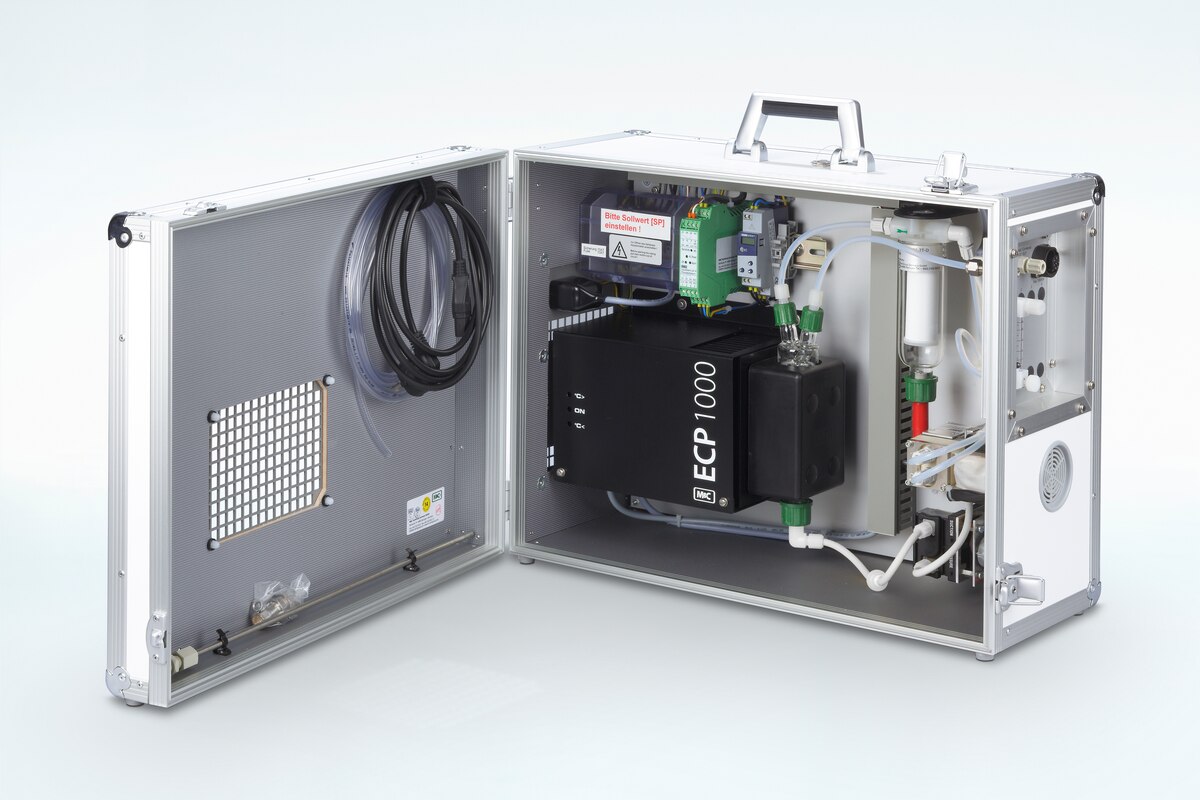

Portable Gas Conditioning System PSS5

Part No.: 01G1100

Product features

  • Portable gas conditioning unit inside a robust aluminium-framed case
  • Gas flow rate: max. 150 Nl/h
  • Gas outlet dew point adjustable from +2 to +15 °C [+35.6 to +59 °F]
  • Dew point stability < ±0.1 °C [±0.18 °F]
  • Self‑monitoring and low maintenance
  • Ready for operation in approx. 10 minutes
  • Power: 230 V
  • Optionally: with trolley system

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Applications
    The M&C portable gas conditioning unit PSS-5... is designed to carry out precise gas analyses at different locations. The entire gas conditioning unit is housed in a robust aluminium-frame case to enable the user to carry out gas analyses quickly, reliably and with little maintenance. The PSS-5... gas conditioning unit is suitable for variable, discontinuous use as well as for continuous operation. The components built into the PSS-5... gas conditioning unit can be used for standard applications. If you have special requirements regarding your measuring tasks, please contact us for additional or different components from our extensive range of products
  • Description
    Portable gas conditioning system type PSS5 for 150 Nl/h in an aluminium‑framed protective case, consisting of: 0.5 m SS sample tube 6 mm, 3‑m PVC hose DN 4/6, gas cooler ECP1000‑G, universal filter FP‑2T, sample gas pump N3KPE, peristaltic pump SR25.2. W with hose pre‑filter PF2, power: 230 V/50 Hz, tubing in PTFE/PP, the sample gas pump starts when the sample gas cooler falls below +8 °C
  • Product features
    Portable Yes
    Cooling Peltier
    Gas paths 1
    Flow rate/gas path < 150 Nl/h
    Material Glass
    Power supply 220‒240 V

Options & spare parts
Portable Gas Conditioning System PSS5

Here you get an overview of suitable options & spare parts

Product options
Spare parts

Spare parts
Portable Gas Conditioning System PSS5

Filter element F-2T
Part No.: 90F0002

Filter element type F‑2T, length: 75 mm, material: PTFE, filter porosity: 2 µm

O-Ring, Viton, 26,53x3,53
Part No.: 90F0040

O‑Ring (26) for filter head, material: Viton®

Filter holder F-P
Part No.: 90F0056

Filter holder type F‑P for in‑depth filter elements, material: PVDF

Filter glass F-120G
Part No.: 90F0012

Spare filter glass type F‑120G (standard)

Filter glass F-120G-D
Part No.: 90F0015

Spare filter glass type F‑120G‑D with condensate connection thread GL 25 (for standard filter elements 75 mm long)

Union nut GL 25
Part No.: 90F0020

Union nut GL 25

Sealing ring GL 25-12 mm
Part No.: 90F0025

Sealing ring GL 25‑12 mm, material: PTFE

Sealing ring GL 18-8 mm
Part No.: 91F1015

Sealing ring GL 18‑8 mm, material: PTFE

Spare union nut GL 18
Part No.: 91F1005

Spare union nut GL18

ECP1000G, heat exchanger
Part No.: 93K0100

Jet‑stream heat exchanger, type ECP1000G, material: Duran® glass, connections: sample gas: GL18‑6/6mm, condensate: GL 25‑12 mm

Thermal conductivity paste, 5 g
Part No.: 90K0114

Thermal conductivity paste, ‑20 to +100 °C, silicone‑free, 5 g

Thermal conductivity paste, 50 g
Part No.: 90K0115

Thermal conductivity paste, ‑20 to +100 °C, silicone‑free, 50 g

Fine fuse, 5 x 20, 0,8 A T
Part No.: 93K0030

Fine fuse, 0,8 AT, 5 x 20, (F1/F2) ECP1000, until 94

Fan ECP 1000, 2000, 3000, 12 V
Part No.: 93K0010

ECP 1000, 2000, 3000 fan, 12 V DC

Transistor BUZ11 ECP20, 1-3000
Part No.: 90K2020

Power transistor BUZ11 for cooler type ECP20, ECP1000‑3000

PT100, ECM ECP-1000x
Part No.: 93K0040X

PT100 temperature sensor for ECP1000‑3000 and ECM

Control electronic board ECP20/1-3000
Part No.: 93K0020

Control electronic board for ECP20, ECP1000‑3000 from serial no. 95xxxx

ECP1000-3000, power supply board
Part No.: 93K0530

Power supply board completely for ECP1000‑3000 (replacement for 93K0025)

ECP1000, rectifier for cooler 1.94-95
Part No.: 93K0036

Rectifier for cooler type ECP1000 from 1.94 (type BY 500‑200)

Peltier element ECP1000 from 95xx
Part No.: 93K0047

Peltier element EC30C/ECP1000 from serial number 95xxxx

Alarm relay DSP1, 12 V for ECP
Part No.: 90K0145

ECP1/1000/20 alarm relay DSP1

SR25, tube set, connection DN 4/6
Part No.: 90P1007

Tube set for peristaltic pump SR25 with PVDF tube connection DN 4/6

SR25, driver, complete
Part No.: 90P1020

Driver, complete, for peristaltic pump SR25

SR25, contact spring set (4 pcs.)
Part No.: 90P1010

1 set of contact springs for driver of peristaltic pump SR25 (set = 4 pcs.)

SR25, contact pulley
Part No.: 90P1045

Contact pulley (1 pc.) for peristaltic pump SR25., (2 pcs./pump required)

SR25, conveying belt
Part No.: 90P1050

Conveying belt for peristaltic pump SR25

SR25, S-bolt
Part No.: 90P1025

S‑bolt for peristaltic pump SR25

SR25, pump head without motor
Part No.: 90P1030

Pump head complete for peristaltic pump SR25.1 with rubber disk, without motor and gear

SR25.1, motor with gear, complete
Part No.: 90P1035

Spare motor with gear, mounting bracket, terminal for SR25.1, 230/115 V, 50/60 Hz

N3-N5 KPE, diaphragm Viton/PTFE
Part No.: 90P2120

Diaphragm type S3, for N3‑N5 KPE, material: Viton®, PTFE

Flow meter glass FM40, 7-70 Nl/h
Part No.: 90A0015

Flow meter glass for FM40, standard measuring range: 7‑70 Nl/h air

flow meter glass FM40, 15 -150 Nl/h
Part No.: 94F0010

Flow meter glass for FM40, standard measuring range: 15‑150 Nl/h air

Flow meter glass FM40, 25 -250 Nl/h
Part No.: 94F0015

Flow meter glass for FM40, standard measuring range: 25‑250 Nl/h air

Flow meter glass FM40, 50-500 Nl/h
Part No.: 94F0020

Flow meter glass for FM40, standard measuring range: 50‑500 Nl/h air

O-Ring, Viton, 9,00x1,50 FM, PMA
Part No.: 90A0018

O‑Ring (9) for FM40 and PMA, material: Viton®

PF2 pre-filter for SR25
Part No.: 90G0006

Pre‑filter type PF2 for peristaltic pump SR25.1, porosity: 25 µm

LA1 with 4 m connecting cable
Part No.: 03E1000

Liquid alarm sensor type LA1 for conductive media, diameter: 12 mm, 4 m connecting cable, material: platinum, glass

Options
Portable Gas Conditioning System PSS5

Trolley for PSS case
Part No.: 90G0160

Detachable trolley for M&C, white case, as of 2014, three‑stage pull‑out handle with locking knob in the handle and large, ball‑bearing mounted casters

PSS/SS, FM40, 7-70 Nl/h, option
Part No.: 01G9070

Option: gas conditioning unit type PSS/SS with flow meter type FM40 (incl. needle valve), measuring range: 7 to 70 Nl/h

PSS/SS, FM40, 15-150 Nl/h, option
Part No.: 01G9075

Option: gas conditioning unit type PSS/SS with flow meter type FM40 (incl. needle valve), measuring range: 15 to150 Nl/h

PSS/SS, FM40, 25-250 Nl/h, option
Part No.: 01G9080

Option: gas conditioning units type PSS/SS with flow meter type FM40 (incl. needle valve), measuring range: 25 to 250 Nl/h

PSS/SS, FM40, 50-500 Nl/h, option
Part No.: 01G9085

Option: gas conditioning unit type PSS/SS with flow meter type FM40 (incl. needle valve), measuring range: 50 to 500 Nl/h

PSS/SS, PVDF connectors, option
Part No.: 01G9025

Option: gas conditioning unit type PSS/SS with all connectors made of PVDF, incl. 3 m Viton® tube DN 4/6

PSS5, sample tube 6 mm Kanthal, option
Part No.: 01G9030

Kanthal® sample tube 6 mm, length: 1 m, temperature: max. 1300 °C

PSS/SS, LA1s/1.4, option
Part No.: 01G9035

Option: gas conditioning type PSS/SS with liquid monitoring LA1s/1.4, consisting of: liquid alarm sensor LA1s, electronic controller LA1.4, filter glass F120G‑D with GL connection, incl. mounting and wiring, the sample gas pump is automatically switched off in the event of condensate ingress

PSS/SS/CSS-VX, 3-w. ball valve, option
Part No.: 01G9046

Option: sample gas conditioning unit type PSS/SS/CSS‑VX with 3‑way ball valve mounted in the gas inlet for calibration gas or multi‑point sample gas switching, incl. PVDF connectors, mounting bracket and installation

PSS/SS/CSS-VC, 5-w. ball valve, option
Part No.: 01G9045

Option: gas conditioning unit type PSS/SS/CSS‑VC with 5‑way ball valve mounted in the gas inlet for calibration gas or multi‑point sample gas switching, incl. PVDF connectors, mounting bracket and installation

PSS/SS, TR 701, 230 V, option
Part No.: 01G9055

Option: gas conditioning unit type PSS/SS with temperature controller 701, control range: 0 to 200 °C, temperature sensor: PT100, switching capacity: 250 V AC/max. 10 A, power: 230 V/50 Hz, type PSS with 7‑pole plug for max. 12 m heated sample line (laterally mounted in the case wall), type SS with terminals for max. 20 m heated sample line

PSS/SS, add. sample gas outlet, option
Part No.: 01G9065

Option: gas conditioning unit type PSS/SS with additional sample gas outlet DN 4/6, material: PVDF

PSS/SS, anti-kink protect. 6 mm, option
Part No.: 01G9060

Option: for gas conditioning type PSS/SS with anti‑kink protection adapter for rigid mounting of heated sample gas lines with replaceable PTFE hose DN 4/6, consisting of: Swagelok® fitting and union nut, incl. 4 mm support sleeve, material: SS 316 Ti

PSS/SS, anti-kink protect. 8 mm, option
Part No.: 01G9061

Option: gas conditioning type PSS/SS with anti‑kink protection adapter for rigid mounting of heated sample gas lines with replaceable PTFE hose DN 6/8, consisting of: Swagelok® fitting and union nut, incl. 6 mm support sleeve, material: SS 1.4571Ti
