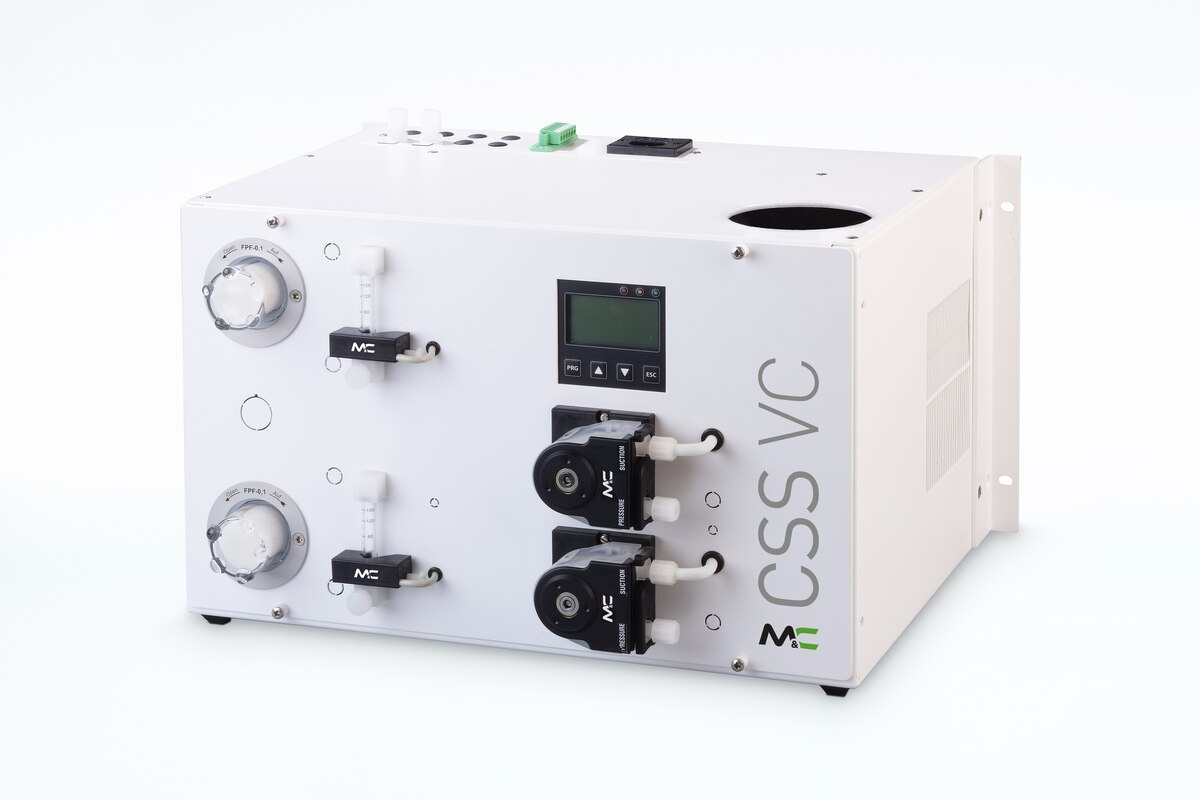

Gas Conditioning Unit CSS-VC2, TCU

Part No.: 01G6055

Product features

  • Compact high‑performance gas conditioning unit with compressor cooler
  • With multifunctional temperature control unit (TCU)
  • Individually configurable and completely pre-installed according to your specifications
  • Self‑monitoring and low maintenance
  • Gas flow rate: max. 2 x 150 Nl/h
  • Dew point stability < ±0.1 °C [±0.18 °F]
  • Outlet dew point adjustable from +2 to +7 °C [+35.6 to +44.6 °F]
  • Power: 230 V
  • Configurable: heat exchangers, sample gas pumps, flow meters, sample gas filters with integrated liquid alarm sensors, peristaltic pumps and flow alarm sensors with electronic controllers

Product information & downloads

Spare parts
Gas Conditioning Unit CSS-VC2, TCU

SR25 tube set, connection DN4/6
Part No.: 90P1007

Tube set for peristaltic pump SR25 with PVDF tube connection DN 4/6

SR25, contact spring set (4 pcs.)
Part No.: 90P1010

1 set of contact springs for driver of peristaltic pump SR25 (set = 4 pcs.)

SR25 contact pulley
Part No.: 90P1045

Contact pulley (1 pc.) for peristaltic pump SR25., (2 pcs./pump required).

SR25, conveying belt
Part No.: 90P1050

Conveying belt for peristaltic pump SR25

SR25 S-bolt
Part No.: 90P1025

S‑bolt for peristaltic pump SR25

SR25 pump head without motor
Part No.: 90P1030

Pump head complete for peristaltic pump SR25.1 with rubber disk, without motor and gear

Flow meter glass FM40, 7-70 Nl/h
Part No.: 90A0015

Flow meter glass for FM40, standard measuring range: 7‑70 Nl/h air

flow meter glass FM40, 15 -150 Nl/h
Part No.: 94F0010

Flow meter glass for FM40, standard measuring range: 15‑150 Nl/h air

Flow meter glass FM40, 25 -250 Nl/h
Part No.: 94F0015

Flow meter glass for FM40, standard measuring range: 25‑250 Nl/h air

O-Ring, Viton, 9,00x1,50 FM, PMA
Part No.: 90A0018

O‑Ring (9) for FM40 and PMA, material: Viton®

N3-N5 KPE, diaphragm Viton/PTFE
Part No.: 90P2120

Diaphragm type S3, for N3‑N5 KPE, material: Viton®, PTFE

N9 KPE, diaphragm
Part No.: 90P2220

Diaphragm type S9, for N9 KPE, material: Viton®/PTFE

N9, valve with seal
Part No.: 90P2211

Valve plate with seal for N9 KPE, 1 pc., material: Viton®

O-Ring, Viton, 54,60x2,40 FPF2
Part No.: 90F0167

O‑ring, for FPF‑2/54, material: Viton®

Filter element FPF-2-0,3GF, PU=25
Part No.: 90F0160

Filter element type FPF‑2‑0,3GF, material: glass fiber, filter porosity: 0.3 µm, 25 pcs./packg.

O-Ring, Viton, 3,00x1,50 FPF2
Part No.: 90F0165

O‑ring for FPF‑2/3, material: Viton®

O-Ring, Viton, 45,00x1.50 FPF2
Part No.: 90F0166

O‑ring, for FPF‑2/45, material: Viton

Options
Gas Conditioning Unit CSS-VC2, TCU

CSS-VX2 cover plate, 2 gas paths
Part No.: 01G6063

CSS‑VX2 cover plate, two gas paths from above

ECM-2/ECP(1/2)000C G, heat exchanger
Part No.: 97K0100

Jet‑stream heat exchanger type ECM‑2G, ECP1000C, ECP2000C, material: Duran® glass, connections: sample gas GL18‑6/6 mm, condensate GL 25‑12 mm

ECM-2/ECP(1/2)000C SS, HE
Part No.: 97K0115

Jet‑stream heat exchanger type ECM‑2, ECP1000C, ECP2000C SS, material: SS 316Ti, connections: sample gas: 6 mm, condensate G 3/8" i

ECM-2/ECP(1/2)000C PV, heat exchanger
Part No.: 97K0110

Jet‑stream heat exchanger type ECM‑2, ECP1000C, ECP2000C material: PVDF, connections: sample gas 6 mm, condensate G 3/8" i

ECM-2/ECP(1/2)000C, CSS-V G, HE 90°
Part No.: 97K0150

Jet‑stream heat exchanger type ECM‑2/ECP(1/2)000C, CSS‑V G, WT 90°, material: Duran® glass, connections: sample gas GL18‑8 mm, condensate GL 25‑8 mm

CSS-VX2 cover plate 19", 2 gas paths
Part No.: 01G6061

CSS‑VX2 TCU cover plate 19" closed, 2 gas paths

SR25.2 mounted in CSS-VX, option
Part No.: 01G6140

Option: SR25.2 mounted in CSS‑VX

Front-Panel Mounting Filter FPF-0,1GF
Part No.: 04F1000

Product features

  • Flat filter with ultra-fine glass-fiber filter element for front-panel mounting
  • Filter porosity: 0.1 µm
  • With filter head made of PTFE
  • Straightforward filter element change without tools
  • Low dead volume
  • For universal use
  • Female threaded gas connections: G 1/8"
  • Sample gas and ambient temperature: max. +80 °C [+176 °F]
  • Material of sample-contacting parts: glass-fiber, PVDF, PTFE, glass, Viton®

Flow chamber LS/LA2, PV
Part No.: 03E3010

Compact flow chamber type (Tee TV DN 4/6‑D8‑DN 4/6) with liquid alarm sensor LA2 for conductive media, with 300 mm connecting cable, material: PVDF, SS, PTFE, without electronic controller

Front-Panel Mounting Filter FPF+ without filter element
Part No.: 04F2100

Product features

  • Filter for front-panel mounting suitable for large filter elements
  • With connection for liquid alarm sensor LA3
  • Straightforward filter element change without tools
  • Corrosion-resistant
  • Low dead volume
  • For universal use
  • Female threaded gas connections: G 1/8"
  • Sample gas and ambient temperature: max. +80 °C [+176 °F]
  • Material of sample-contacting parts: PTFE, Viton®, glass
  • Selection of filter elements with different filter porosities (filter element not included)

LA3
Part No.: 03E1300

Liquid alarm sensor type LA3 for conductive media for mounting into FPF+, material: SS 316 Ti, PTFE

CSS-VC, TCU filter/CLF mounting
Part No.: 01G6075

CSS‑VC, TCU, filter/CLF mounting on front panel

Liquid Alarm Sensor LA1S
Part No.: 03E1001

Product features

  • Liquid alarm sensor for conductive media
  • Includes line-break monitoring
  • Can be integrated in M&C universal filters with GL connection and flow chamber LS
  • Connection: ø 12 mm
  • With 4 m electrical connecting cable
  • Material of sample-contacting parts: glass, platinum

PSS/SS/CSS-VC, 5-w. ball valve, option
Part No.: 01G9045

Option: gas conditioning unit type PSS/SS/CSS‑VC with 5‑way ball valve mounted in the gas inlet for calibration gas or multi‑point sample gas switching, incl. PVDF connectors, mounting bracket and installation

PSS/SS/CSS-VX, 3-w. ball valve, option
Part No.: 01G9046

Option: sample gas conditioning unit type PSS/SS/CSS‑VX with 3‑way ball valve mounted in the gas inlet for calibration gas or multi‑point sample gas switching, incl. PVDF connectors, mounting bracket and installation

CSS-VX, prepar. for mount. pump
Part No.: 01G6070

Preparation for mounting gas sample pump in CSS‑VX

CSS-VX, pump N3, option
Part No.: 01G6125

Option: mounting a pump type N3 in the gas conditioning unit CSS‑VX, for connecting a sample pump, an electronic controller is required

CSS-VX, pump N5, option
Part No.: 01G6130

Option: mounting a pump type N5 in the gas conditioning unit CSS‑VX, for connecting a sample pump, an electronic controller is required

CSS-VX, pump N9, option
Part No.: 01G6135

Option: mounting a pump type N9 in the gas conditioning unit CSS‑VX, for connecting a sample pump, an electronic controller is required as an option

Flow Meter FM-40/70
Part No.: 09F4000

Product features

  • Float-type flow meter for front-panel mounting
  • With fine control needle valve in the gas inlet
  • Measuring range: 7 to 70 Nl/h air
  • With integrated tube connections DN 4/6
  • Compact, flat design
  • Corrosion-resistant
  • Material of sample-contacting parts: glass, PVDF, Viton®

Flow Meter FM-40/150
Part No.: 09F4005

Product features

  • Float-type flow meter for front-panel mounting
  • With fine-control needle valve in the gas inlet
  • Measuring range: 15 to 150 Nl/h air
  • With integrated tube connections DN 4/6
  • Compact, flat design
  • Corrosion-resistant
  • Material of sample-contacting parts: glass, PVDF, Viton®

Flow Meter FM-40/250
Part No.: 09F4010

Product features

  • Float-type flow meter for front-panel mounting
  • With fine-control needle valve in the gas inlet
  • Measuring range: 25 to 250 Nl/h air
  • With integrated tube connections DN 4/6
  • Compact, flat design
  • Corrosion-resistant
  • Material of sample-contacting parts: glass, PVDF, Viton®

Flow Meter FM-40/500
Part No.: 09F4015

Product features

  • Float-type flow meter for front-panel mounting
  • With fine-control needle valve in the gas inlet
  • Measuring range: 50 to 500 Nl/h air
  • With integrated tube connections DN 4/6
  • Compact, flat design
  • Corrosion-resistant
  • Material of sample-contacting parts: glass, PVDF, Viton®

FA20mo
Part No.: 02E3500

Forked, monostable, clamp‑on flow alarm sensor type FA20 mo, clamping range: 5 to 14 mm

CSS-VX, bypass FM-40, 70 Nl
Part No.: 01G6200

Bypass flow meter FM‑40, 70 Nl/h, with needle valve and sample gas outlet, integrated in CSS‑VX

CSS-VX, bypass FM-40, 150 Nl
Part No.: 01G6210

Bypass flow meter FM‑40/150, with needle valve, 150 Nl/h and gas outlet, mounted in CSS‑VX

CSS-VX, bypass FM-40, 250 Nl
Part No.: 01G6220

Bypass flow meter FM‑40, 250 Nl/h, with needle valve and sample gas outlet, mounted in CSS‑VX

CSS-VX, bypass FM-40, 500 NL
Part No.: 01G6230

Bypass flow meter FM‑40, 500 Nl/h, with needle valve and sample gas outlet, integrated in CSS‑VX

Electr. controller CSS-VC, status
Part No.: 01G6170

Electronic controller CSS‑VC TCU, status alarm only

Electronic controller CSS-VC TCU
Part No.: 01G6175

Electronic controller CSS‑VC TCU, single alarms, with mA outlet for cooler temperature, mA signal output: 4 to 20 mA (0 to 50 °C), 0 to 20 mA on request

Supplement control module for TCU
Part No.: 01B8620

Supplement control module COM for TCU with connection for thermocouple and connection for further external modules

Supplement control module heater
Part No.: 01B8640

Supplement control module COM for TCU to control the heater

TCU STAT module
Part No.: 01B8630

External COM module for TCU to evaluate the status alarms

Supplement control module for blowback
Part No.: 01B8650

Supplement COM control module for TCU for blowback function

CSS-VC, add-on bus for ext. modules
Part No.: 01G6180

CSS‑VC TCU, add‑on bus for external modules, only in connection with part no. 01G6175

CSS-VX, transport case
Part No.: 01G6250

Aluminium case CSS‑V, door Makrolon® clear, two hinged handles, outer dimensions (W x H x D): 510 x 350 x 400 mm

Trolley for PSS case
Part No.: 90G0160

Detachable trolley for M&C, white case, as of 2014, three‑stage pull‑out handle with locking knob in the handle and large, ball‑bearing mounted casters

CSS-VC, TCU, controller heated line
Part No.: 01G6190

CSS‑VC, TCU, electric controller for heated line, max. 10 m, 230 V with PT100 (only possible with option 01G6175)

PSS/SS, anti-kink protect. 6 mm, option
Part No.: 01G9060

Option: for gas conditioning type PSS/SS with anti‑kink protection adapter for rigid mounting of heated sample gas lines with replaceable PTFE hose DN 4/6, consisting of: Swagelok® fitting and union nut, incl. 4 mm support sleeve, material: SS 316 Ti

PSS/SS, anti-kink protect. 8 mm, option
Part No.: 01G9061

Option: gas conditioning type PSS/SS with anti‑kink protection adapter for rigid mounting of heated sample gas lines with replaceable PTFE hose DN 6/8, consisting of: Swagelok® fitting and union nut, incl. 6 mm support sleeve, material: SS 1.4571Ti

Configure the product in 4 steps
