Gas Conditioning System CSS-3

Part No.: 03G3000

Product features

  • Completely pre‑installed gas conditioning unit suitable for standard applications
  • Self-monitoring and low maintenance
  • 1 gas inlet with a max. gas flow of 350 Nl/h
  • 2 gas outlets including flow meters with a max. gas flow of 250 Nl/h each
  • Outlet dew point adjustable from +2 to +15 °C [+35.6 to +59 °F]
  • Dew point stability < ±0.1 °C [±0.18 °F]
  • Ready for operation in approx. 10 minutes
  • Power: 230 V

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Applications
    With these units, completely pre-installed sample gas conditioning systems are created for continuous use which can be easily integrated into gas analysis systems. Their compact construction means that only little space is required. The CSS units are ready for operation within just a few minutes. This makes the usual time-consuming procurement of individual components and assembly superfluous. Examples of applications for CSS...sample gas conditioning units are flue gas and process gas conditioning.
  • Description

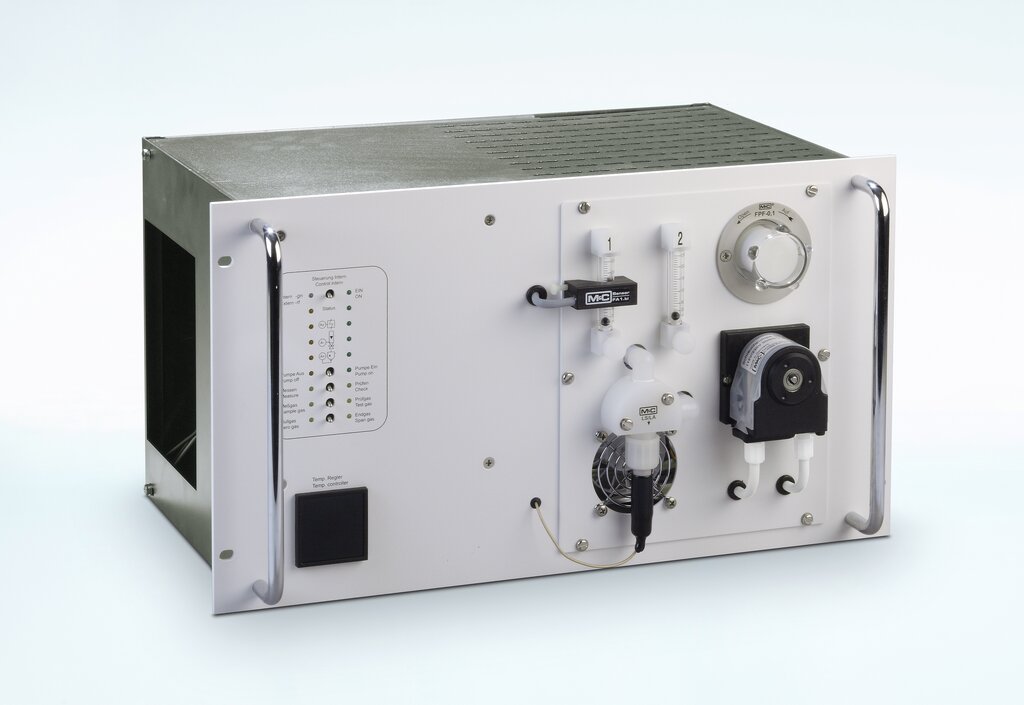

    19" sample gas conditioning unit type CSS‑3 for 350 Nl/h in 19" panel mounting housing, consisting of gas cooler ECP3000‑G, sampling gas pump N9KPE, hose pump SR25.1, fine filter FPF‑0,1‑GF, liquid alarm LA 1S, 2 flow meters FM40 with needle valve 25‑250 Nl/h, flow alarm FA1 bi, solenoid valves for external or manual switching from measuring to testing (2 gases), status alarm with LED display and contact output, tubing in PTFE/ PVDF, connections G 1/4" i: sample gas: 1 x In, 2 x Out, test gas: 2 x In, dimensions: 84 HP, 6 U, depth: 350 mm, power: 230 V/50 Hz, 250 VA, the sample gas pump starts automatically when the gas cooler falls below +8 °C
  • Product features
    Portable No
    Cooling Peltier
    Gas paths 1
    Flow rate/gas path > 150 Nl/h
    Material Glass
    Power supply 220‒240 V
