Gas Sample Dilution Probe SP2000-H/DIL-VA/BV
Part No.: 20S4030
Product features
Heated gas sample dilution probe for sampling and diluting process gas
With bypass needle valve for bypass volume adjustment in overpressure operation
With a dilution ratio of 30:1 as standard, optionally in the range from 10:1 to 500:1
Dilution gas pre-heater heats the dilution gas to the sample probe temperature
Dilution unit with critical orifice is located in the heated part of the sample probe
Manually operated, heated ball valve in the sample probe inlet to shut off the filter chamber from the process
With test gas connection at the sample probe
Based on gas sample probe SP2000H
Filter housing and mounting flange made of stainless steel can be heated up to max. 180 °C [356 °F]
Ceramic filter element with a filter porosity of 2 µm
Including weather protective cover
Easy installation and low maintenance
Low dead volume
Power: 230 V
Material of sample-contacting parts: stainless steel, quartz glass, Viton®, ceramic
Optionally: add-on set A with 1 precision pressure controller and 2 vacuum pressure gauges; control panel S with 1 pressure controller and 2 pressure gauges, 1 flow meter and 2 shut-off valves
Heated from 0 to 180 °C, power: 230 V/50 Hz or 115 V/60 Hz, with heated, manually operated ball valve at the sample inlet and bypass connection with needle valve in order to minimize the response time
The electrically heated M&C dilution probe is used in such processes, where the measuring procedure or the handling of the process gas requires the dilution of the sample gas or the component(s) to be measured, e.g. for extremely toxic gases, for moisture or emission measurement in flue gases. Since the M&C dilution probe SP2300H/DIL... is based on the well-proven M&C gas sample probe SP2000H, a variety of applications requiring special filter techniques, materials, etc. can be handled without any problems with this dilution probe.With the integrated ball valve, it is possible to shut off the probe from the process for example to change the filter element in the case of toxic sample gas and the additional bypass injector with needle valve minimizes the response time.

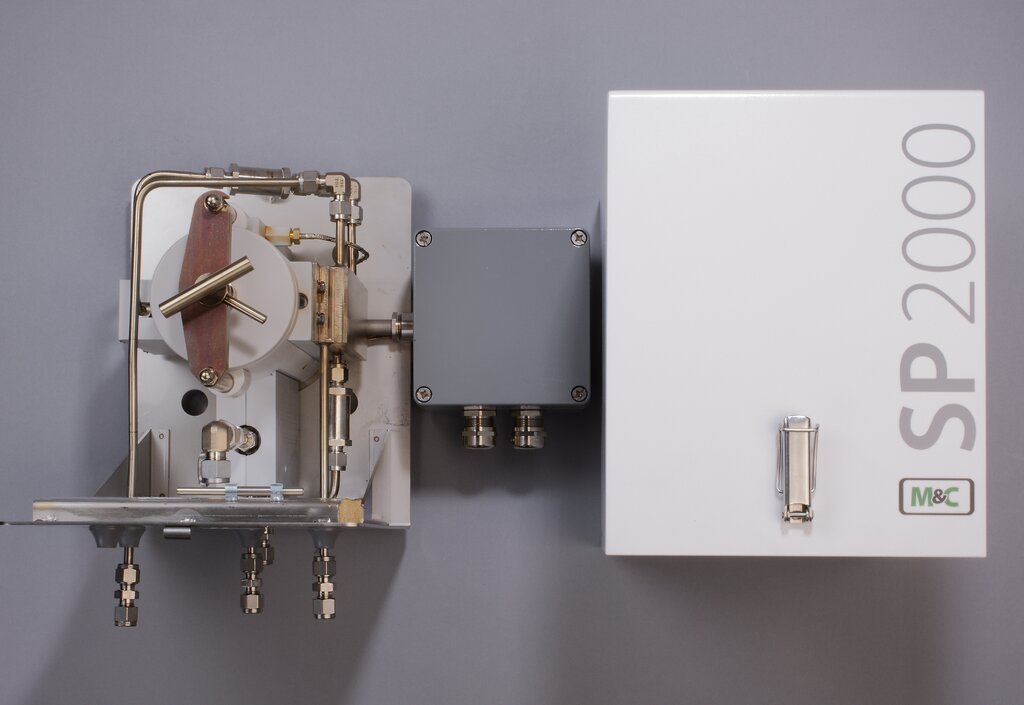

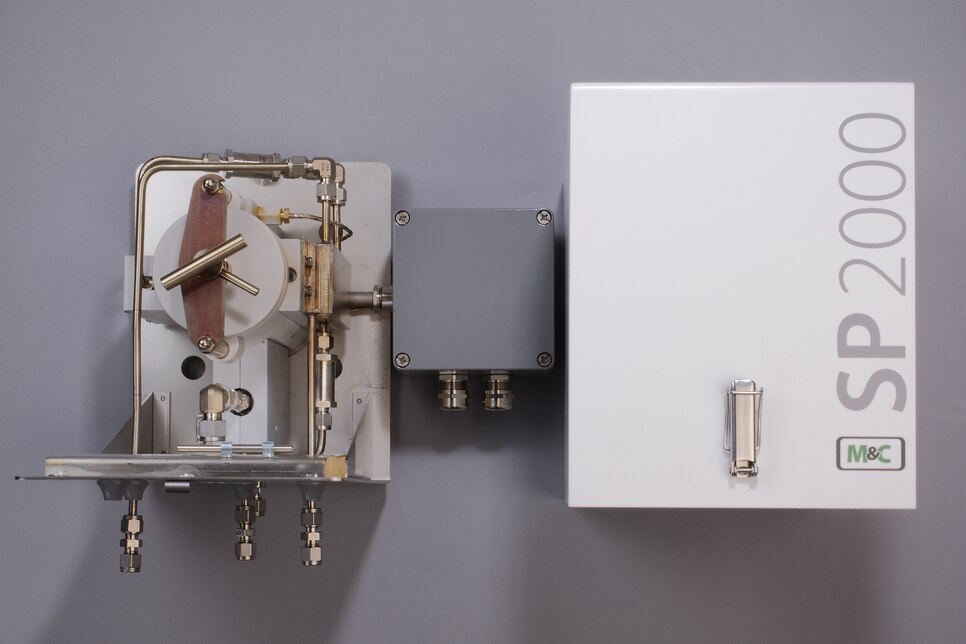

Gas sample dilution probe type SP2000‑H/DIL‑VA/BV with ball shut‑off valve in the sample gas inlet and bypass needle valve with gas outlet connection, external ceramic filter element type S‑2K150, filter porosity: 2 µm, electrically heating of the external filter 0 to 180 °C adjustable at the integrated control thermostat, high temperature limiter with reset key responding at +30 °C above Tset and low temperature alarm with potential‑free contact output at ‑30 °C below Tset, incl. weather protection shield with thermal insulation, power: 230 V/50 Hz, 800 W, mounting flange: DN 65 PN 6B with G 3/4" f connection, sample gas OUT: tube 8 mm, material: SS 316Ti, Viton®, ceramics, Viton®, dilution ratio to be indicated with the order
