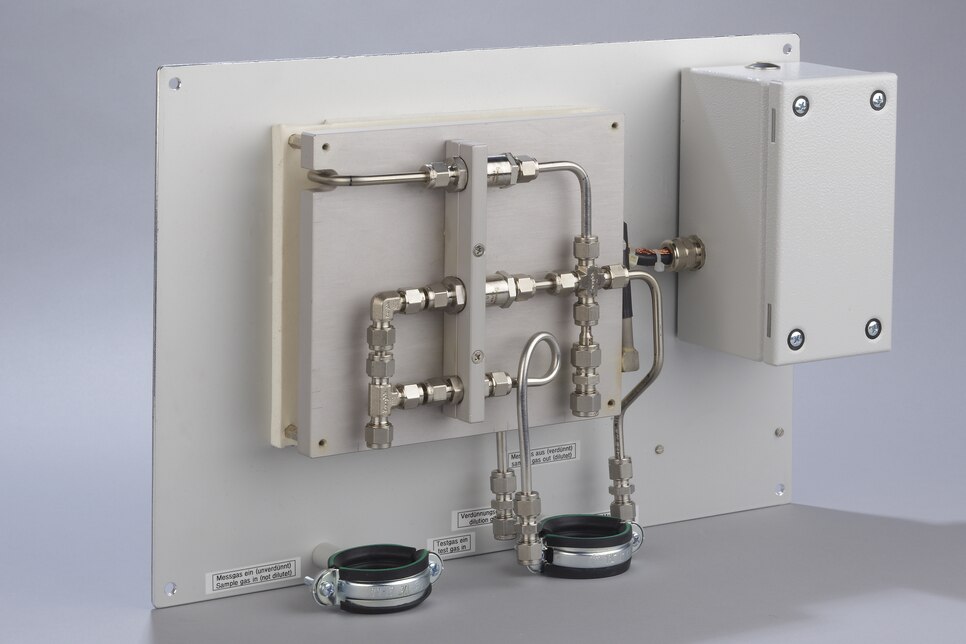

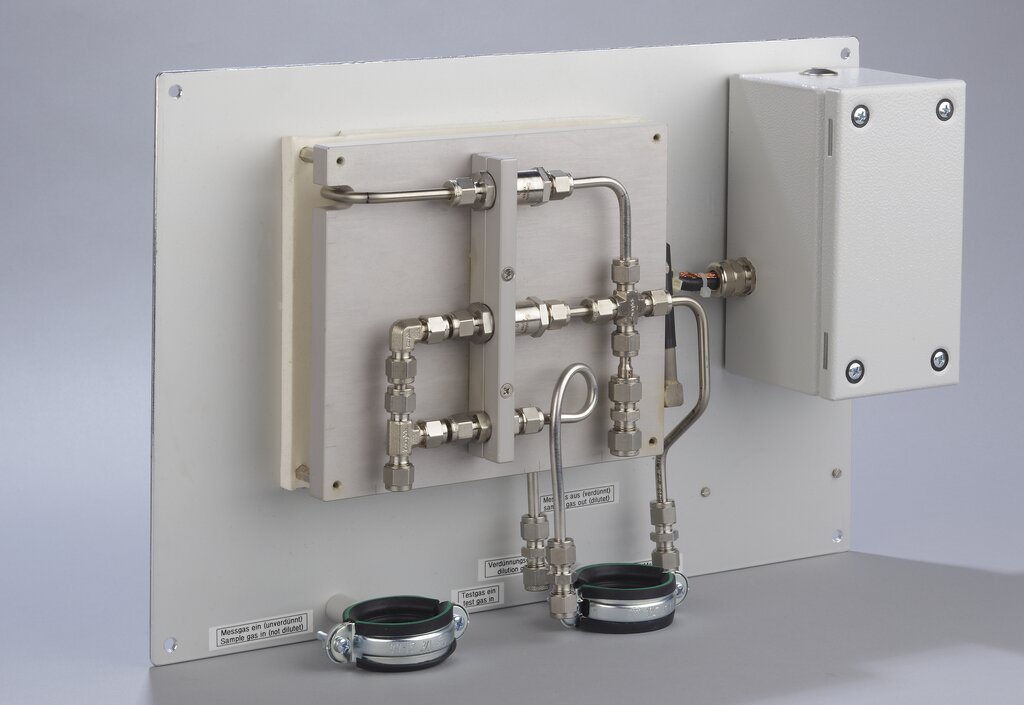

Dilution Unit DIL-1/H

Part No.: 20S4905

Product features

  • Dilution unit electrically heated up to max. +180 °C [+356 °F]
  • Installed on a mounting plate with thermally insulated cover
  • Dilution gas pre-heater heats the dilution gas to operating temperature
  • With a dilution ratio of 30-40:1 as standard, optionally in the range from 10:1 to 500:1
  • 2 internal filters for sample and dilution gas are provided to protect the dilution section
  • With check valve for test gas
  • Power: 230 V
  • Material of sample-contacting parts: stainless steel, quartz glass, Viton®
  • Optionally: bypass injector DIL-1/B to shorten the response time during vacuum operation; second sample gas outlet 2 x AUS for undiluted sample gas; add-on set DIL-1/-A with 1 precision pressure controller and 2 vacuum pressure gauges; add-on set DIL-1/-A-FM with 2 ball valves, 1 precision pressure controller, 2 vacuum pressure gauges and 1 flow meter for test gas feeding; control panel DIL-1/-S with 1 pressure controller and 2 pressure gauges, 1 flow meter and 2 shut-off valves

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    Heated from 0 to 180 °C, power: 230 V/50 Hz or 115 V/60 Hz

  • Applications
    The electrically heated M&C dilution unit DIL-1H is used in analytical technology to dilute the sample gas or components in the sample e.g. in the case of toxic gases, moisture or emission measuring. The M&C dilution unit is based on the functional dilution technique which has proved itself in the M&C gas sample probe SP2000-H/DIL for years.
  • Description
    Dilution unit type DIL‑1/H, 2 filters for sample and dilution gas, check valve for calibration gas, thermostat adjustable 0 to 180 °C, high‑temperature limiter with reset key responding at +30 °C above Tset and low‑temperature alarm with potential‑free status‑alarm contact at ‑30 °C below Tset, mounting panel with thermally insulated cover, power: 230 V/50 Hz, 800 W, dilution ratio to be indicated with the order
  • Product features
    Heating Yes
    Temperature 180 °C [356 °F]
    Shutoff/blowback No
    Power supply 220‒240 V
