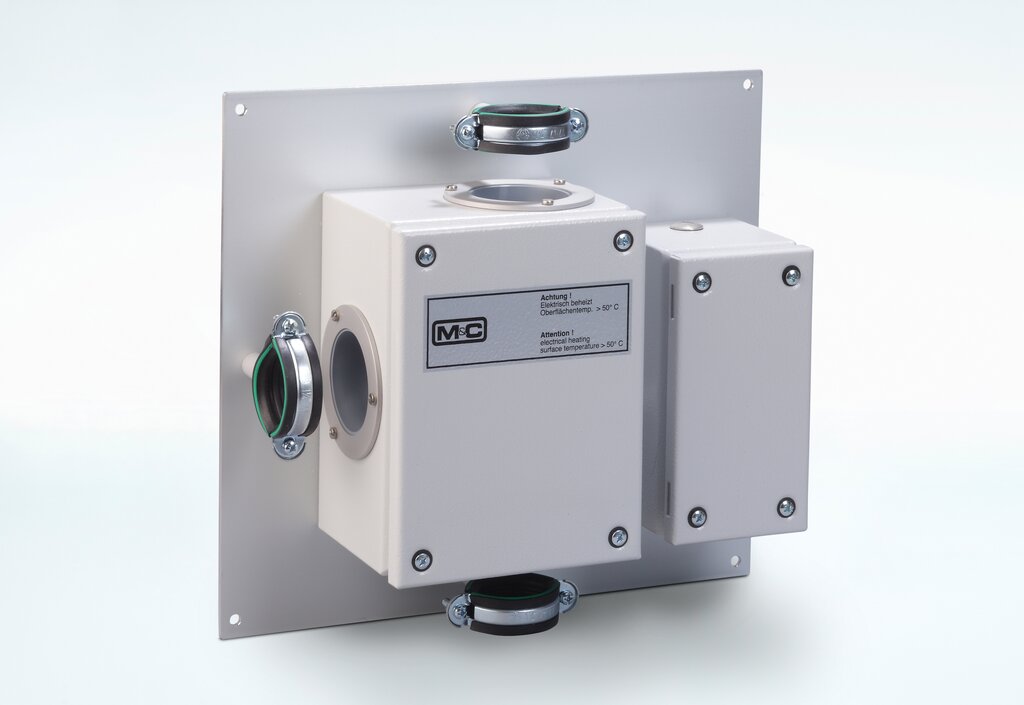

Union Tee, heated, 6mm

Part No.: 10B1001

Product features

  • Temperature-controlled Tee union connector
  • Heated up to max. +180 °C [+356 °F]
  • Control thermostat with high-temperature limiter and low-temperature alarm contact
  • With thermally insulated protective housing
  • On a heat-decoupled mounting plate for wall mounting
  • With heated connection fittings to prevent cold bridges
  • Connections: 3 x Ø 6 mm
  • Power: 230 V
  • Material of sample-contacting parts: stainless steel

Product information & downloads

Manual
Data sheet
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Applications
    In analytical technology, temperatures must be kept above the sample gas dew point. Therefore, it is absolutely necessary to avoid cold bridges. In order to ensure this, the temperature-controlled M&C hose/tube connectors T...-H1 and V...-H1 are used to connect heated sample lines type 3/4/5-N/M/H at an operating temperature of up to 180 °C.
  • Description
    Electrically heated union tee tube connector type T6‑H1 in a housing on a base plate 350 x 320 mm incl. 3 pipe clamps (44 to 55 mm), electrically heated from 0 to 180 °C, can be adjusted at the integrated control thermostat, high‑temperature limiter with reset key, responding at +30 °C above setpoint and low‑temperature alarm with potential‑free contact output at ‑30 °C below setpoint, power: 230 V/50 Hz, connection: for 6‑mm‑tube, material: stainless steel SS 316Ti
  • Product features
    Type Union tee
    Material Stainless steel
    Connection 6 mm rigid tube
    Heating Yes
