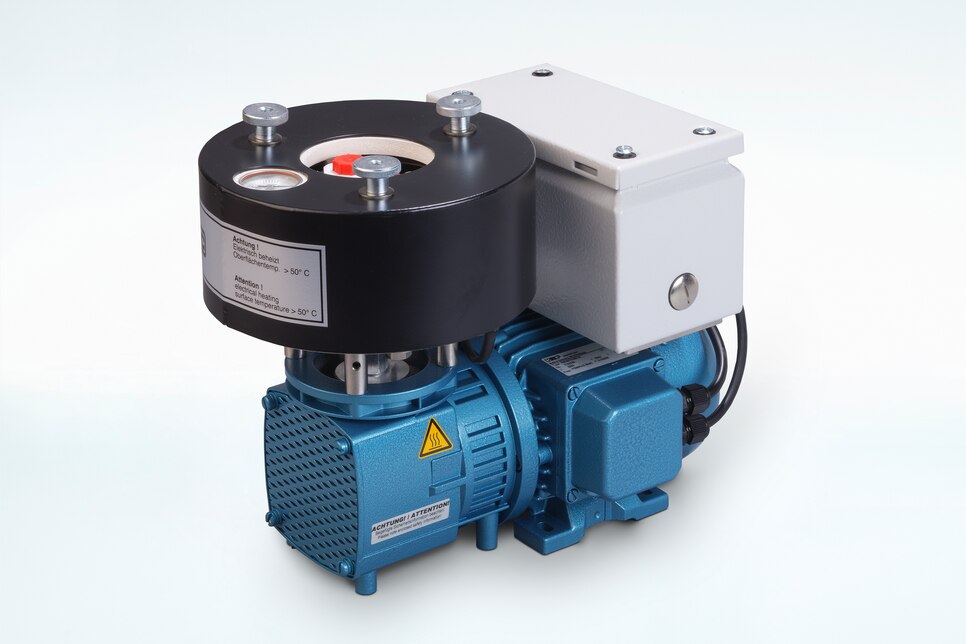

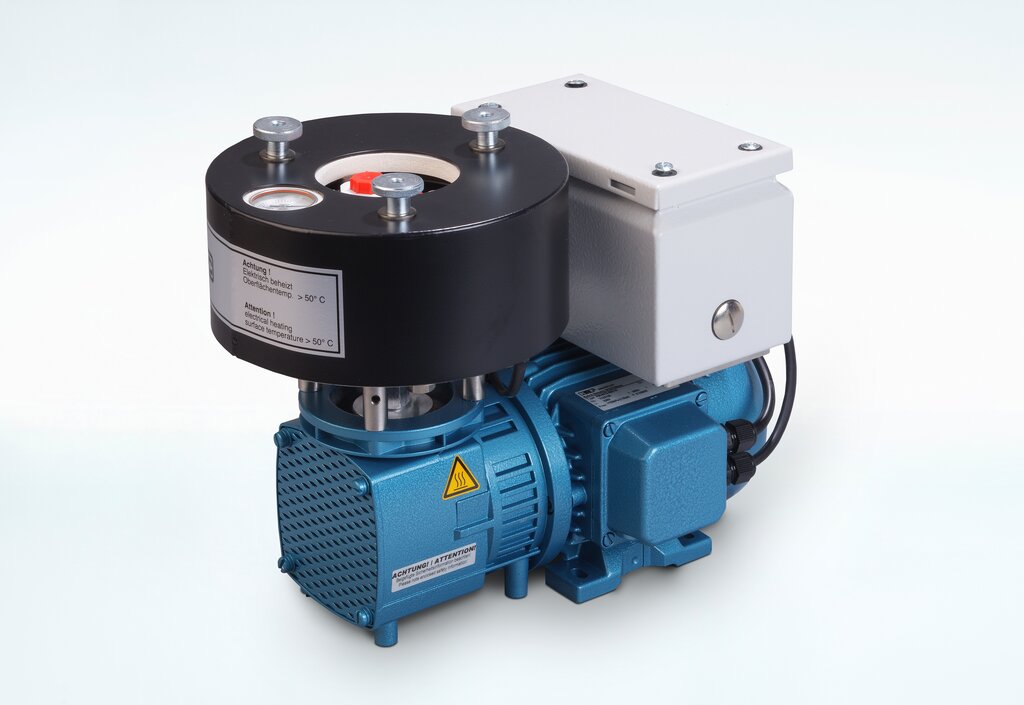

Diaphragm Pump MP26-H1

Part No.: 02P1300

Product features

  • Analytical diaphragm pump for hot gas measurement
  • Pump head electrically heated up to +180 °C [+356 °F]
  • With high-temperature limiter and low-temperature alarm function
  • Max. capacity: 10 Nl/min at +180 °C [+356 °F], without pressure
  • Corrosion-resistant
  • 100 % lubricant-free
  • High level of gas tightness
  • Long service life
  • Power: 230 V
  • Material of sample-contacting parts: PTFE, nickel-plated stainless steel

Product information & downloads

Manual
Data sheet
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    Heated up to max. 180 °C, capacity: 10 Nl/min without pressure, power: 115 V/60 Hz or 230 V/50 Hz

  • Applications
    The M&C pump MP26-H1 is suitable for corrosive gases. Its performance and construction are specially geared to meet the requirements of analytical technology for hot gas measurement.
  • Description
    Analytical diaphragm pump type MP26H1, all gas‑bearing parts out of PTFE, SS, capacity: max. 10 Nl/min without pressure, heated version from 0 °C to 180 °C, temperature controller with high‑temperature limiter, low‑temperature alarm and thermometer, connections: RC 1/4" f, IP44, power: 230 V/50 Hz, other capacities on request
  • Product features
    Type Diaphragm
    Explosion-proof No
    Heating Yes
    Flow rate > 300 Nl/h
    Material PTFE
    Power supply 220‒240 V
