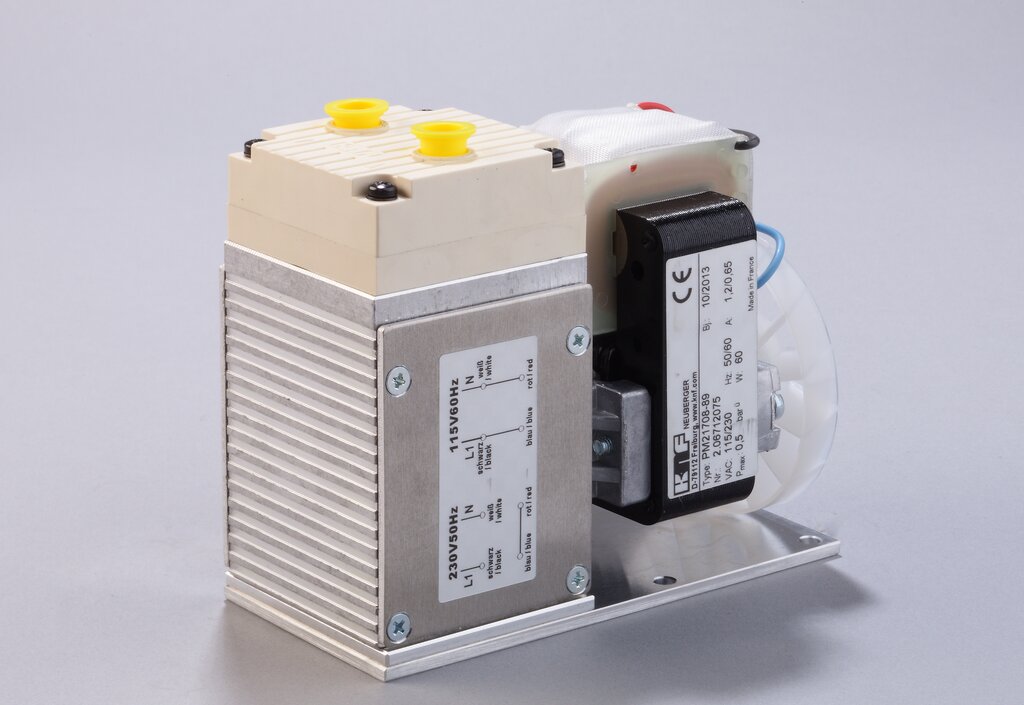

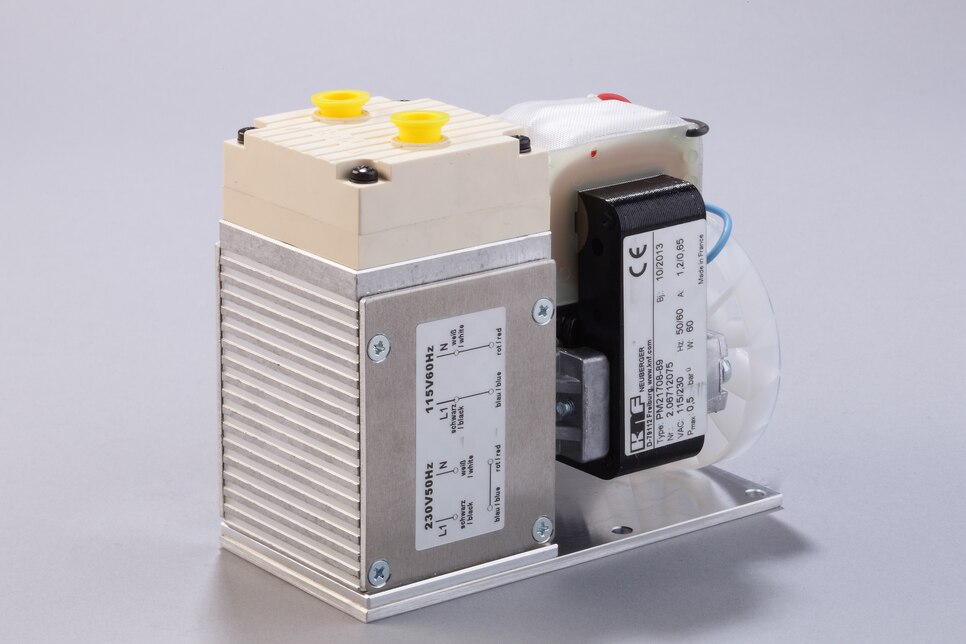

Diaphragm Pump N9 KPE

Part No.: 02P3360

Product features

  • Diaphragm pump built-in version w/o housing
  • Capacity at atmospheric pressure: max. 8.5 Nl/min
  • Max. operating pressure range: 0.15 to 1.5 bar abs.
  • Compact design
  • Corrosion-resistant
  • 100 % lubricant-free
  • High level of gas tightness
  • Power: 115/230 V
  • Material of sample-contacting parts: PVDF, PTFE, FKM

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    Without enclosure, material: PVDF, FPM, different flow capacities, power: 115/230 V, 50/60 Hz

  • Applications
    The compact diaphragm pumps type N3/5/9 are suitable for sampling air, gases and vapors in a temperature range between + 5 °C and + 40 °C. The construction and pump capacity are adapted to the requirements of analytical technology.
  • Description

    Diaphragm pump type N9KPE without housing, capacity: 8,5 Nl/min, connections: G 1/8" i, material: PVDF, Viton, power: 230/115 V, 50/60 Hz

  • Product features
    Type Diaphragm
    Explosion-proof No
    Heating No
    Flow rate > 300 Nl/h
    Material PVDF
    Power supply 110‒120 V 220‒240 V
