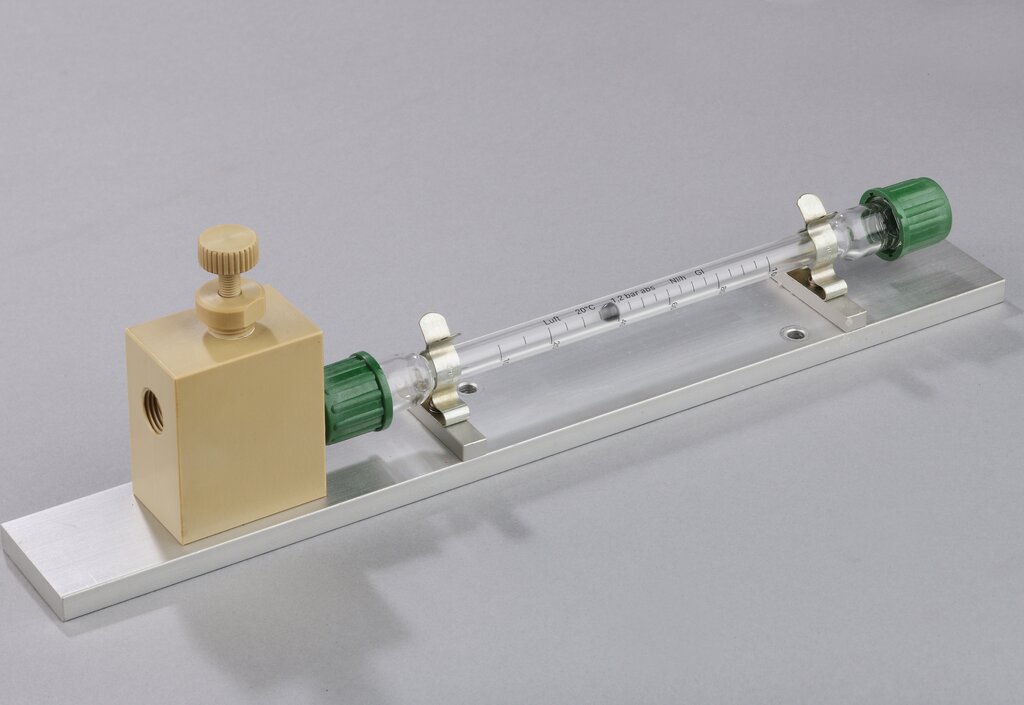

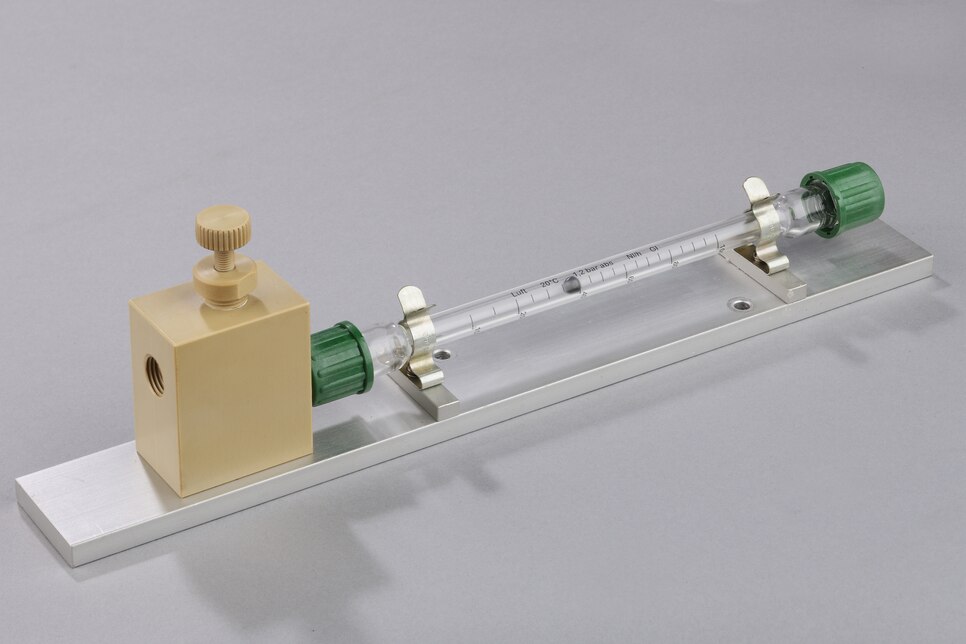

Flow Meter FM-10-H/100

Part No.: 09F1550

Product features

  • Float-type flow meter with needle valve in the gas inlet
  • Measuring range: 10 to 100 Nl/h air
  • Sample temperature: max. +150 °C [+302 °F]
  • Connection, inlet: GL 18–6 mm
  • Connection, outlet: G 1/4" i
  • Corrosion-resistant
  • For wall mounting in a vertical position
  • Material of sample-contacting parts: glass, PTFE, PEEK

Product information & downloads

Data sheet
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    For max. 150 °C, with needle valve, for wall mounting

  • Applications
    The M&C flow meters – type FM 1 and FM 10 – which are highly corrosion-resistant are used for controlling the flow in the case of aggressive gases and liquids. The flow tube is delivered according to your specific operating data, e.g. medium, temperature, pressure.
  • Description
    Float‑type flow meter FM‑10‑H/100, corrosion‑resistant and temperature‑resistant, max. 150 °C, measuring range: 10 to 100 Nl/h, medium: air, connection: inlet: G 1/4" i, outlet: GL 18 ‑ 6 mm, material: PTFE, glass, PEEK
