Electronic Controller LA-1.1

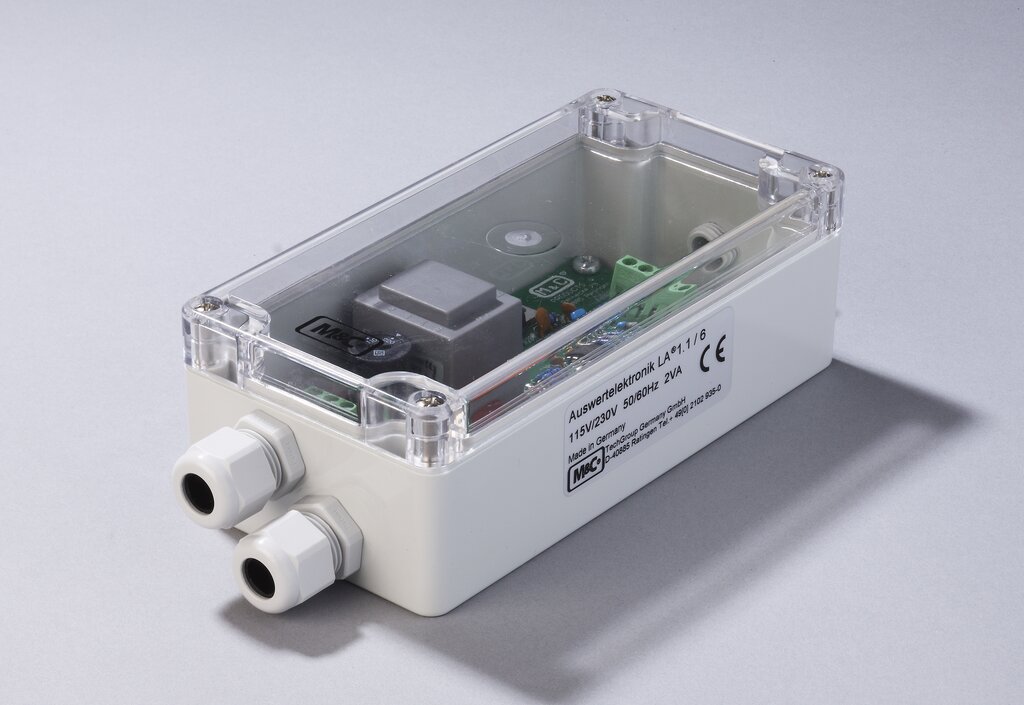

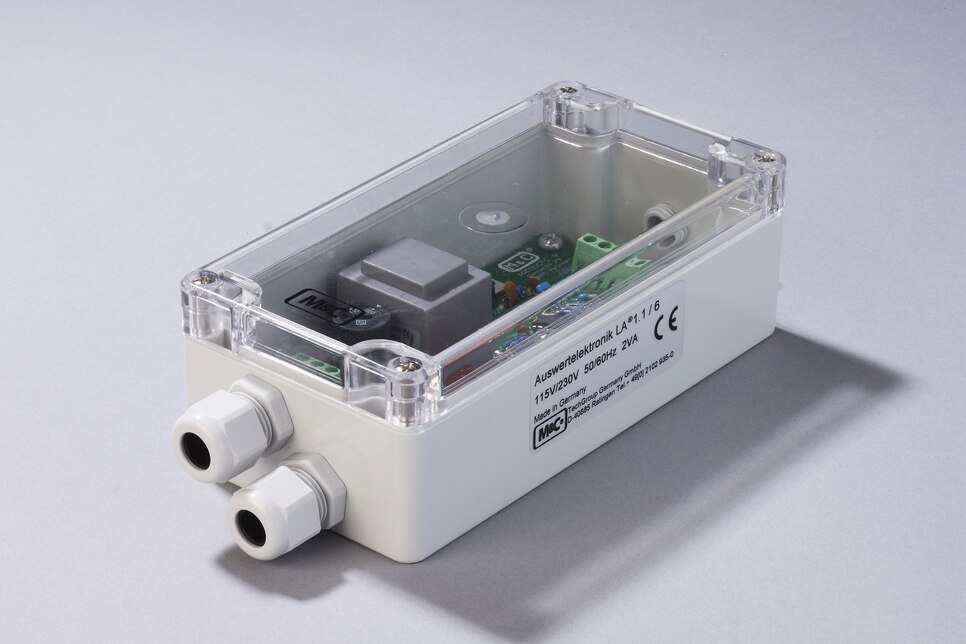

Electronic Controller LA-1.1

Part No.: 03E2001

Product features

Electronic controller for liquid alarm sensors LA1S and LA25S
With line-break monitoring
Wall-mounting housing with LEDs for displaying operational and fault status
With 2 potential free change-over contacts
Configurable alarm reset
Power consumption: 2 VA
Power: 115/230 V

Product information & downloads

Manual

Data sheet

Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

planned operating altitude above sea level in [m]

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂
