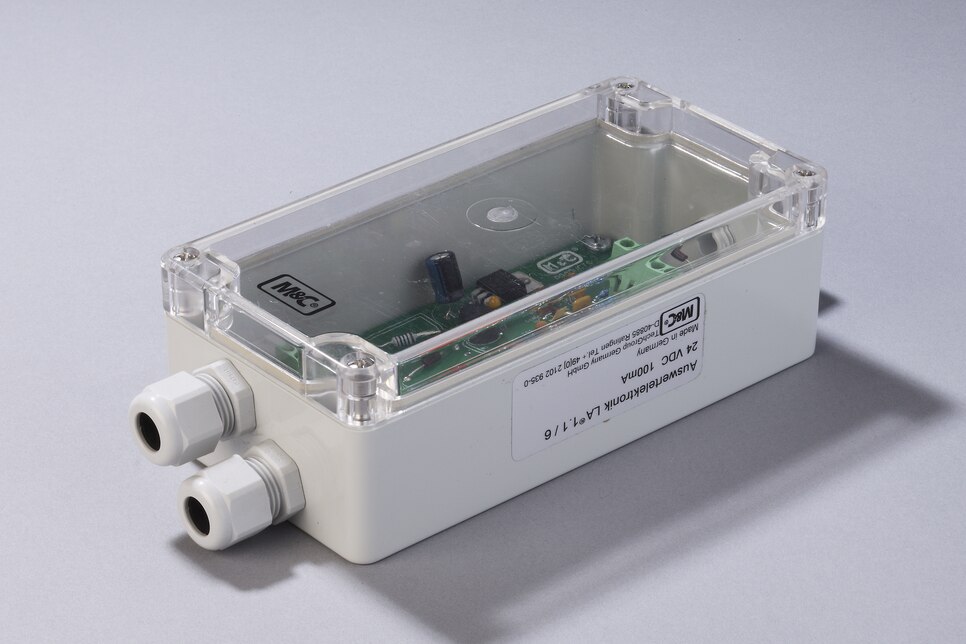

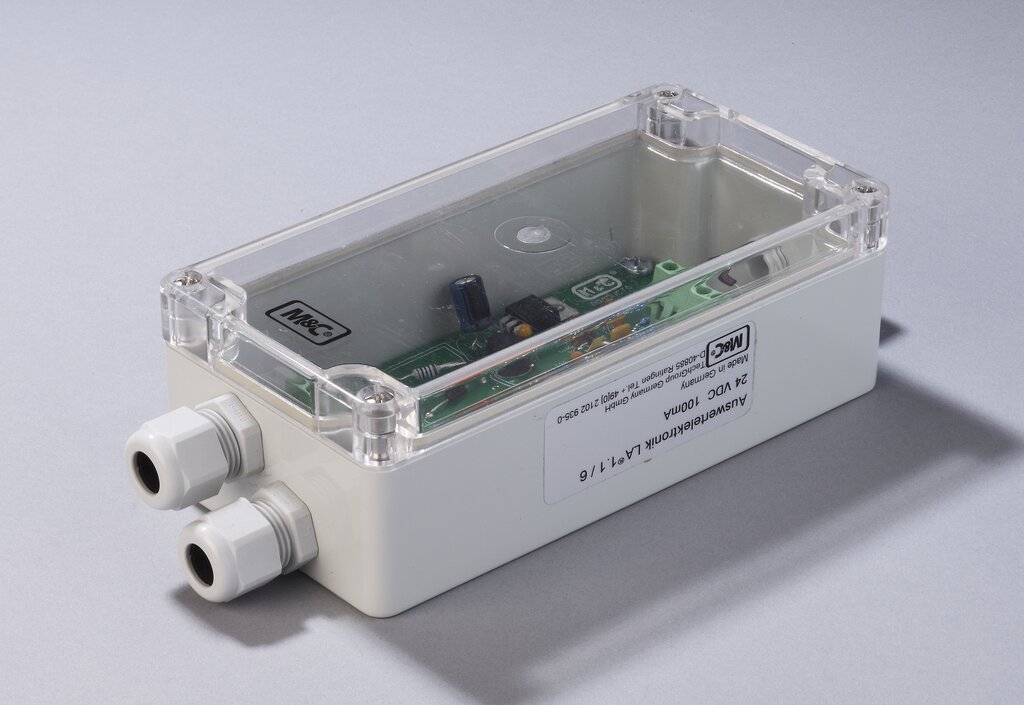

Electronic Controller LA-1.1

Electronic Controller LA-1.1

Part No.: 03E2001D

Product features

Electronic controller for liquid alarm sensors LA1S and LA25S
With line-break monitoring
Wall-mounting housing with LEDs for displaying operational and fault status
With 2 potential free change-over contacts
Configurable alarm reset
Power consumption: 2 VA
Power: 24 V DC

Product information & downloads

Manual

Data sheet
