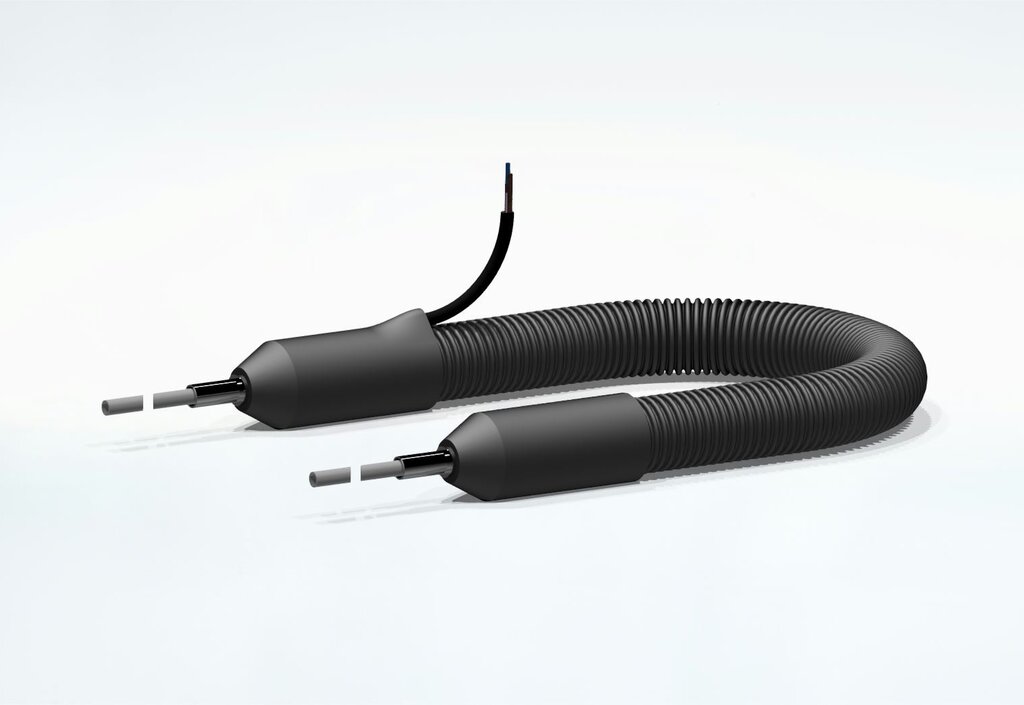

Self-Regulating Sample Line 4/80-6

Part No.: 01B6465

Product features

  • Self-regulating, electrically heated sample line
  • Sold by the meter for on-site assembly or optionally factory-assembled according to your specifications
  • Inner tube is replaceable
  • Holding temperature at -20 °C [-4 °F] ambient temperature: +80 °C [+176 °F]
  • Max. length allowed for -20 °C [-4 °F] ambient temperature: 55 m
  • Available up to a length of 99 m
  • Inner tube made of PTFE with Ø DN 6/8
  • Outer jacket is a black corrugated PA hose
  • Operating pressure: max. 3 bar g
  • Electrical connection: for on-site assembly directly at the heater band, for factory-assembled sample lines with 1 m silicone connection cable
  • Power: 230 V, 115 V available as option
  • Optionally: factory assembly, accessories for on-site assembly

Product information & downloads

Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (° C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the corresponding field. All other fields will immediately show the converted value.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Description
    Self‑regulating, electrically heated sample line type 4/80‑6, inner liner: replaceable PTFE tube DN 6/8 and outer jacket: corrugated PA hose, power consumption: 47 W/m at +10 °C, holding temperature: +80 °C at ambient ‑20 °C, price per meter
