GenTwo Multigas Analyzer V2.4

Part No.: 08A2225

Product features

  • Modular design for up to 6 different sensors
  • Resistive 7” color touch display
  • Multi-sensor enabled: Paramagnetic oxygen sensor (PMA2), ZrO2 oxygen sensor (in-situ), Electrochemical oxygen sensor, Electrochemical H2S sensor, Thermal conductivity detector (TCD), NDIR/NDUV/UVRAS photometers
  • Measured value storage over one year in the analyzer
  • Pressure compensation 0.8 to 1.2 bar abs.
  • Analog signal outputs 0–20/4–20 mA
  • Modbus and AK protocol TCP/IP
  • Ethernet/USB
  • User-programmable limit values
  • Remote operation via VNC viewer

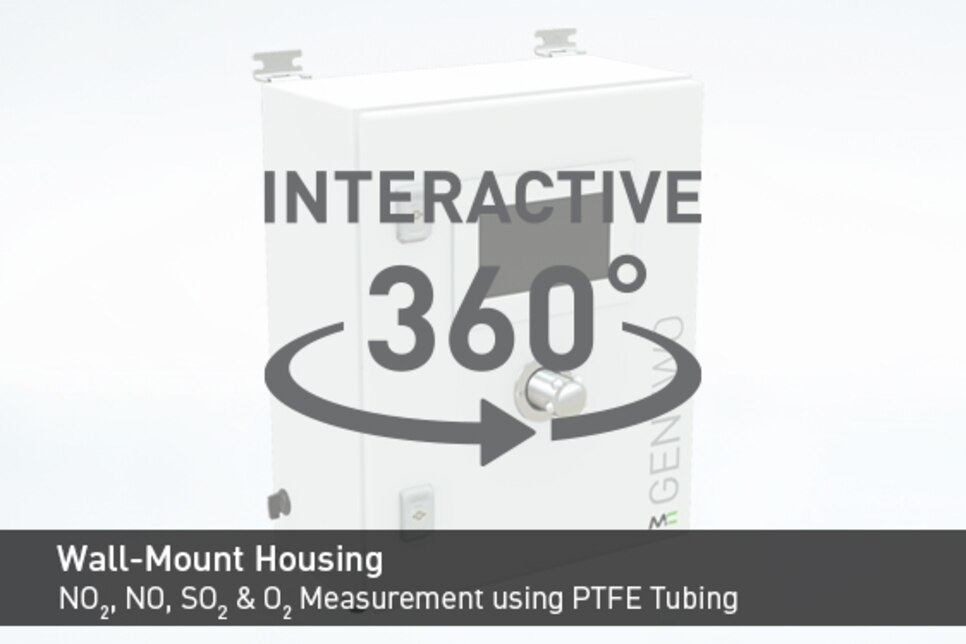

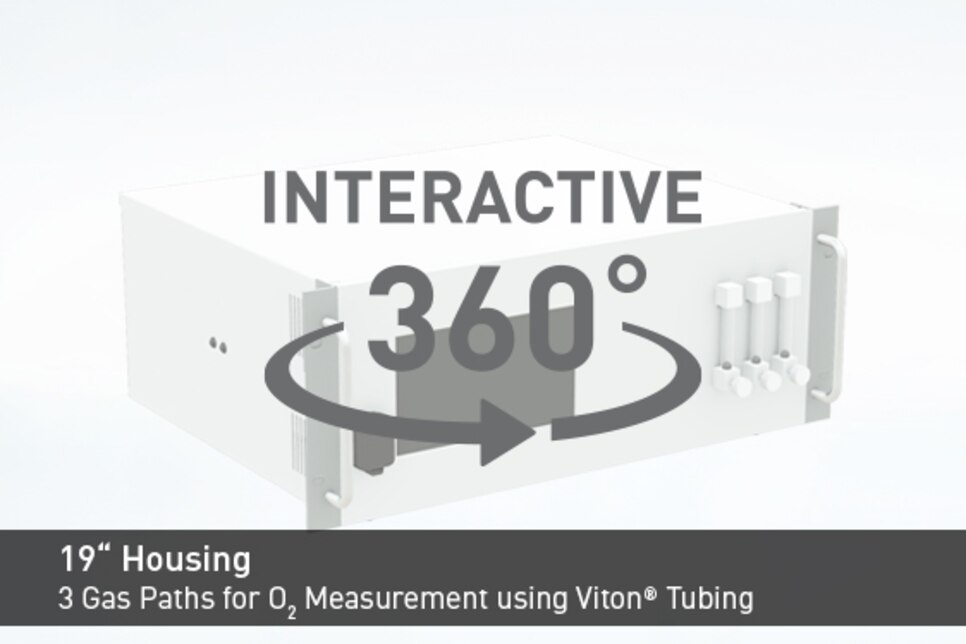

  • Three different housings: 19“ rack housing short, 19“ rack housing long, Wall-mount housing

Product information & downloads

Manual
Data sheet
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    The GenTwo® multigas analyzer for continuous measurement of gases in gas compounds offers two different sensor types for oxygen measurement depending on the requirements.

    They are based on the paramagnetic or electrochemical measuring principle. NDIR benches are used to measure infrared-active molecules such as CH4, CO, CO2, C3H8 und C6H14. Furthermore, NDUV photometers can be used for NO2, CL2, H2S, O3 and SO2 measurements in the ultraviolet spectral range in different cuvette designs. An UVRAS (Ultraviolet resonance absorption spectrometer) for NO and a TCD (thermal conductivity detector) for H2 measurement complete the range of sensors.

    Due to the modular design, we can specifically meet your requirements. For an inquiry, fill out our Multigas Analyzer Questionnaire - this will help us to better assess your requirements.

  • Applications
    The combination of the available sensor types enables numerous applications in non-explosive environments, e.g. combustion control, process control and for inerting monitoring. In addition, the application is possible in the field of environmental protection, for laboratory measurements and ambient air monitoring.
  • Description

    The stationary multigas analyzer for measuring up to six gases is available in standard and compact installation depth as a 19" desktop/rack‑mount housing variant as well as in a wall‑mount enclosure with 7" touch screen and universal power supply (100–240 V, 50–60 Hz). It provides digital and analog output signals, an internal circular data buffer, process pressure compensation and flow monitoring as standard. Additionally, we can offer the following options: humidity compensation for NDIR benches, front‑panel filter FPF+ with a wide selection of filter elements, flow meter FM40, a built‑in sample gas pump, housing ventilation and lateral slide rails. Besides FKM (Viton®) as standard material, PTFE or stainless steel can be used for the internal gas paths.
