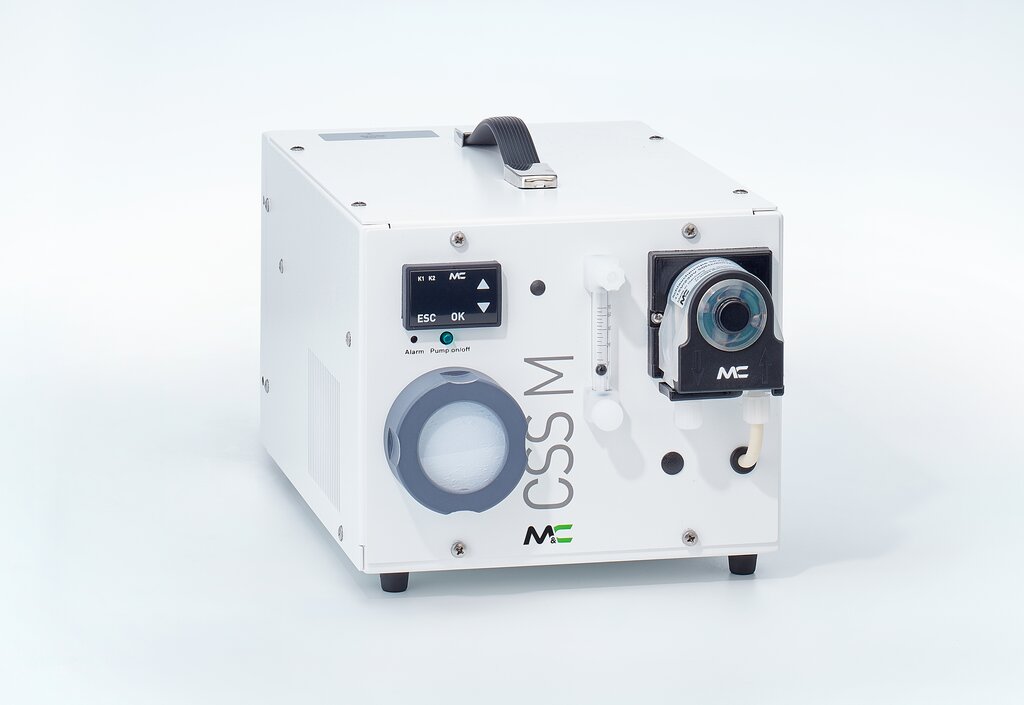

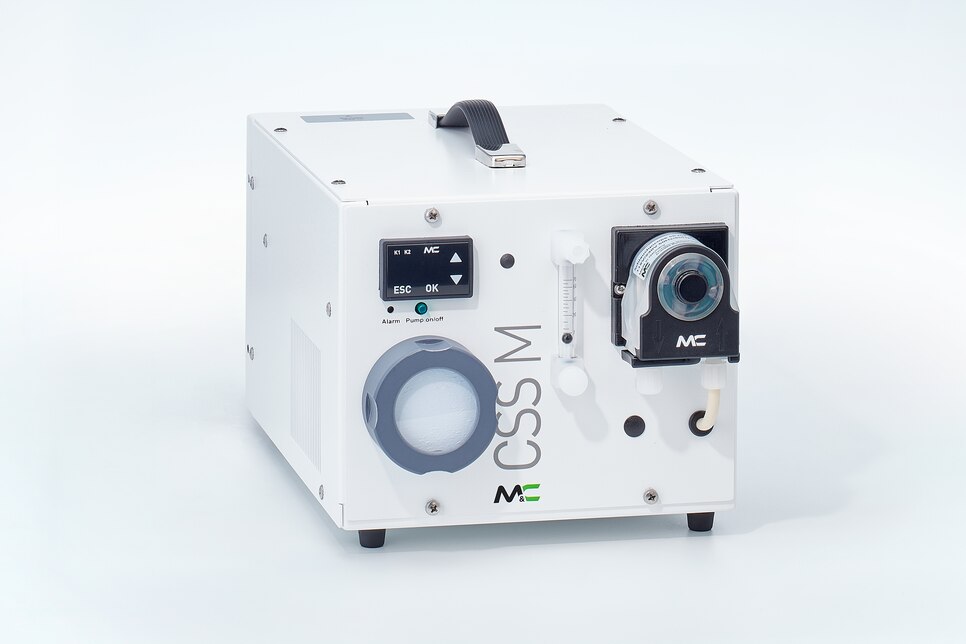

Portable Gas Conditioning System CSS-M

Part No.: 01G2000

Product features

  • Portable gas conditioning system with Peltier gas cooler
  • Compact design with low weight of approx. 11 kg [≈ 24.3 lbs]
  • Gas flow rate: max. 70 Nl/h
  • Gas outlet dew point adjustable from +2 to +15 °C [+35.6 to +59 °F]
  • Dew point stability < ±0.1 °C [±0.18 °F]
  • Self‑monitoring and low maintenance
  • Ready for operation in approx. 10 minutes
  • Power: 230 V

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Applications
    The M&C portable gas conditioning unit CSS-M is designed to carry out precise gas analyses at different locations.The entire gas conditioning unit is housed in a robust aluminium-frame case to enable the user to carry out gas analyses quickly, reliably and with little maintenance. The CSS-M gas conditioning unit is suitable for variable, discontinuous use as well as for continuous operation. The components built into the CSS-M gas conditioning unit can be used for standard applications.
  • Description
    Portable gas conditioning system type CSS‑M for 70 Nl/h in a steel‑sheet housing, consisting of: Peltier gas cooler ECP, regulated to 5 °C, fine filter FPF‑2 with liquid alarm, sample gas pump N3KPE, peristaltic pump SR25.2 and flow meter FM40, power: 230 V/50 Hz, the sample gas pump starts automatically when the gas cooler falls below +8 °C
  • Product features
    Portable Yes
    Cooling Peltier
    Gas paths 1
    Flow rate/gas path < 70 Nl/h
    Material Glass
    Power supply 220‒240 V

Options & spare parts
Portable Gas Conditioning System CSS-M

Here you get an overview of suitable options & spare parts

Spare parts

Spare parts
