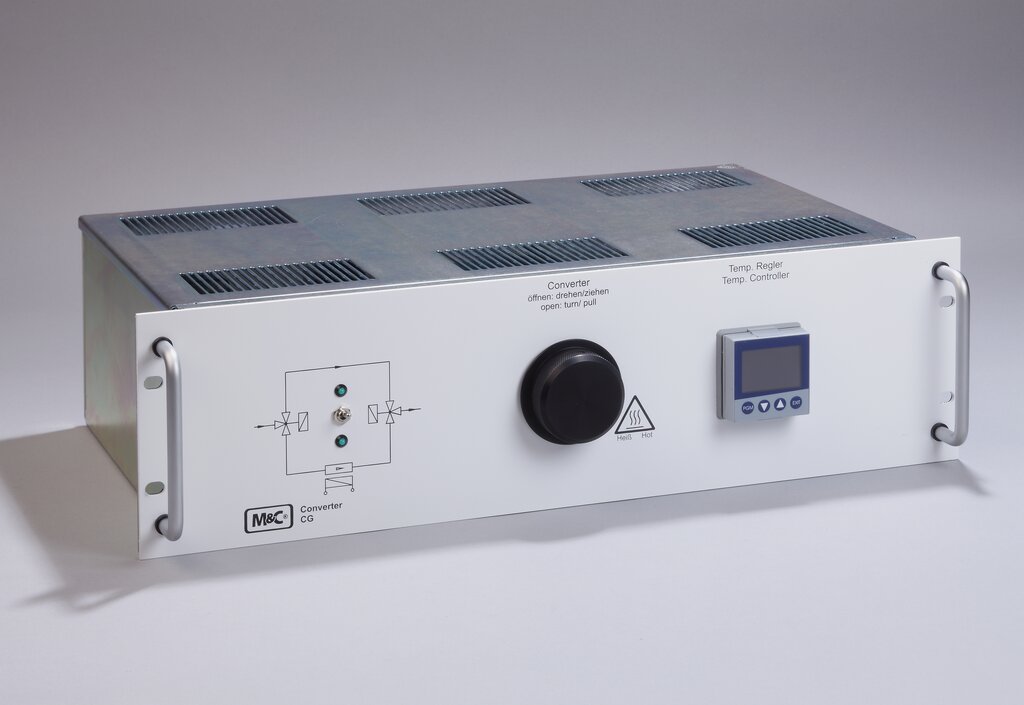

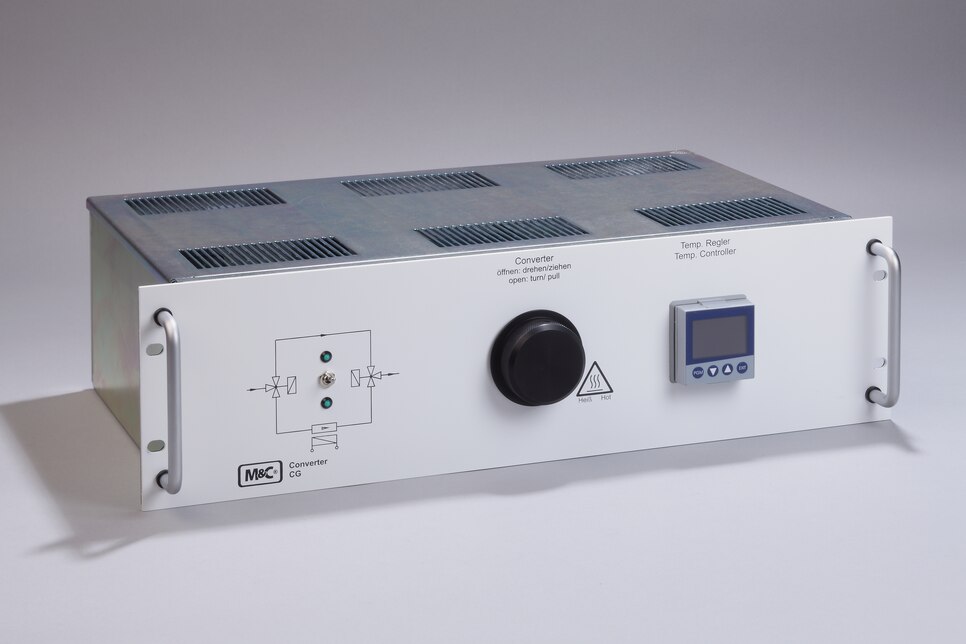

Gas Converter CG-2M

Part No.: 50A1500

Product features

  • NO2 converter with 2 bypass valves to bypass the catalyst
  • With unheated gas inlet and outlet
  • In a compact 19" rack housing
  • High-flow capacity
  • Long service life
  • Catalyst cartridge easy to change without any tools
  • Operating temperature adjustable up to +680 °C [+ 1256 °F]
  • Power: 230 V
  • Material of sample-contacting parts: stainless steel, Viton®, PVDF, PTFE

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    With bypass valves for bypassing the catalyst cartridge, power: 115 V/60 Hz or 230 V/50 Hz

  • Applications
    In many countries, clean-air regulations require a continuous measurement of nitrogen oxides NOx, as the sum of nitrogen dioxide NO2 and nitrogen monoxide NO, for combustion processes as soon as the share of NO2 exceeds 5 % of the total NOx emission. Due to the conversion to NO, the use of a standard NO analyzer is possible.
  • Description
    Gas converter type CG‑2M with 2 bypass valves to bypass the catalyst, with unheated sample gas inlet, in a 19" rack housing, thermally insulated compact tube furnace, electrically heated with thermocouple Ni‑CrNi and electronic temperature controller adjustable from 50 to 680 °C, high and low temperature alarm, gas connections: G 1/4" female ISO, material: SS 316Ti , Viton®, PVDF, PTFE, power: 230 V/50 Hz, 520 VA, without catalyst cartridge
  • Product features
    Heating No
    Solenoid valve Yes
    Power supply 220‒240 V
