Part No.: 20S5510

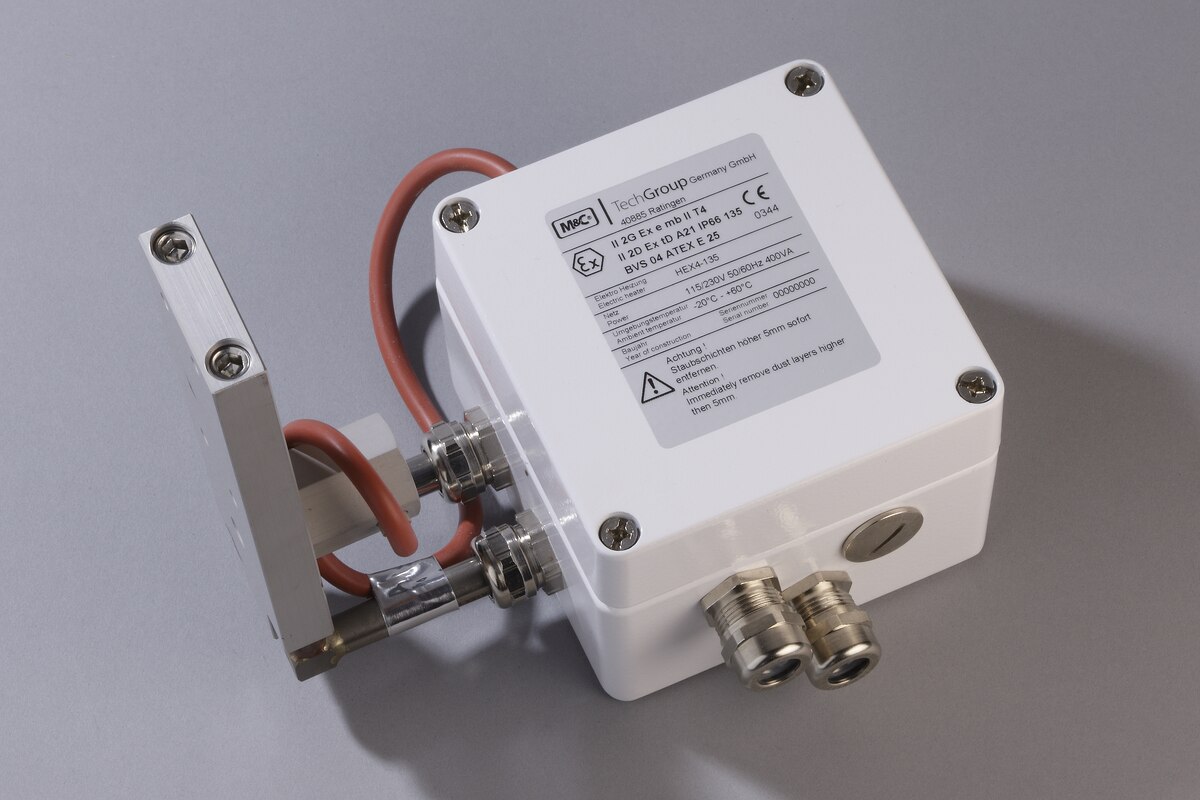

Ex Heater HEX4-135, Zone 1/21

Product features

Self-regulating Ex heater for heating metal bodies
Approval according to ATEX, IECEx for sampling from gas Ex zones 1/2 or 21/22
For gas sample probes type SP3000, SP3100 and SP3110 or heated filters, mounting is carried out by M&C
Heater can also be used when heating energy radiates through a suitable partition wall into areas of Ex zone 0 or 20
Operating temperature range from 90 to 120 °C [194 to 248 °F]
Maximum surface temperature: 135 °C [275 °F]
With low-temperature alarm contact
Power: 110–240 V

Configure now

Request a quote
