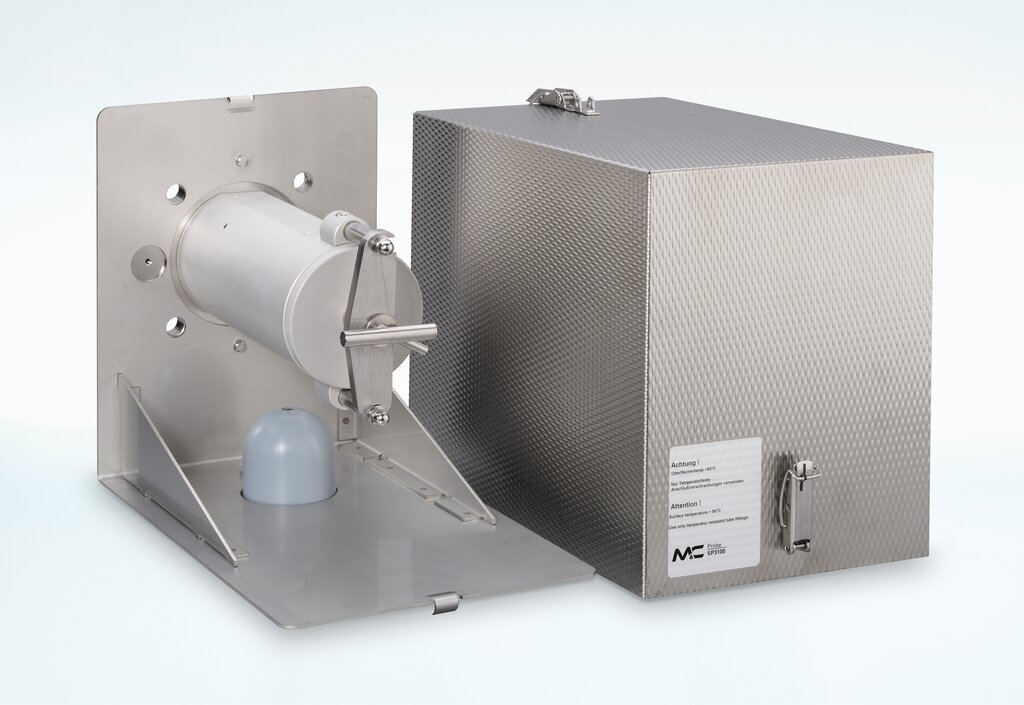

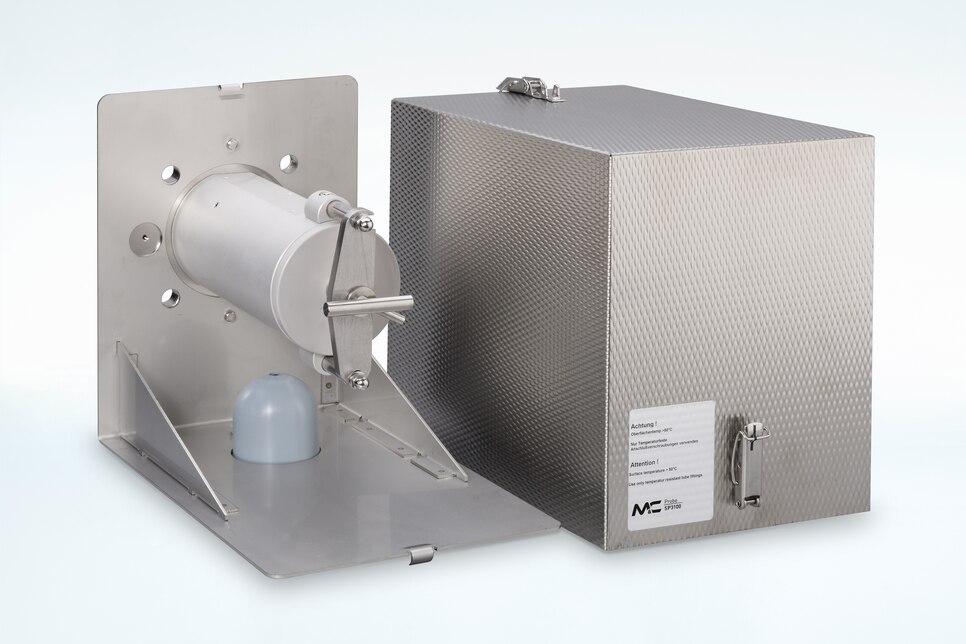

Gas Sample Probe SP3100/Ex, Zone 1

Part No.: 20S5600

Product features

  • Gas sample probe for sampling from zones with explosive gas
  • Approval according to ATEX for sampling from gas Ex zones 0, 1 and 2
  • Approval according to ATEX for mounting in Ex zones 1, 2 or 21, 22
  • Stainless steel filter element, ceramic optionally available
  • Sealing material for filter housing lid and flange: graphite
  • Adaption to nearly all process conditions due to its compact and modular design
  • Easy installation and low maintenance
  • Low dead volume
  • Material of sample-contacting parts: stainless steel, graphite
  • Optionally: sample tube, pre-filter with or without extention tube, self-regulating or controlled heater, back-purge unit, 2-way or 2/3-way ball valve in the probe inlet, pneumatic actuator for a ball valve, second sample gas outlet, spun-glass cartridge

Certifications

Product information & downloads

Spare parts
Gas Sample Probe SP3100/Ex, Zone 1

Filter element F-3SS150
Part No.: 90F0126

Filter element type F‑3SS150, length: 150 mm, material: stainless steel 316L, filter porosity: 3 µm

Filter element S-2K150
Part No.: 90S0020

Filter element type S‑2K150, length: 150 mm, material: ceramics, filter porosity: 2 µm

Gasket 30, graphite
Part No.: 93S0055

Gasket (30) for filter element, material: graphite

O-Ring, Viton, 39,00x3,50
Part No.: 93S0020

O‑ring (39) for SP2000 and CLF, material: Viton

O-Ring, Viton, 55,00x3,50
Part No.: 93S0025

O‑ring (55) for SP2000, material: Viton

Gasket 69, graphite
Part No.: 93S0030

Gasket (69) for SP2000‑H320, material: graphite

Flange seal DN65 PN6 (67), graphite
Part No.: 90S2084

Flange seal DN 65 PN 6, graphite (67)

Heating cartridge HLPR, 135 °C, Ex
Part No.: 90S5050

Spare heater element for HEX4, 135 °C

Heating cartridge HLPR, 180 °C, Ex
Part No.: 90S5055

Spare heater element for HEX4, 180 °C

HEX4/SP180-H, alarm switch Ex, 135 °C
Part No.: 90S5060

Alarm switch for heater HEX4. 135 °C < 90 °C NO for probe SP3000, 3100 Temperature class T4 and for SP180‑H‑EX2 Temperature class T4

HEX4/SP180-H Alarm switch Ex 180°C
Part No.: 90S5065

Alarm switch for heater HEX4. 180°C < 130°C NO for probe SP3000 , 3100 Temperature class T3 and for SP180‑H‑EX2 Temperature class T3, T2

Options
Gas Sample Probe SP3100/Ex, Zone 1

SP3xxx/EX-RS, blowback, 230 V, option
Part No.: 20S5560

Option: blowback in explosion‑proof version according to ATEX Ex II 2G mb IIC 2D IIIC T4 135°C blowback to zone 20 or 1, blowback into zone 0 is not possible, incl. buffer storage 2 l, solenoid valve, check valve and pressure relief valve in the sample gas outlet, power: 230 V/50 Hz ambient temperature +55°C

SP3xxx/EX-RS, blowback, 115 V, option
Part No.: 20S5560A

Option: blowback in explosion‑proof version according to ATEX: Ex II 2G mb IIC 2D IIIC T4 135°C for blowback into zone 20 or 1, blowback into zone 0 not possible, incl. buffer storage 2 l, solenoid valve, check valve and pressure relief valve, power: 115 V/60 Hz ambient temperature +55°C

HEX4-135, zone 1/21, 115/230 V, option
Part No.: 20S5510

Product features

  • Self-regulating Ex heater for heating metal bodies
  • Approval according to ATEX, IECEx for sampling from gas Ex zones 1/2 or 21/22
  • For gas sample probes type SP3000, SP3100 and SP3110 or heated filters, mounting is carried out by M&C
  • Heater can also be used when heating energy radiates through a suitable partition wall into areas of Ex zone 0 or 20
  • Operating temperature range from 90 to 120 °C [194 to 248 °F]
  • Maximum surface temperature: 135 °C [275 °F]
  • With low-temperature alarm contact
  • Power: 110–240 V

HEX4-180, zone 1/21, 115/230 V, option
Part No.: 20S5520

Product features

  • Self-regulating Ex heater for heating metal bodies
  • Approval according to ATEX, IECEx for sampling from gas Ex zones 1/2 or 21/22
  • For gas sample probes type SP3000, SP3100 and SP3110 or heated filters, mounting is carried out by M&C
  • Heater can also be used when heating energy radiates through a suitable partition wall into areas of Ex zone 0 or 20
  • Operating temperature range from 120 to 160 °C [248 to 320 °F]
  • Maximum surface temperature: 180 °C [356 °F]
  • With low-temperature alarm contact
  • Power: 110–240 V

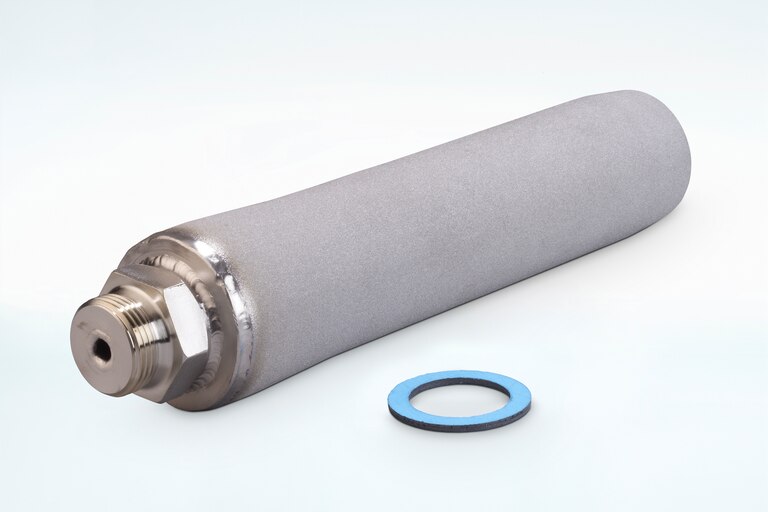

SP2000/V20-0
Part No.: 20S9105

Product features

  • Pre-filter with volume displacer for gas sampling from processes with high dust levels
  • For cleaning purposes: pre-filter can be back-purged
  • Pre-filter can be used with an ATEX-certified gas sample probe
  • For dust loads from 2 to 10 g/m3
  • Male thread connection: G 3/4"
  • Length: 220 mm [≈ 0.7 ft] without thread connection
  • Filter porosity: 2 µm
  • Sampling temperature: max. +600 °C [+1112 °F]
  • Material of sample-contacting parts: stainless steel, Novapress®

SP2000/V20-0/HC
Part No.: 20S9115

Product features

  • Pre-filter with volume displacer for gas sampling from processes with high dust levels
  • For cleaning purposes: pre-filter can be back-purged
  • Pre-filter can be used with an ATEX-certified gas sample probe
  • For dust loads from 2 to 10 g/m3
  • Male thread connection: G 3/4"
  • Length: 220 mm [≈ 0.7 ft] without thread connection
  • Filter porosity: 2 µm
  • Sampling temperature: max. +900 °C [+1652 °F]
  • Material of sample-contacting parts: Hastelloy®, Novapress®

SP2000/V20-1
Part No.: 20S9145

Product features

  • Pre-filter with volume displacer for gas sampling from processes with high dust levels
  • For cleaning purposes: pre-filter can be back-purged
  • Pre-filter can be used with an ATEX-certified gas sample probe
  • For dust loads > 10 g/m3
  • Male thread connection: G 3/4"
  • Length: 520 mm [≈ 1.7 ft] without thread connection
  • Filter porosity: 2 µm
  • Sampling temperature: max. +600 °C [+1112 °F]
  • Material of sample-contacting parts: stainless steel, Novapress®

SP2000/V20-1/HC
Part No.: 20S9155

Product features

  • Pre-filter with volume displacer for gas sampling from processes with high dust levels
  • For cleaning purposes: pre-filter can be back-purged
  • Pre-filter can be used with an ATEX-certified gas sample probe
  • For dust loads > 10 g/m3
  • Male thread connection: G 3/4"
  • Length: 520 mm [≈ 1.7 ft] without thread connection
  • Filter porosity: 2 µm
  • Sampling temperature: max. +900 °C [+1652 °F]
  • Material of sample-contacting parts: Hastelloy®, Novapress®

SP2000/V20-1/HC, 0.5 µm
Part No.: 20S9156

Pre‑filter type V20‑1/HC for SP probes, internal Hastelloy® pre‑filter with volume displacer inside, length: 520 mm, 60 mm OD, filter porosity: 0.5 µm, temperature: max. 900 °C, connection: G 3/4", material: Hastelloy®C

SP2000/V20-3
Part No.: 20S9300

Product features

  • Pre-filter with volume displacer for gas sampling from processes with high dust levels
  • For cleaning purposes: pre-filter can be back-purged
  • Pre-filter can be used with an ATEX-certified gas sample probe
  • For dust loads from 2 to 10 g/m3
  • Male thread connection: G 3/4"
  • Length: 300 mm [≈ 1 ft] without thread connection
  • Filter porosity: 2 µm
  • Sampling temperature: max. +600 °C [+1112 °F]
  • Material of sample-contacting parts: stainless steel, Novapress®
  • Optionally: Lengths up to 1000 mm [≈ 3.3 ft] available

SP2000/V20-T, PTFE
Part No.: 20S9315

Product features

  • Tubular pre-filter for gas sampling from processes with high levels of fine dust
  • Tubular pre-filter made of PTFE fabric with interwoven metal threads
  • Double-layer structure for high back-purging efficiency
  • Pre-filter can be used with an ATEX-certified gas sample probe
  • For dust loads > 10 g/m3
  • Male thread connection on the support tube: G 3/4"
  • Length: 400 mm [≈ 1.3 ft] without thread connection
  • Filter porosity: 3 µm
  • Sampling temperature: max. +200 °C [+392 °F]
  • Material of sample-contacting parts: PTFE, stainless steel, Novapress®

SP2000/V12-1/SS with protective tube
Part No.: 20S9525

Product features

  • Pre-filter with protection tube for gas sampling from processes with high dust levels
  • Protection tube with mounting flange made of stainless steel
  • Double-layer structure for high back-purging efficiency
  • For dust loads > 10 g/m3
  • Mounting flange:  DN 65 PN 6 B, with 4 welded-in threaded bolts
  • Length: 500 mm [≈ 1.6 ft]
  • Filter porosity: 1 µm
  • Sampling temperature: max. +600 °C [+1112 °F]
  • Material of sample-contacting parts: ceramic, stainless steel, Novapress®

SP2000/V12-3
Part No.: 20S9510

Product features

  • Pre-filter with mounting flange adapter for gas sampling from processes with high dust levels
  • Mounting flange adapter made of stainless steel with 4 welded-in threaded bolts
  • Double-layer structure for high back-purging efficiency
  • For dust loads > 10 g/m3
  • Mounting flange size:  DN 65 PN 6 B
  • Length: 1000 mm [≈ 3.3 ft]
  • Filter porosity: 1 µm
  • Sampling temperature: max. +1000 °C [+1832 °F]
  • Material of sample-contacting parts: ceramic, stainless steel, Novapress®
  • Optionally: volume displacer

SP2000/Vm 500 mm, SS
Part No.: 20S9165

Extension tube Vm 500 mm for pre‑filters at SP probes with G 3/4" male connection and internal volume displacer, length: 500 mm, incl. gasket set, sampling temperature: max. 600 °C, material: SS 316 Ti (for pre‑filters V20)

SP2000/Vm 1000 mm, SS
Part No.: 20S9170

Extension tube Vm1000 mm for pre‑filters at SP‑probes, with G 3/4" male connection and internal volume displacer, length: 1000 mm, incl. gasket set, sampling temperature: max. 600 °C, material: SS 316 (for pre‑filters V20)

SP2000/Vm 1500 mm, SS
Part No.: 20S9175

Extension tube Vm1500 mm for pre‑filters at SP probes, with G 3/4" male connection and internal volume displacer, length: 1500 mm, incl. gasket set, temperature: max. 600 °C, material: SS 316Ti (for pre‑filters V20)

SP2000/SS, sample tube
Part No.: 20S9065

Product features

  • Sample tube with welded thread connection
  • For point-selective sampling
  • Sample tube can be used with an ATEX-certified gas sample probe
  • Male thread connection: G 3/4"
  • Length: 1 m [≈ 3.3 ft] without connection thread
  • Sampling temperature: max. +600 °C [+1112 °F]
  • Material of sample-contacting parts: stainless steel, Novapress®
  • Optionally: max. length of 2.5 m [≈ 8.2 ft] available

SP2000/SS-Vm, sample tube
Part No.: 20S9067

Product features

  • Sample tube with volume displacer for applications with low sample gas flow
  • For point-selective sampling
  • Sample tube can be used with an ATEX-certified gas sample probe
  • Male thread connection: G 3/4"
  • Length: 1 m [≈ 3.3 ft] without connection thread
  • Sampling temperature: max. +600 °C [+1112 °F]
  • Material of sample-contacting parts: stainless steel, Novapress®
  • Optionally: max. length of 2.5 m [≈ 8.2 ft] available

SP2000/HC, sample tube
Part No.: 20S9090

Product features

  • Sample tube for higher sampling temperatures
  • For point-selective sampling
  • Sample tube can be used with an ATEX-certified gas sample probe
  • Male thread connection: G 3/4"
  • Length: 1 m [≈ 3.3 ft] without connection thread
  • Sampling temperature: max. +900 °C [+1652 °F]
  • Material of sample-contacting parts: Hastelloy®, Novapress®
  • Optionally: max. length of 2.5 m [≈ 8.2 ft] available

SP2000/KA, sample tube
Part No.: 20S9080

Product features

  • Sample tube for very high sampling temperatures
  • For point-selective sampling
  • Sample tube can be used with an ATEX-certified gas sample probe
  • Male thread connection: G 3/4"
  • Length: 1 m [≈ 3.3 ft] without connection thread
  • Sampling temperature: max. +1300 °C [+2372 °F]
  • Material of sample-contacting parts: Kanthal®, stainless steel, Novapress®
  • Optionally: max. length of 1.5 m [≈ 4.9 ft] available
