Flow Chamber LS/LA1S PVDF

Part No.: 03E3001

Product features

  • Liquid alarm sensor LA1S with flow chamber LS w/o evaluation electronics
  • Gas connections flow chamber: G 1/4" i
  • Sensor connection: Ø 12 mm
  • Pressure: 0–4 bar g
  • Liquid alarm sensor with 4 m electrical connecting cable
  • Material of sample-contacting parts: glass, platinum, PVDF, FKM

Product information & downloads

Manual
Data sheet
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    For conductive media, also for mounting into the universal filter type F...-D

  • Applications
    Liquid alarm sensors are used in gas sample conditioning systems for monitoring downstream analysis instruments. This monitoring device reliably signals the penetration of condensate in the case of cooling or condensate drain-off equipment being defective and thus avoids expensive downtime as well as high repair costs for analysis instruments. In the event of an alarm, the power supply for the sample gas pump or a solenoid valve is to be switched off in the gas sample conditioning system.
  • Description

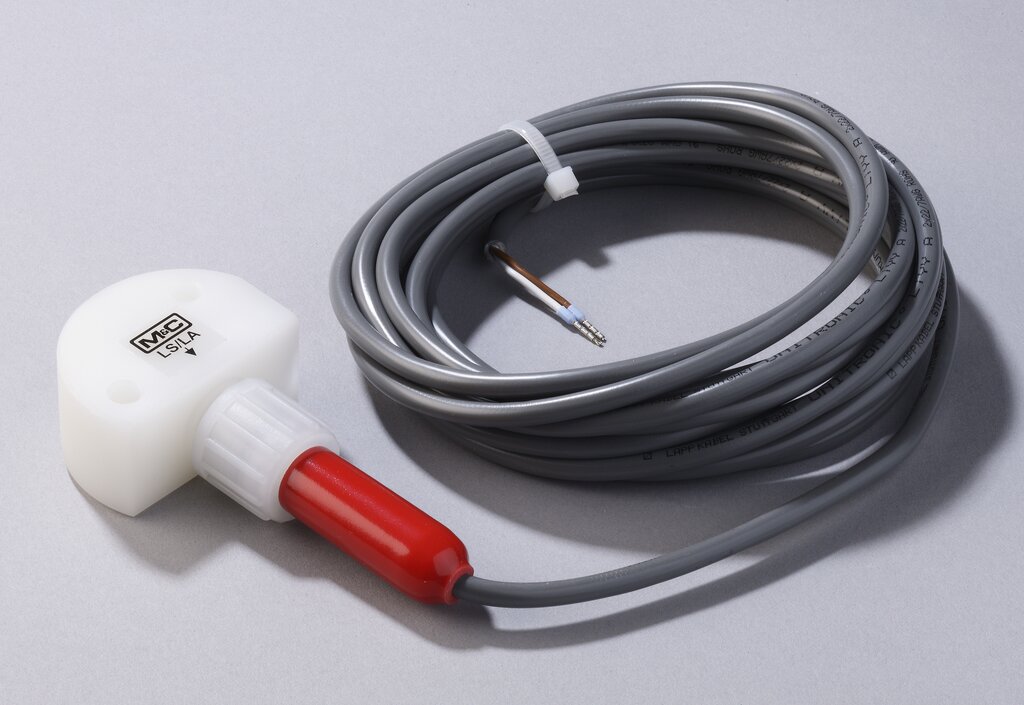

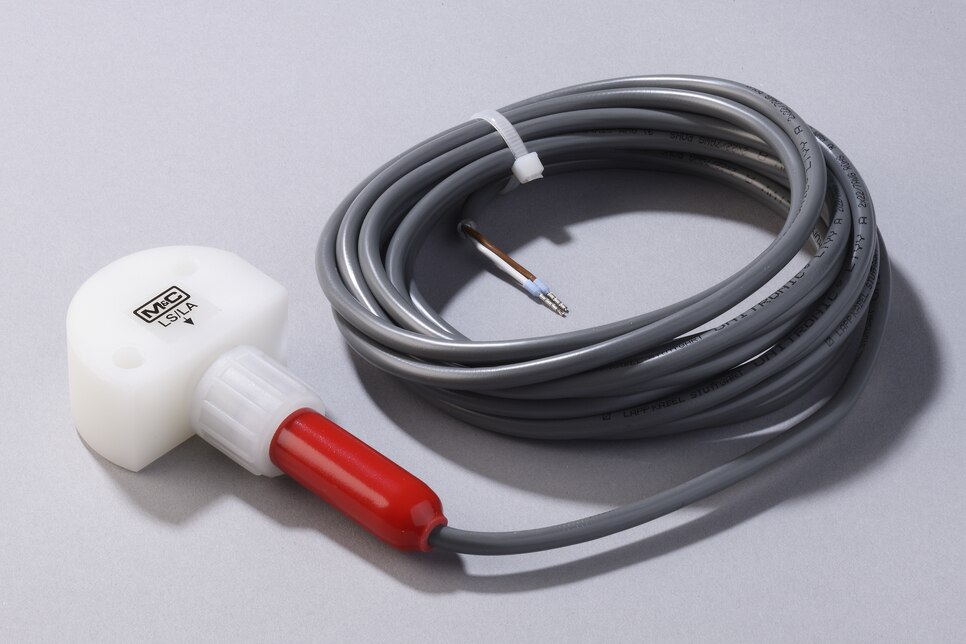

    Compact flow chamber LS/LA1S with liquid alarm sensor type LA1S for conductive media with 4 m connecting cable, material: PVDF, glass, platinum, without electronic controller
