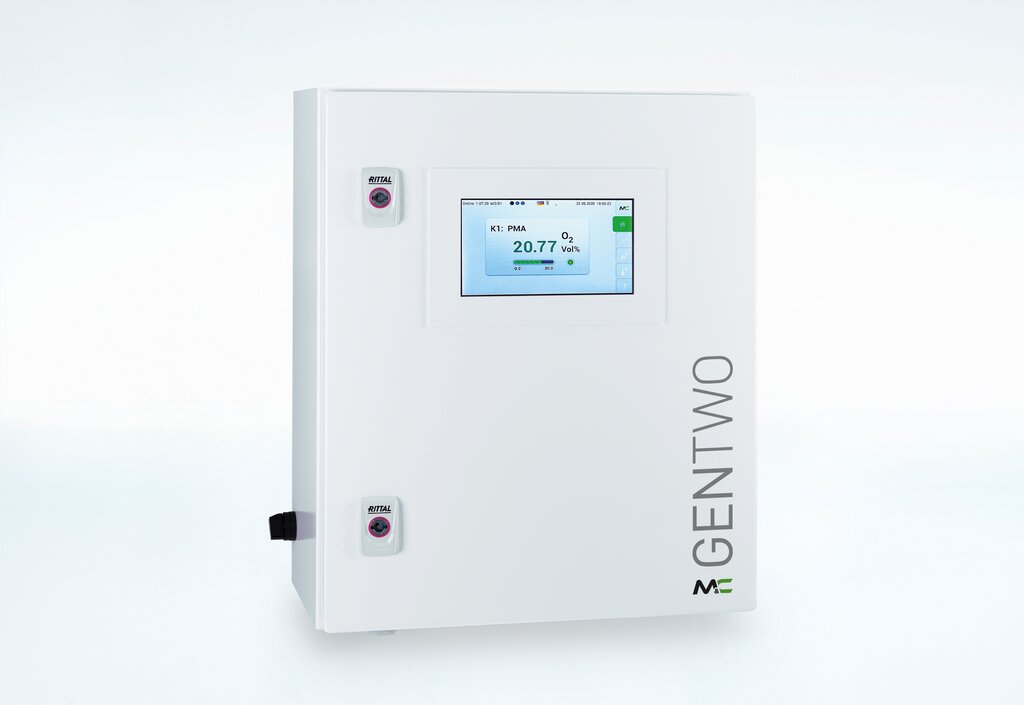

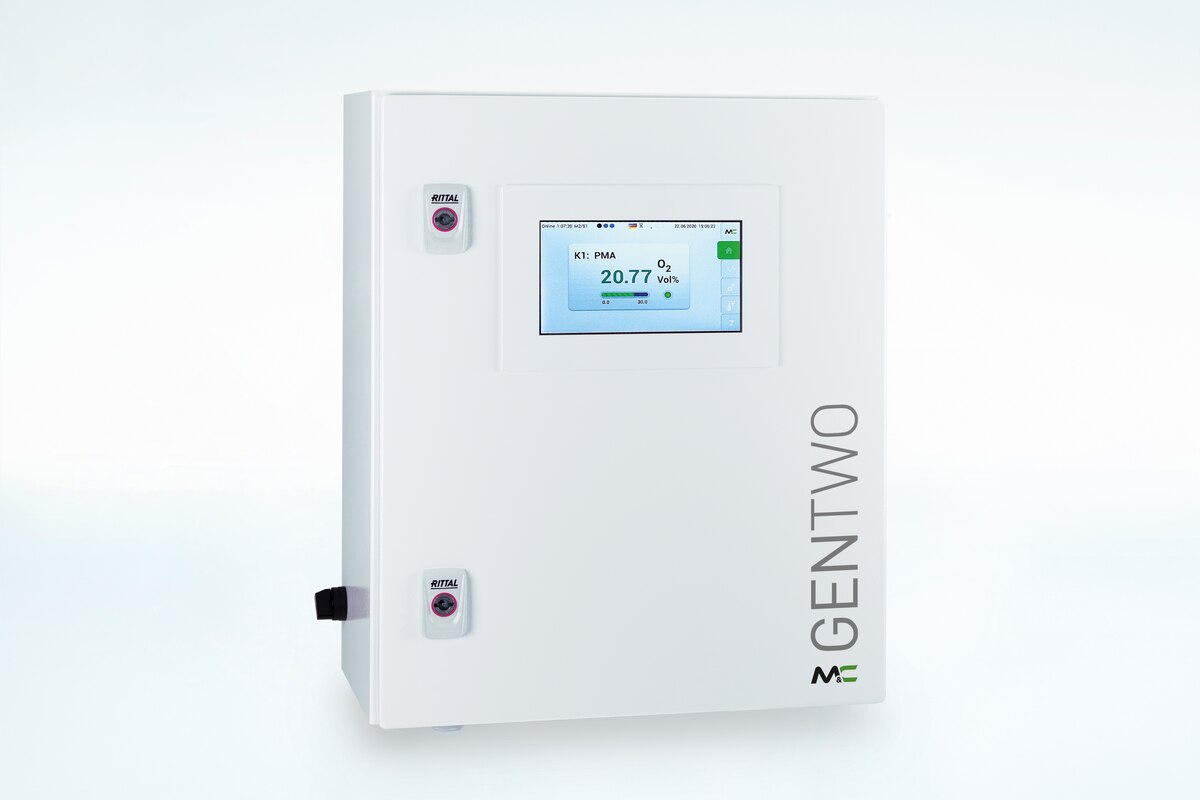

GenTwo Oxygen Analyzer PMA1000 V2.4

Part No.: 08A2045

Product features

  • Modular oxygen analyzer in robust wall-mount housing with IP54
  • Stainless steel gas path tubing with corrosion-resistant pressure sensors
  • Visualization of measured values of one year directly on the analyzer
  • Innovative operation via 7" touch color screen
  • With pressure compensation in the pressure range from 0.8 to 1.2 bar abs.
  • Four O2 measuring ranges, two of those are user-programmable, two relay outputs for measuring range feedback
  • Electrically isolated analog signal outputs: 0–20 mA/4–20 mA
  • Modbus TCP/IP and AK protocol TCP/IP
  • Ethernet/USB interface
  • Remote operation via VNC® viewer
  • Two programmable limit values with associated relay outputs
  • Automated calibration with driver output optionally
  • Chlorine- or solvent-resistant oxygen measuring cell as an option

Product information & downloads

Manual
Data sheet
CE Certificate
Unit calculator

Barometric adjustment of the operating altitude of O₂ analyzers without pressure compensation

Enter the planned operating altitude in the field. Set the analyzer to the calculated O2 vol% value at 1013 mbar (altitude = 0 m) in air to measure at the planned operating altitude without barometric error.

Result: 22,9378 [vol%] need to be set to measure at the planned altitude without barometric error.*

*Air with standard pressure 1013 mbar = 20.93 vol% O₂

Pressure drop and delay time

Enter your values in fields 1 to 3.

1

2

3

Result: 3,39 Delay time approx. in [s]*

* Single change of gas, for 90 % response time approx. 3 changes of sample volume are required.

Calculation of the pressureless 100 % H₂O saturation

Enter the required H₂O dew point (°C).
The calculation only provides sufficiently accurate values in the temperature range between -20 °C and +90 °C.

Pressure units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Temperature units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Length units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Area units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Volume units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Weight units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Energy units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow rate

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Flow velocity

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

Performance units

Enter a value to be converted in the respective field. All other fields will show the converted value immediately.

  • Overview

    Our GenTwo PMA1000 V2.4 is designed for continuous measurement of oxygen concentration in gas mixtures. The paramagnetic oxygen measuring cells used are characterized by excellent linearity as well as high long-term stability and are largely cross-sensitivity-free due to the measuring method used.
    Through software parameterization and the installation of available options, each analyzer can be easily adapted to your application-specific requirements.

  • Applications

    The GenTwo PMA1000 V2.4 can be used in a wide range of applications in non-hazardous environments. Typical applications include combustion control, process optimization, inertization monitoring, fermentation processes.

  • Description
    GenTwo oxygen analyzer PMA1000 V2.4, wall‑mount housing, gas paths: SS tubing, gas connections: 1/8" NPT f Swagelok®. Microprocessor‑controlled HMI with 7" color touch screen control panel, equipped with 1 x PMA2 O2 transmitter, thermostatted to 55 °C, four linear measuring ranges 0‑1 to 100 vol% O2, 2 of them freely programmable, suppressed zero possible, process pressure compensation from 0.8‑1.2 bar abs. Integrated flow measurement and monitoring can be switched on/off, analog output: 1 x 0/4‑20 mA, max. 500 ohms, galvanically isolated, digital outputs: 4 x relays (2 x exceeding of operational limits, 2 x measuring range feedback), status relay outputs via potential‑free change‑over contacts: device status, CAL mode, pump I/O, CAL error, interfaces: Ethernet, USB, Modbus TCP, AK protocol TCP. Dimensions (W x H x D): 400 x 566 x 218 mm, power supply: 100‑240 V, 50‑60 Hz
