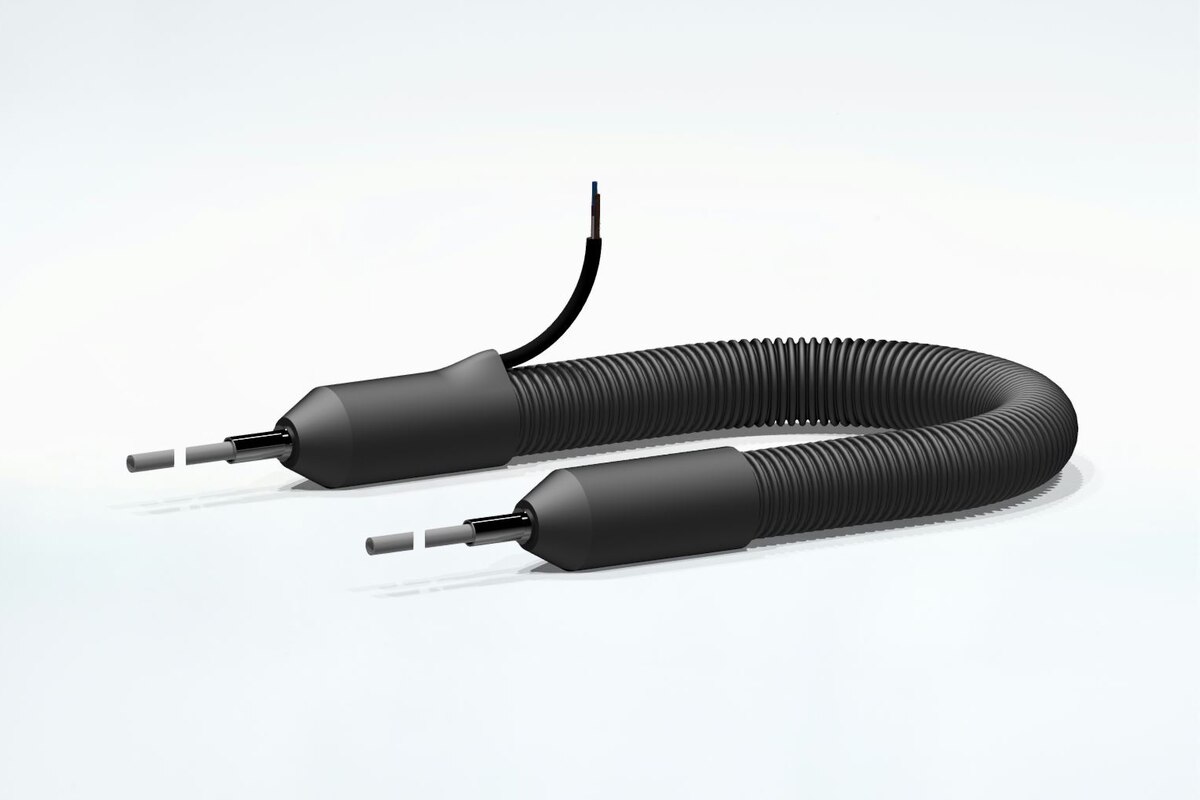

Heated Sample Line 3M4/6EX-W

Part No.: 03B3510W

Product features

  • Electrically heated sample line completely assembled according to your specifications
  • Approval according to ATEX for mounting in explosion zones 1, 2, 21 and 22
  • With 2 explosion-proof PT100, intrinsically safe 2GD according to ATEX
  • Inner tube is non-replaceable
  • Operating temperature: max. +200 °C [+392 °F]
  • Available up to a length of 30 m (sold by the meter)
  • Inner tube made of PTFE with Ø DN 4/6
  • Outer jacket is a black corrugated PA hose
  • Operating pressure: max. 5 bar g
  • Power: 230 V supplied by external explosion-proof temperature controller, 115 V (up to a length of 13 m) available as option
  • Optionally: connection fitting type D/EX with 4 electrical cables, 1.5 m long; explosion-proof set consisting of 1 temperature controller, 1 temperature limiter and 1 control panel to program both devices; end fitting type Z/EX
